General
VHF:144-148MHZ, UHF 420-450HZ (TX/RX)
Memory channels Up to 99 channels
Frequency Stability ±2.5ppm
Operating Voltage DC 7.4V
Battery Capacity 2000mAh
Antenna Impedance 50Ω
Operating Temperature -20 to +60 ‘C
Supply voltage Rechargeable Lithium-lon mAh 7.4V/2000
Mode of operation Simple or semi-duplex
Dimension(W x H x D) 116.2 x 57.9 x 35.7 mm
Weight 210g(including battery, antenna)

Transmitter
Output power 5W/1W
Modulation Mode F3E
Maximum deviation <±5kHz(Wide)/<±2.5kHz(Narrow)
Spurious Radiation <7.5μW
Adjacent Ch. power ≤-65dB/≤-60dB


Receiver
Sensitivity 0.2 μ v (at 12 Db SINAD)
Intermediation 65dB
Audio output 1W
Adjacent channel selectivity 65dB
Spurious response 65dB
Receiving current ≤380mA

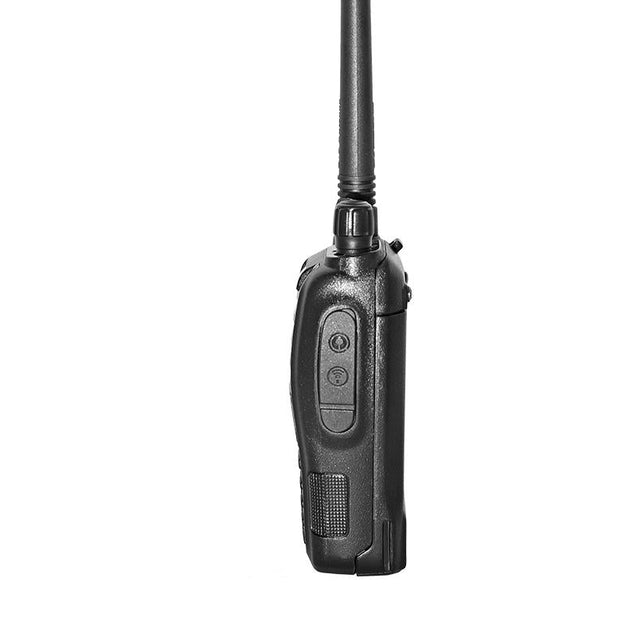

• Walkie talkie
• Li-Ion battery
• Belt Clip
• User's Manual
• Charger
