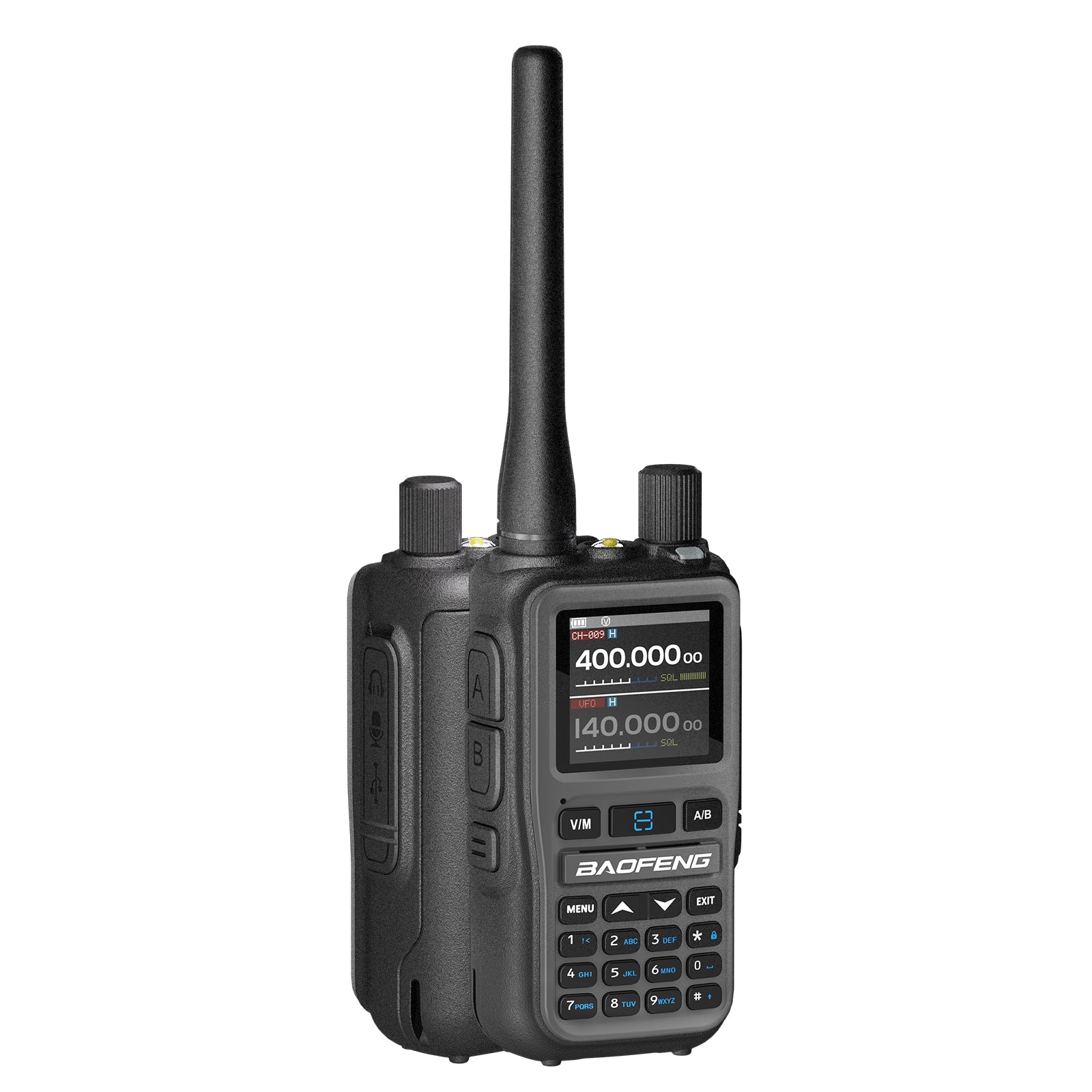

The Baofeng UV-5R Mini is a compact yet powerful dual-band radio featuring APP programming, one-key frequency copy, 999-channel storage, and multi-band transmit & receive. With USB-C charging and long range, it’s ideal for outdoor, emergency, and professional use.

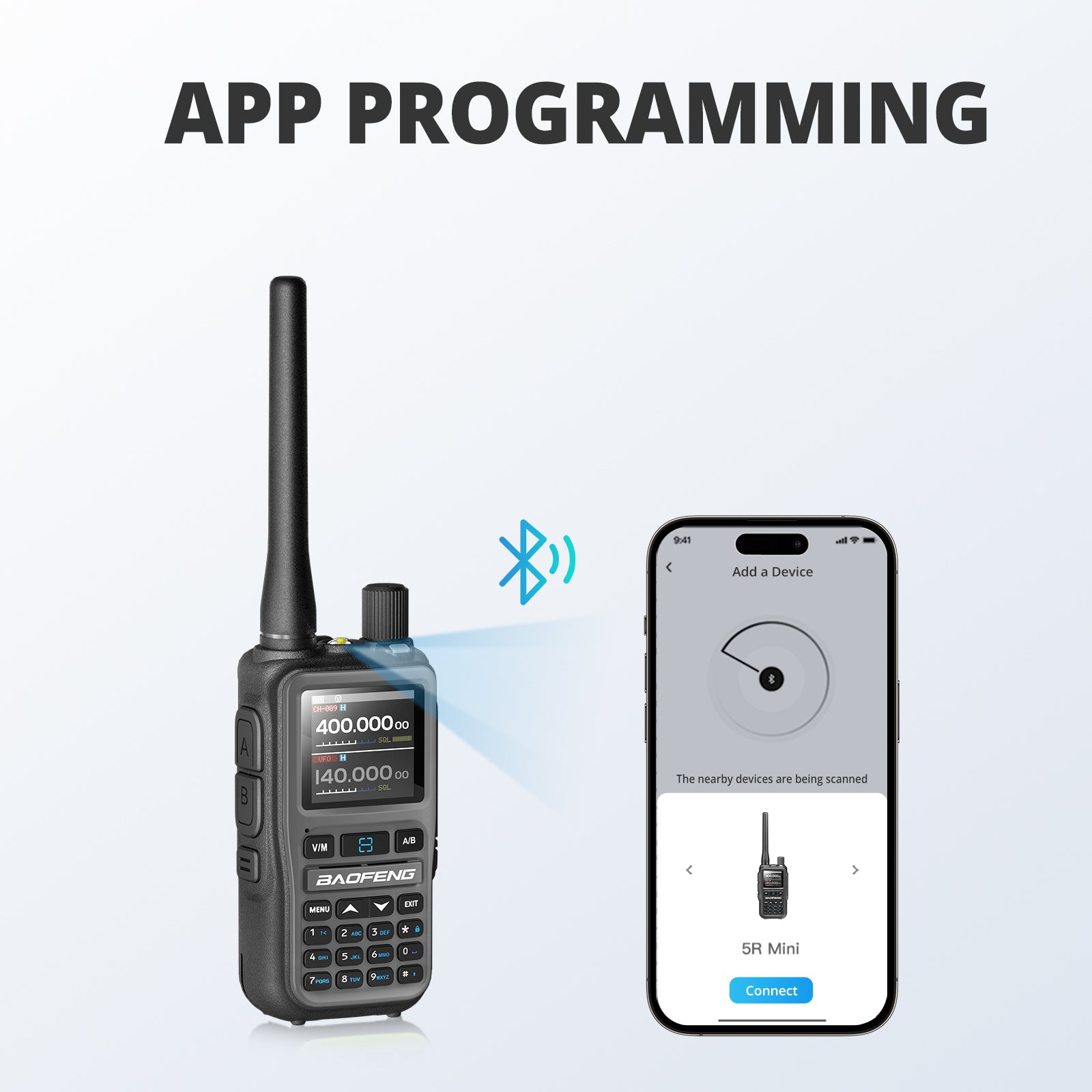

APP Programming
Configure frequencies, CTCSS/DCS, and power settings via Bluetooth APP in minutes, no PC required.

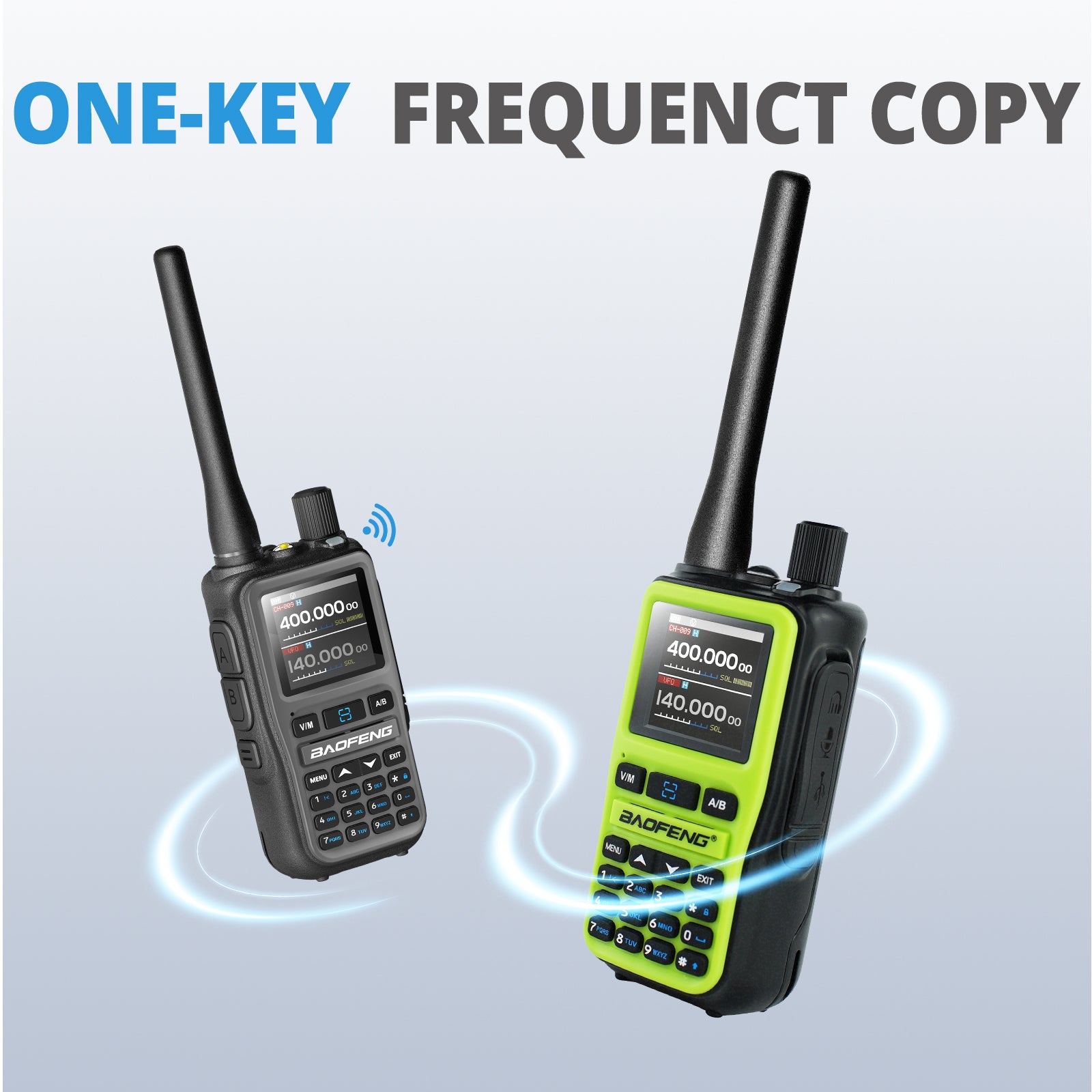

One-key frequencycopy
Instantly duplicate channel settings with a single button for fast deployment.

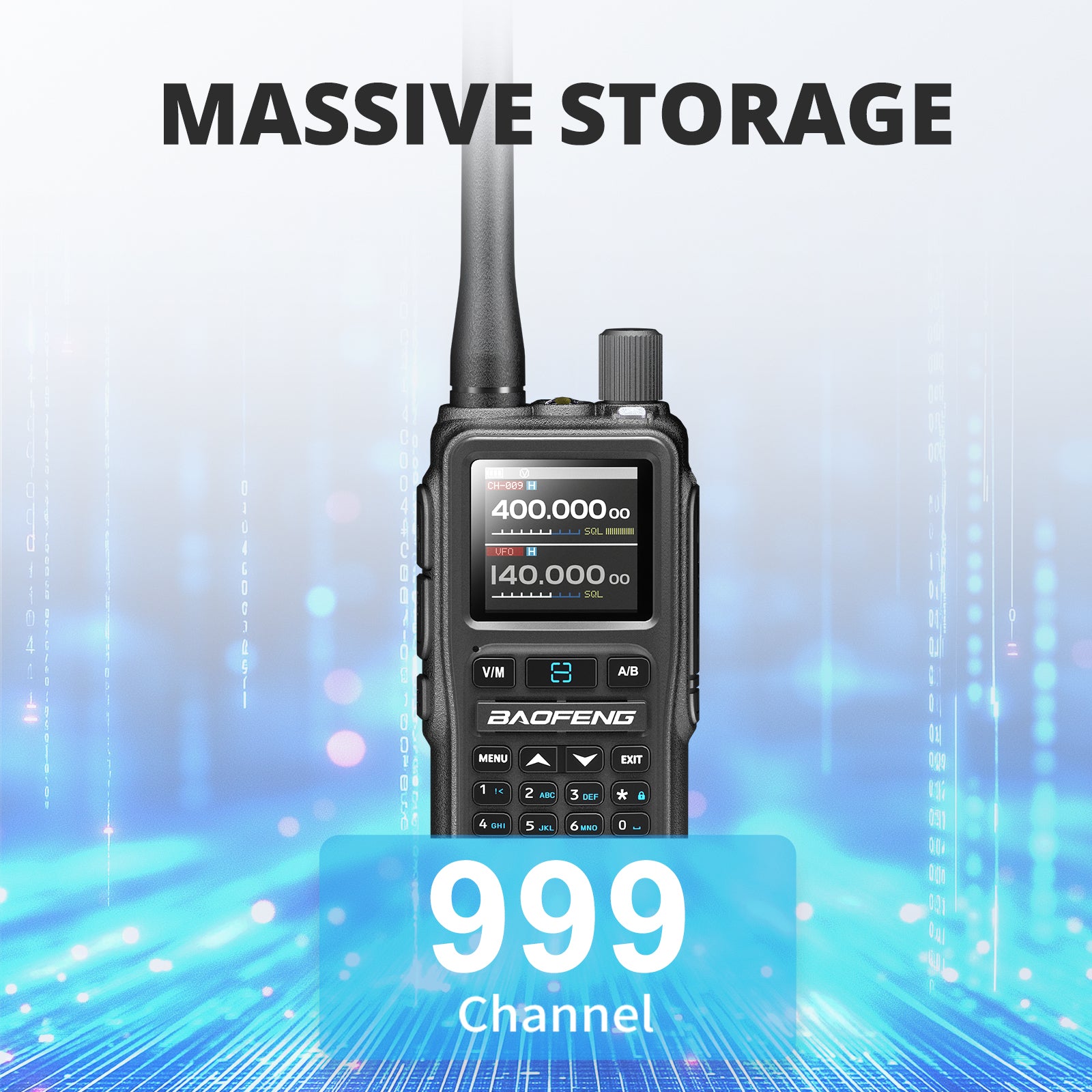

999 Channels Storage
Store up to 999 channels with independent frequency, code, and power options.

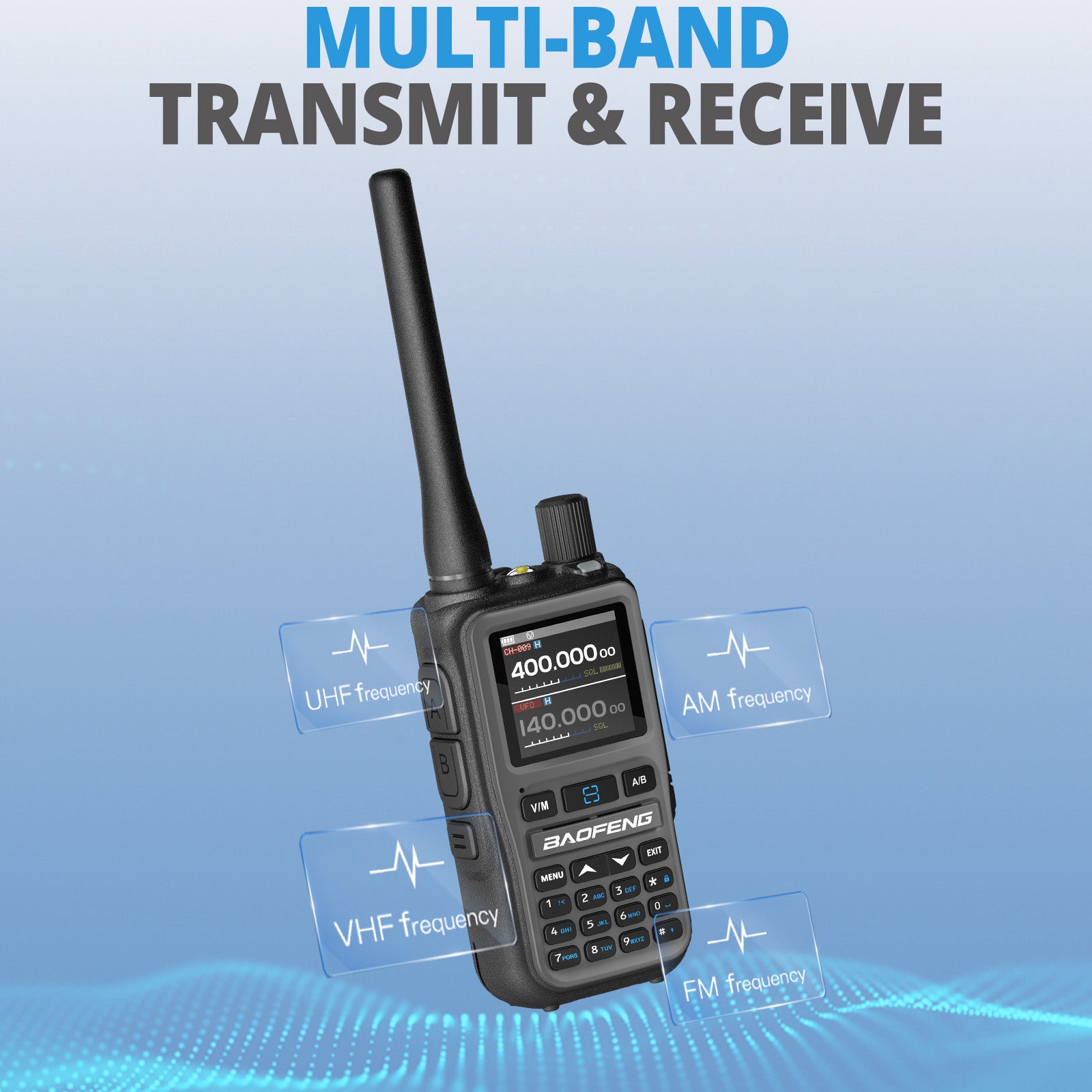

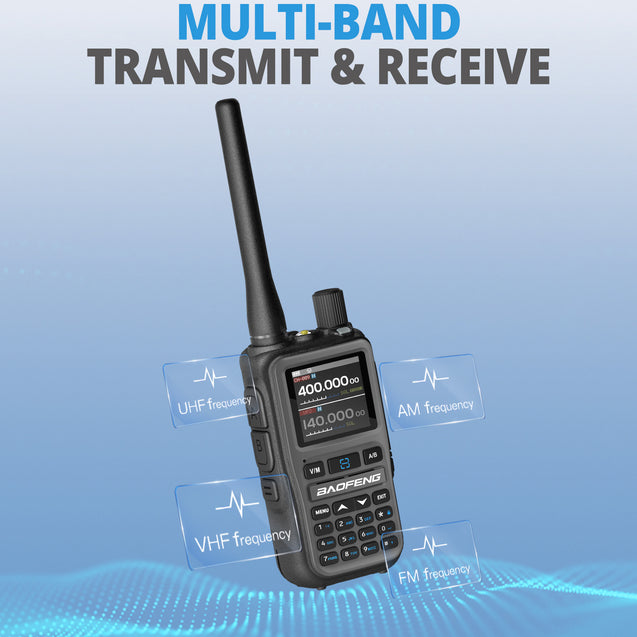

MULTI-BAND TRANSMIT & RECEIVE
Monitor and communicate across VHF/UHF bands, supporting repeater offsets and extended range.
Features:
Dual Watch
APP Programming
Type-C Charging

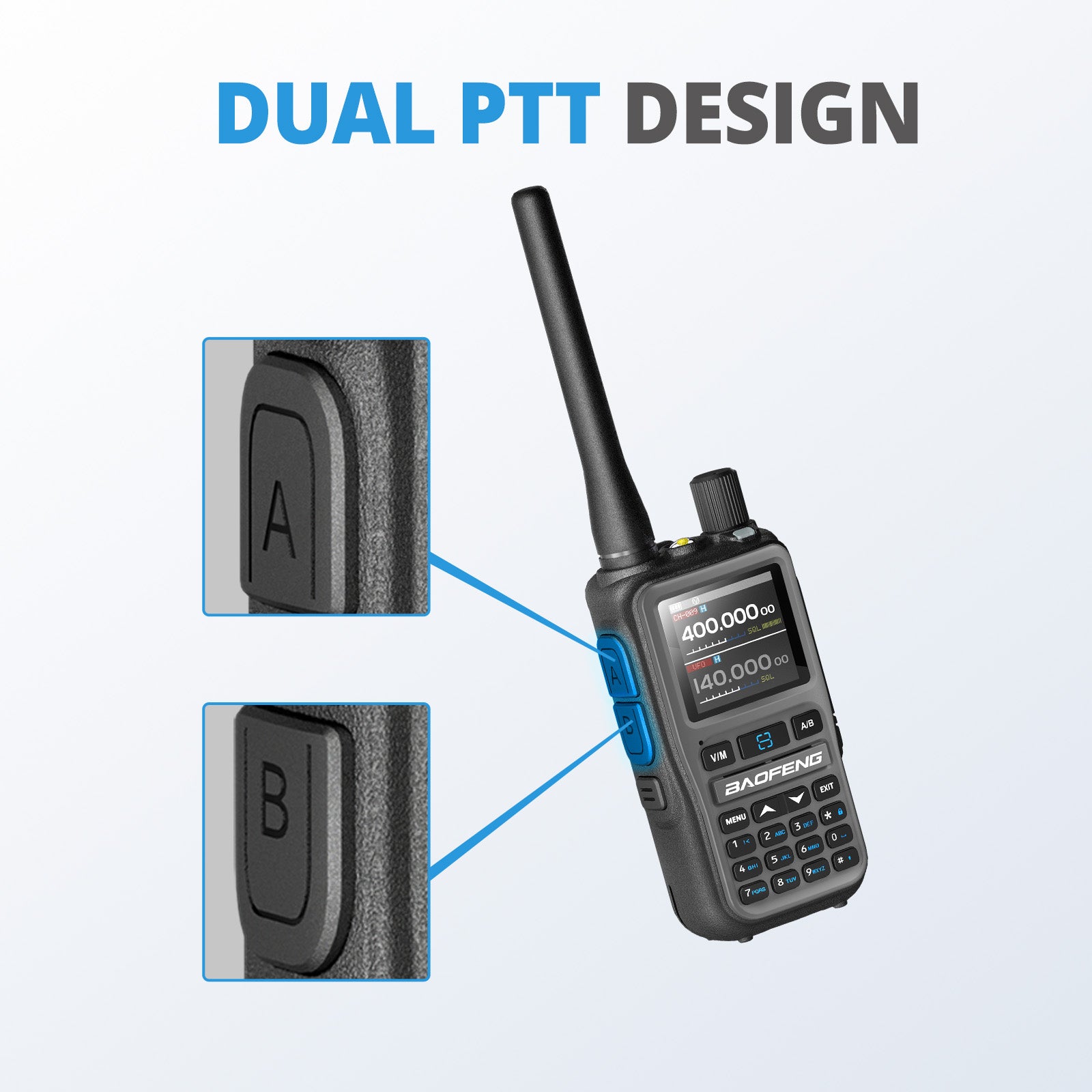

Dual PTT
Frequency Copy
High-Low power
Scanning
VOX
Built-in LED Flashlight
SOS
Specifications:
Receiver Frequency:
VHF 136-174MHz, UHF350-390MHz, 400-520MHz; AM: 108-136 MHz; FM: 65-108 MHz
Transmission Frequency:
136-174 MHz / 400-480 MHz

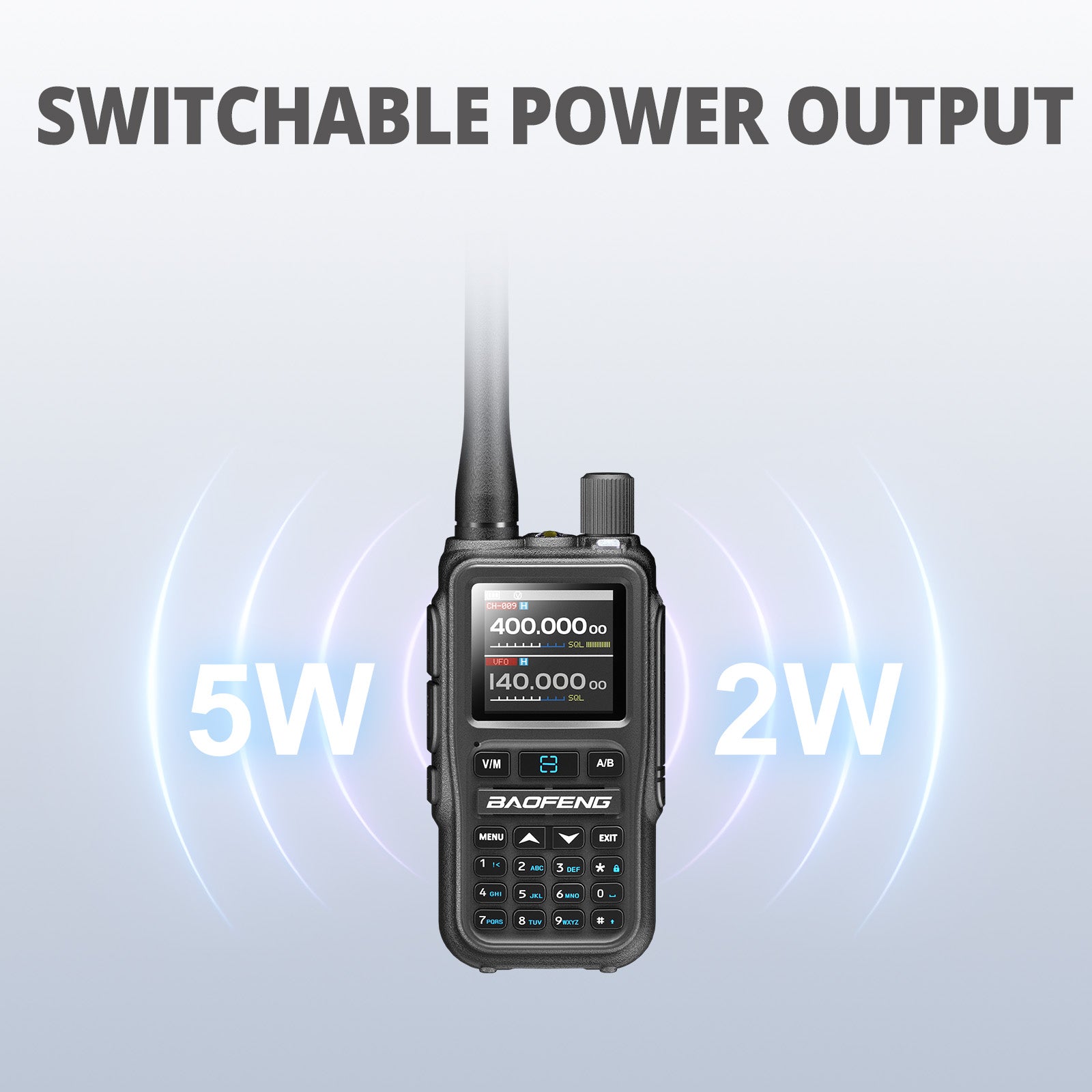

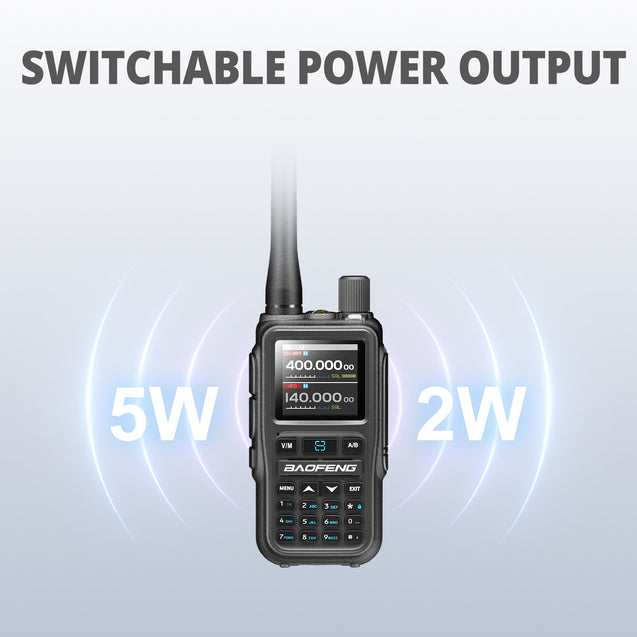

Output Power: High: 5W / Low: 2W
Memory Channels: 999
Channel Spacing: 25KHz (Wide) / 12.5KHz (Narrow)
Operation Voltage: DC 7.4 V ±10% (2200mAh battery)
Operating Temperature: -10°C to +55°C

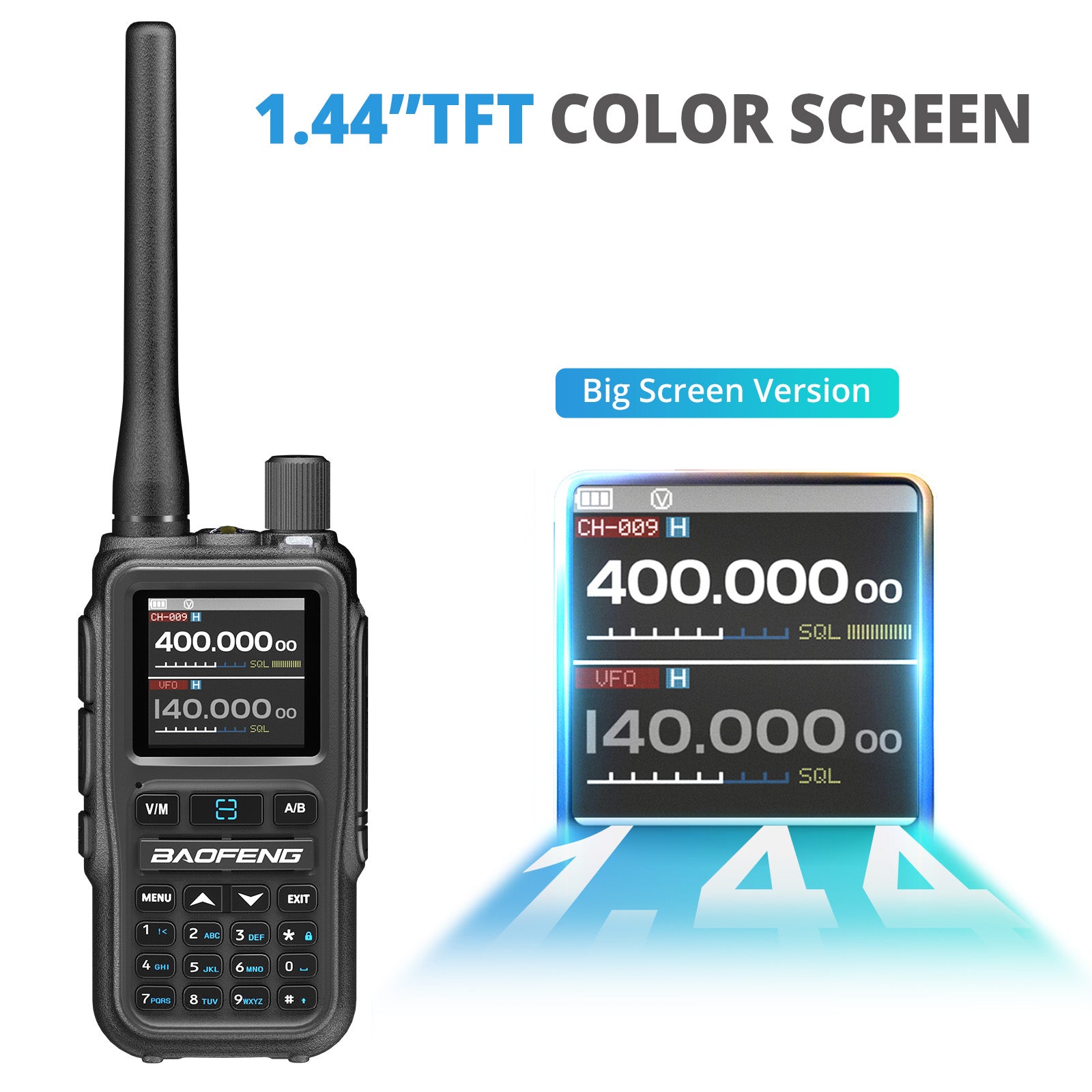

Color screen: 1.44" TFT
Size: 4.21 × 2.05 × 1.46 inches / 107 × 52 × 37mm (No antenna)
Weight: 7.05 oz / 200g (Battery included)
Transmission current: ≤1600mA
Receive Sensitivity: 0.25μV (12dB SINAD)
Rated Audio Power Output: 1W @16 ohms
Receive current: ≤380mA
Connection for accessories: 2 pin Kenwood jack
Antenna impedance: 50 Ohm
QA:
Q: Where can I download the CPS or app?
A: You can find out them from download area .If you are using an iPhone, please search for and download "Radio Frequency Programmer" from the App Store.
Q: What's the difference between the GT-5R Mini and UV-5R Mini?
A: There is no functional difference between the two models; they are simply named differently depending on the region where they are sold.

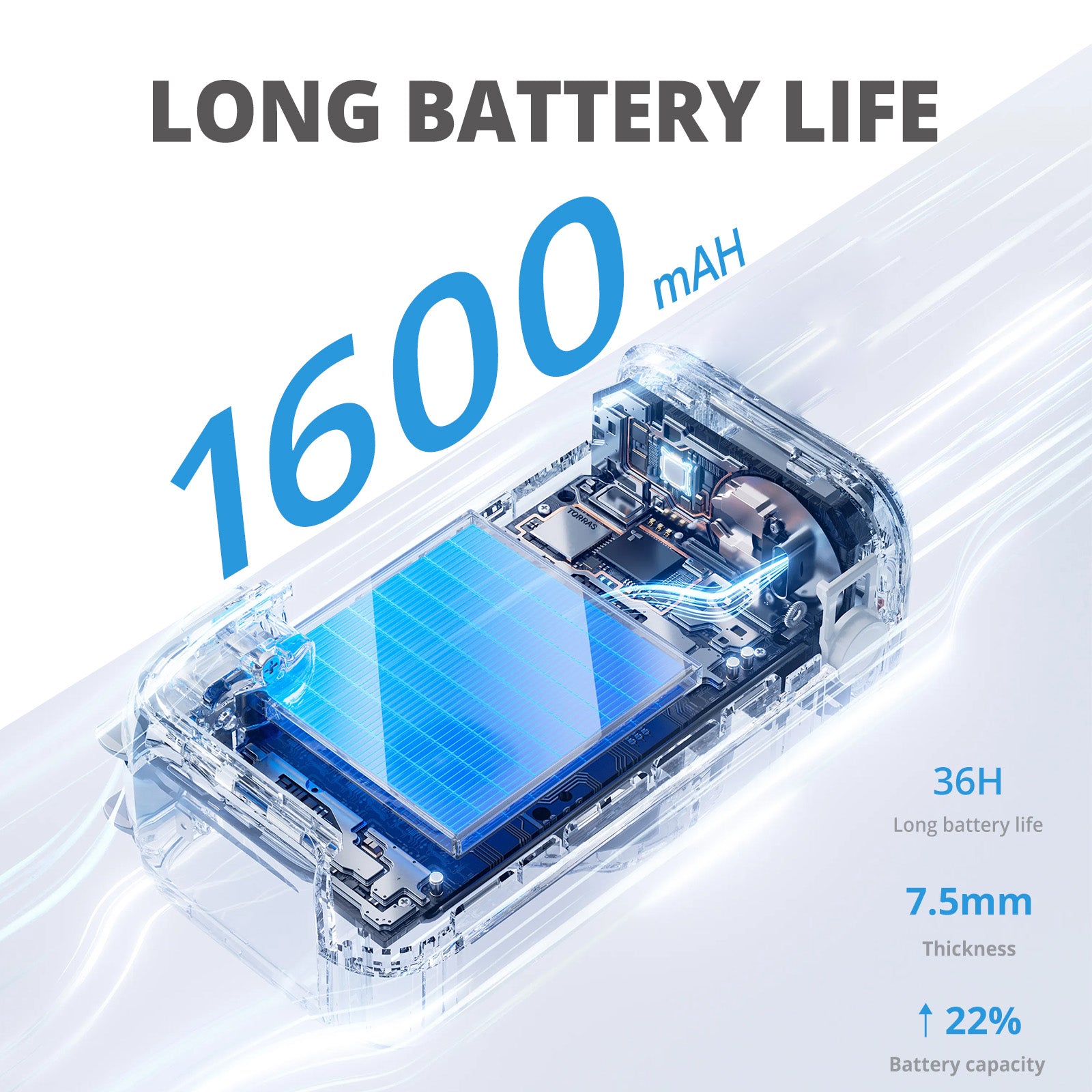

Q: How long does the UV-5R Mini battery last?
A: The UV-5R Mini is equipped with a next-generation A+ high-polymer battery, providing up to 16 hours of standby time.
What’s in the box?

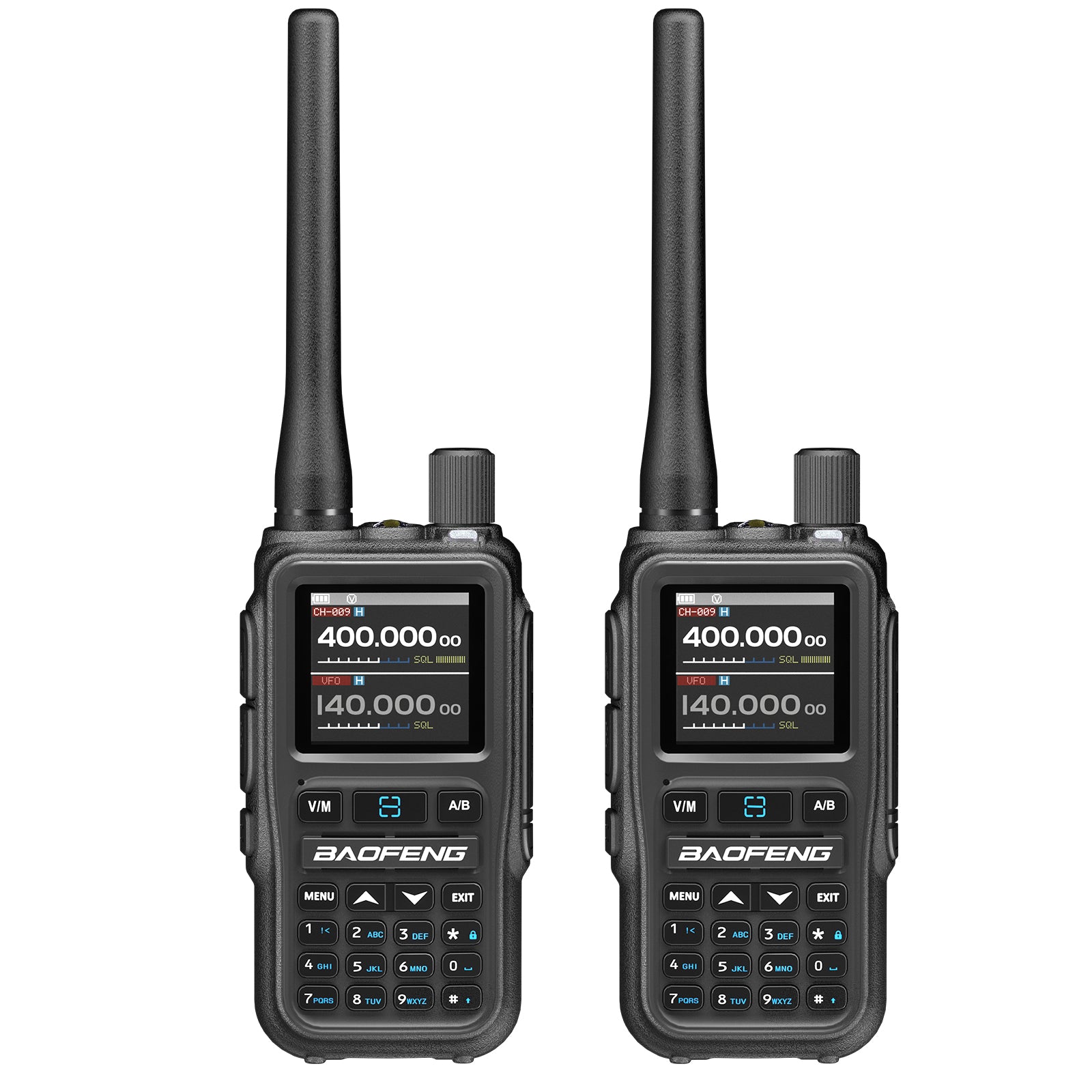

2 x 5R Mini Radio
2 x 1600mAh Battery
2 x Antenne
2 x Headset
2 x USB-C Cable
2 x AC Adapter
2 x Lanyard
2 x Belt Clip
1 x User Manual
