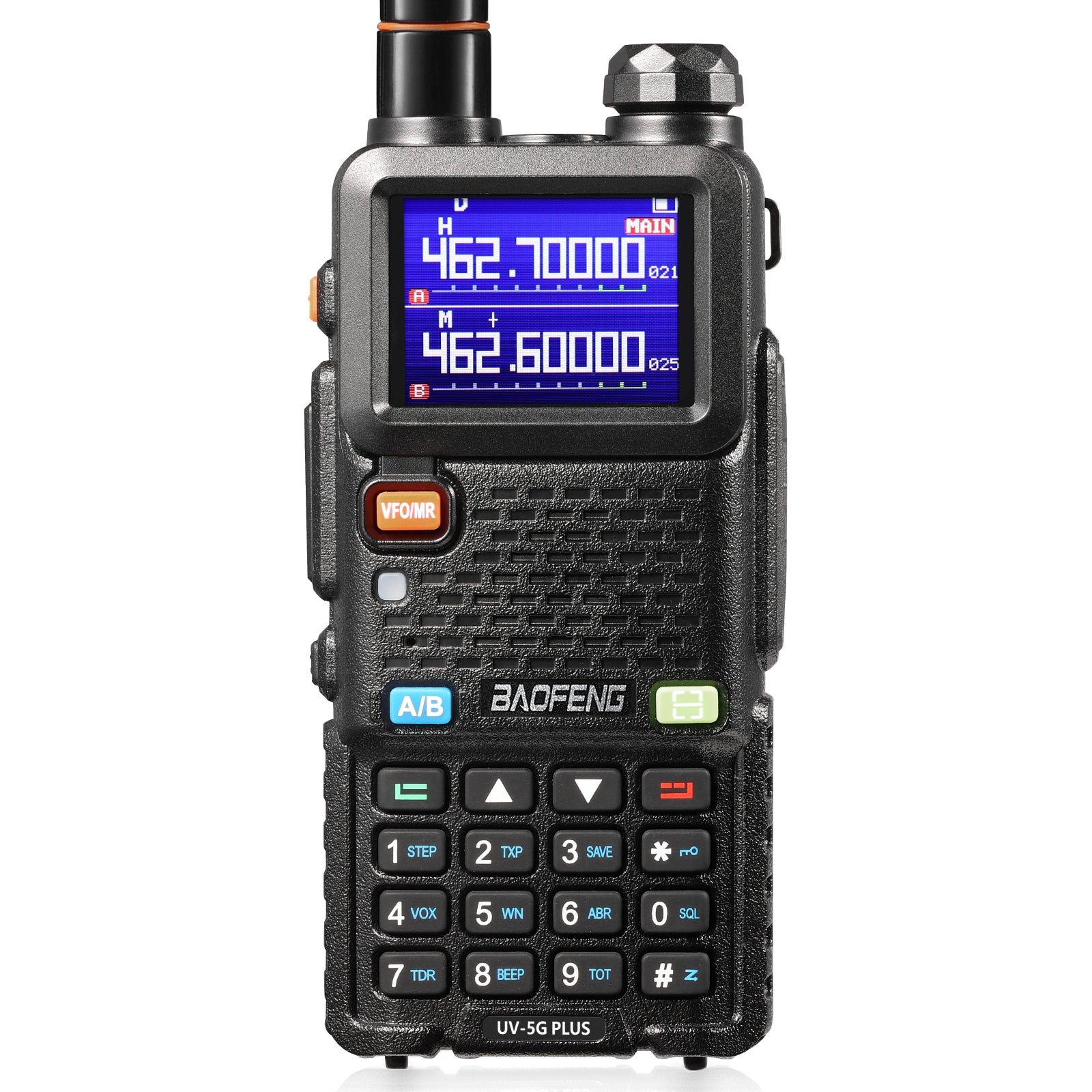

Front view of the UV-5G Plus
SKU: 715-BF-UV5G-PLUS-A
In stock
Quantity

[DOWNLOAD] User Manual and Programming Software

Real 5W Power Output: The UV-5G PLUS is equipped with a real 5-watt power output, ensuring a strong and reliable signal for communication over various distances. FCC ID: 2AJGM-5GPLUS. A GMRS license is required.

Upgraded Antenna: The UV-5G PLUS features a 15.5” antenna with a higher gain of 2.15 dBi. This enhanced antenna design improves signal reception and transmission, and it maintains a low SWR (Standing Wave Ratio) of less than 1.2, contributing to optimal performance.

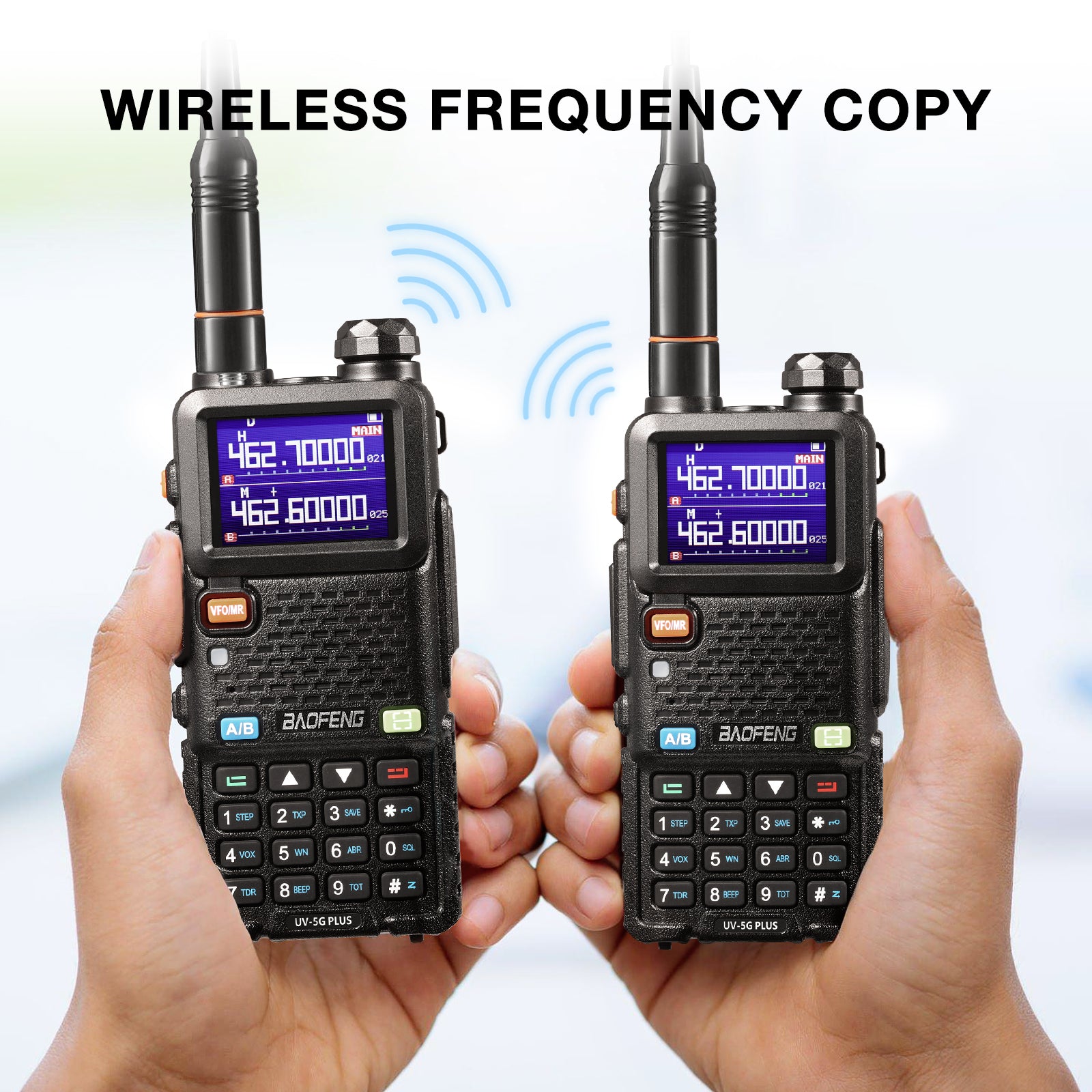

Frequency Copy Capability: The frequency copy feature simplifies the process of programming two-way radio frequency settings, allowing for seamless cloning of frequency configurations from one GMRS radio to another nearby.Besides, it is compatible with Chirp[Choose:UV-5G Plus]

Long Communication Distance: With its upgraded antenna, this handheld radio can extend its talking range to a remarkable 7 miles. This makes it perfect for outdoor adventures and emergencies, ensuring that you can communicate clearly and reliably even across significant distances.

Rich Features: The UV-5G PLUS has rich user-friendly features, including a color screen, 10 NOAA weather band receiving, frequency copy capability, a high-capacity 2500mAh battery, 999 channels, and the convenience of a USB-C charging port, offering flexibility for various communication needs.

Details
What's in the Box
Compare Chart
Review
Baofeng UV-5G Plus radio total functions banner

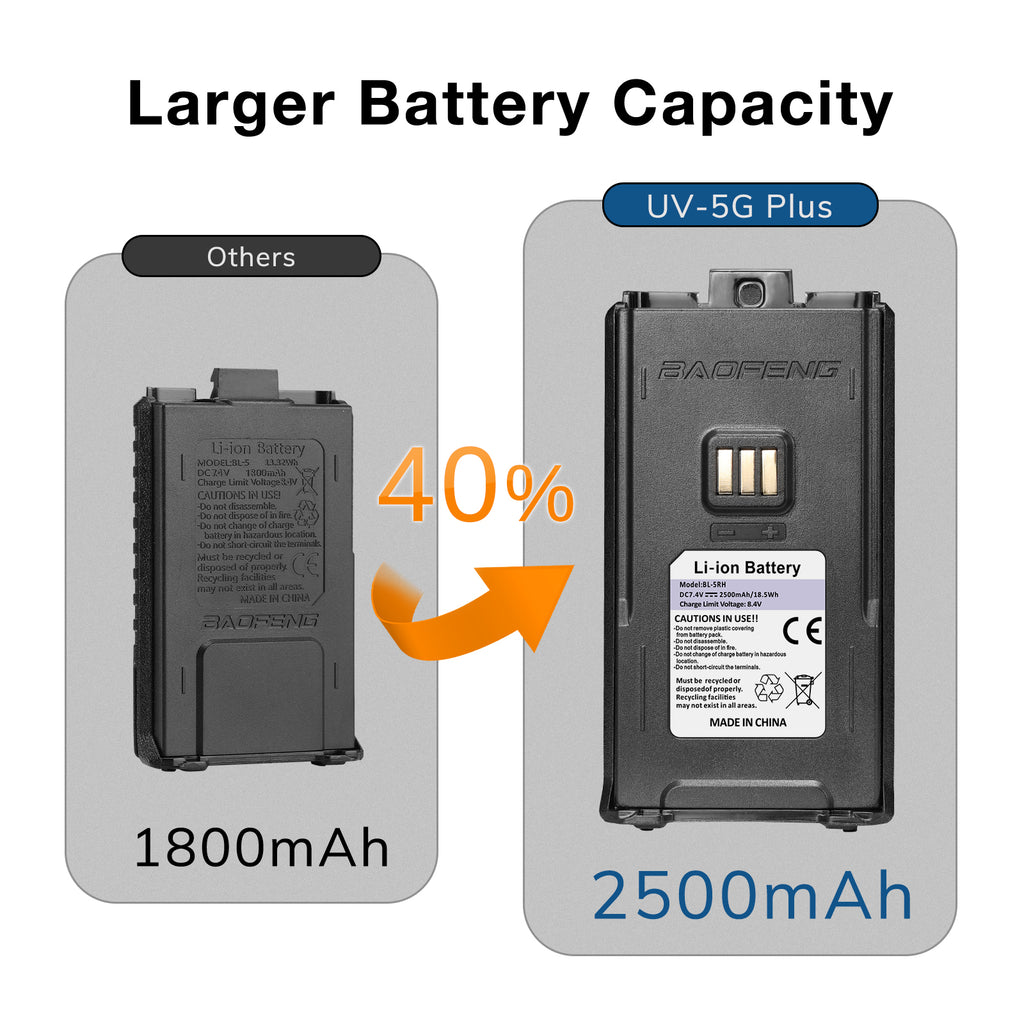

Baofeng UV-5G Plus| 2500mAh Big Capacity Battery

2500mAh Big Capacity Battery

The UV-5G PLUS offers a 40% increase from UV-5G in battery capacity, making it ideal for camping, hiking, and other outdoor activities. You can now enjoy an extended usage time without worrying about the battery running out quickly.

Baofeng UV-5G Plus| Large 1.9'' LCD Screen

Large 1.9'' LCD Screen

The device features a 1.9-inch LCD screen that displays necessary information including frequency, channel number, and current transmit power mode. It also comes with a dual watch and dual display for easy monitoring and operation.

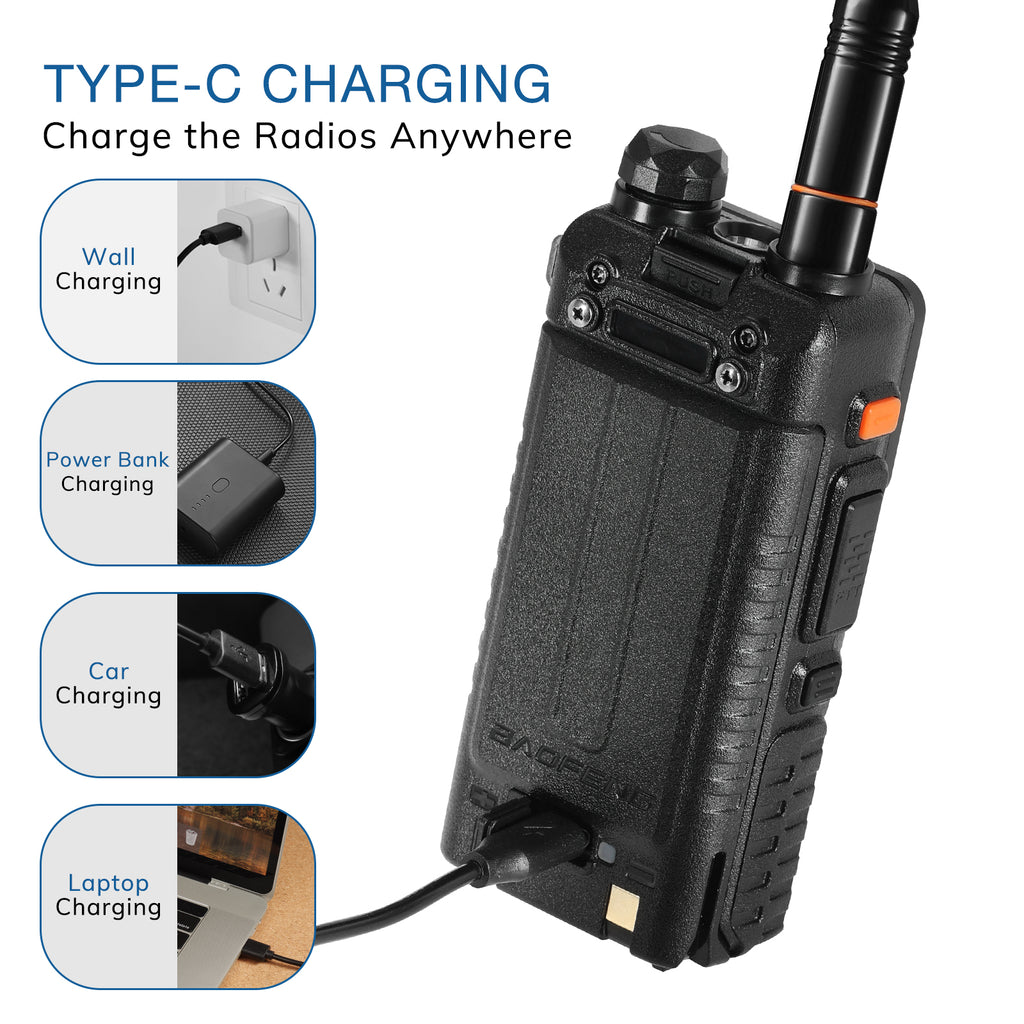

Baofeng UV-5G Plus| Versatile Charging Options

Versatile Charging Options

Equipped with a Type-C charging port, this GMRS radio can be recharged from anywhere and anytime using various power sources such as a wall socket, power bank, car charger, or laptop, ensuring continuous communication.

Baofeng UV-5G Plus| NOAA function

Stay Weather-Ready

Stay safe during extreme weather with 10 NOAA Channels. Get emergency warnings for hurricanes, tornadoes, floods, and more. Be prepared and stay informed.

Baofeng UV-5G Plus| different with the UV-5G

Main Features:

  • Up to 999 memory channels
  • DTMF encoder and DTMF manual dial
  • VOX
  • Alarm function
  • LED flashlight
  • NOAA weather reception
  • Broadcast FM radio receiver 76-108 MHz
  • Dual watch / Dual reception/ Dual-band handheld transceiver
  • Display illumination programmable via keypad
  • Battery save function
  • Busy channel lock-out
  • Ten levels of squelch adjustment
  • Channel/Frequency Scan


Specifications:

  • Frequency Range: 136-173.99 & 400-519.99MHz (Scanning RX)
  • Memory Channel: 999 (CH 1-30 GMRS channel, CH 31-999 empty channels are fully modifiable for GMRS/VHF/UHF programming)
  • Operation Voltage: DC 7.4 V ±10%
  • Battery Capacity: 2500mAh(Li-Ion)
  • Frequency Stability: ±2.5ppm
  • Operating Temperature: -20℃ to +50℃
  • Mode of Operation: Simplex
  • Antenna Impedance: 50ohm
  • RF Output Power: ≤5W (GMRS)
  • Transmission Current: ≤1500mA


    Standard Antenna:

  • Antenna Gain: 2.0 dBi
  • Antenna SWR: <1.2
  • Frequency: 155/462 MHz
  • Antenna Connector Type: SMA-Female

What's in the Box

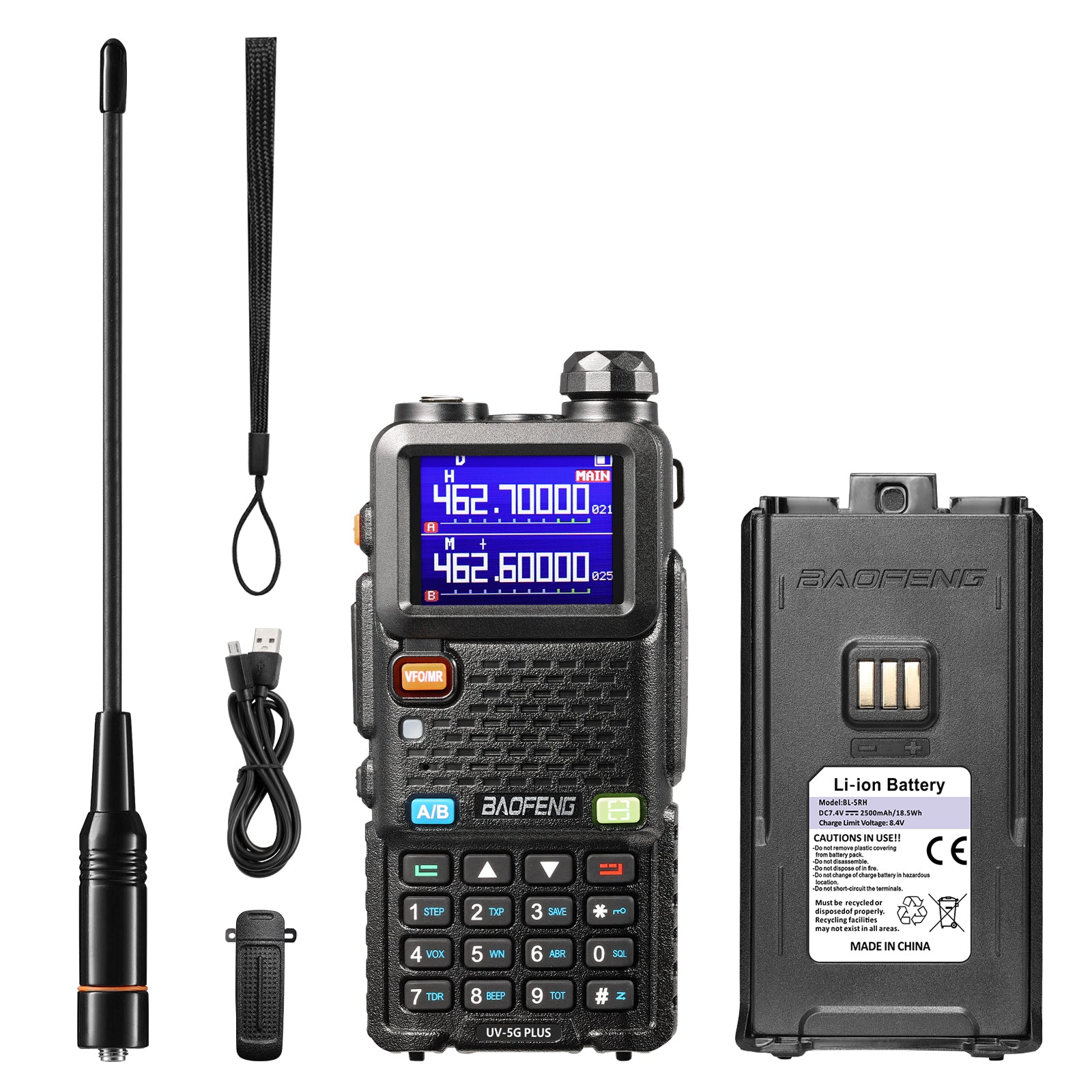

1 Pack:

  • 1 x UV-5G PLUS Two-way Radio
  • 1 x 2500 mAh Li-ion Battery
  • 1 x Belt Clip
  • 1 x Wrist Strap
  • 1 x 8" Standard High-gain Antenna
  • 1 x Type-C Charging Cable
  • 1 x User Manual

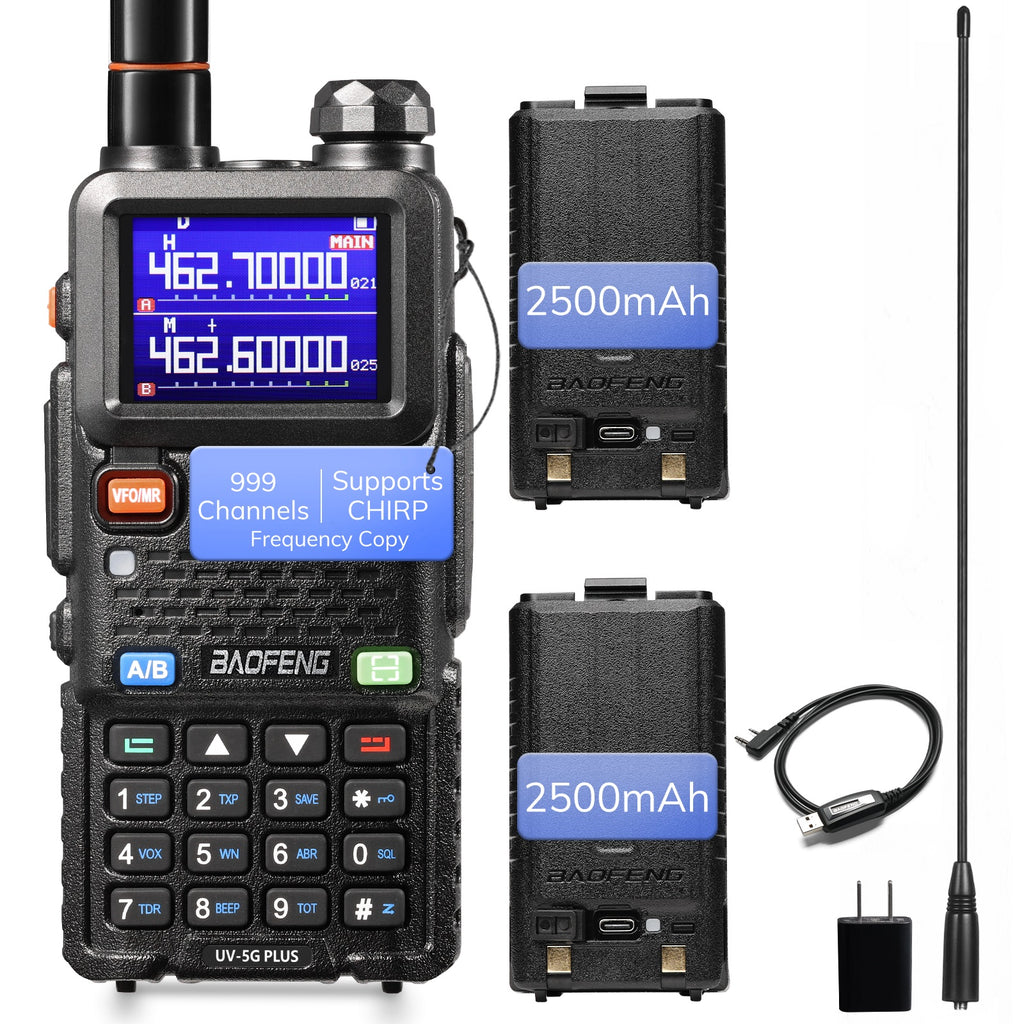

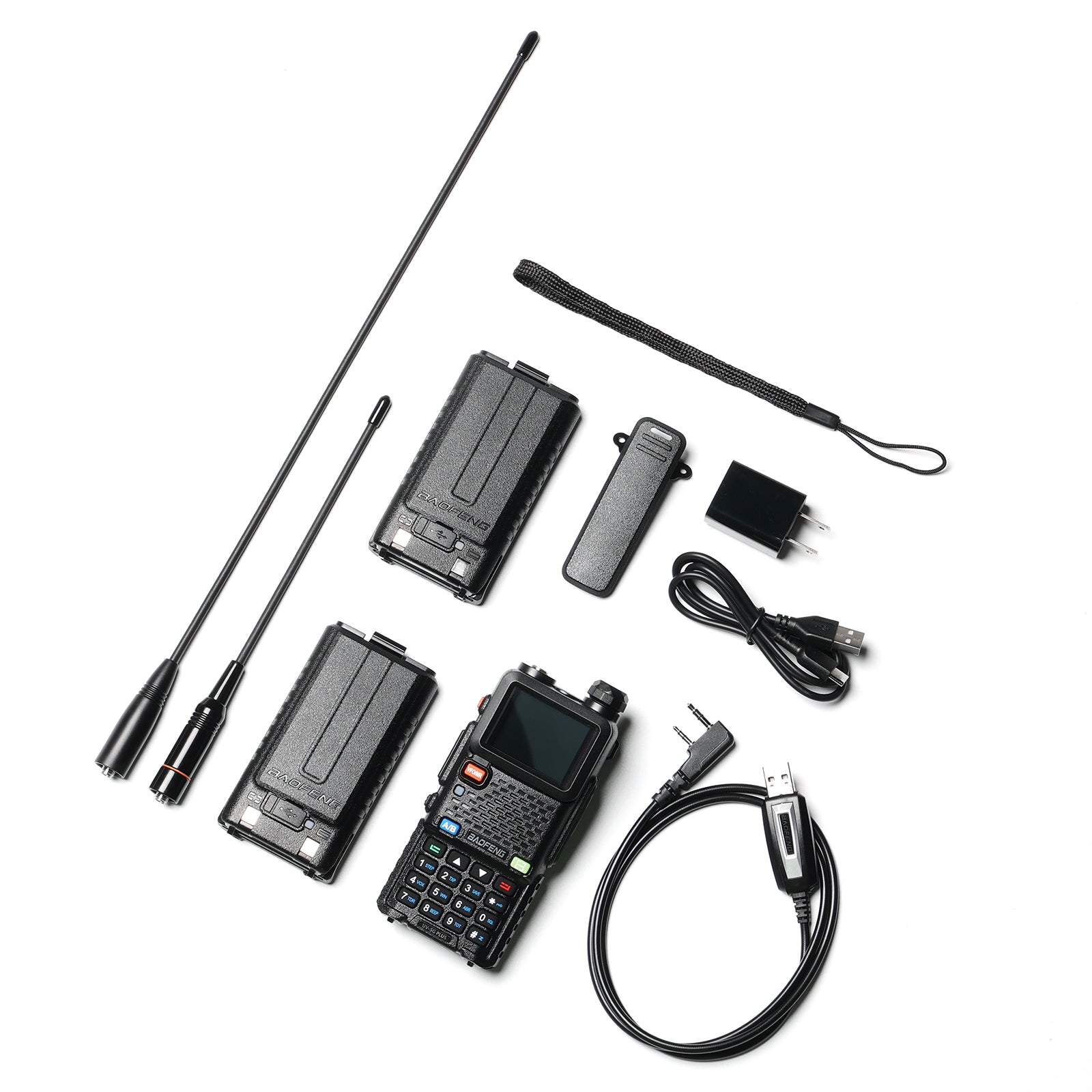

1 Pack Dual Battery Set:

  • 1 x UV-5G PLUS Two-way Radio
  • 2 x 2500 mAh Li-ion Battery
  • 1 x Programming cable
  • 1 x 15.5" Long Antenna
  • 1 x Belt Clip
  • 1 x Wrist Strap
  • 1 x Type-C Charging Cable
  • 1 x User Manual
  • 1 x 8" Standard High-gain Antenna

Compare Chart

Transmission Range
Receive Range
Power Output
Number of Channels
USB Charging
Battery Capacity
Support CHIRP
Antenna Type
GMRS
GMRS
136-174/400-520MHz
NOAA
FM 76-108 MHz
5W
999
Type-C
2500 mAh
Choose UV-5G Plus
SMA-Female
GMRS
GMRS
136-174/400-520MHz
NOAA
5W
128
×
1800 mAh
Choose UV-5X
SMA-Male
GMRS
GMRS
NOAA
3W
30
Type-C
1500 mAh
Choose G11S
SMA-Male
GMRS
GMRS
NOAA
2W/0.5W
22+8+8
Type-C
1500 mAh
×
SMA-Female
GMRS
GMRS
NOAA
5W
250
Type-C
1500 mAh
×
SMA-Female
GMRS
GMRS
FM 65-108 MHz
Airband: 108-136 MHz
136-174 MHz
220-260 MHz

350-390 MHz
400-520 MHz
NOAA
5W
128
×
1800mAh
Choose UV-5X
SMA-Female
GMRS
GMRS
136-174/400-520MHz
NOAA
FM 76-108 MHz
5W
128
×
1800 mAh
Choose UV-9G
SMA-Female
