DMR (Digital Mobile Radio) is quickly becoming the communication technology of choice for amateur radio enthusiasts and professional users alike. This guide provides a comprehensive introduction to DMR technology, covering basic concepts, setup and usage, and practical tips to help beginners quickly master this modern communication method.
What is DMR?
DMR is an open digital radio standard developed by the European Telecommunications Standards Institute (ETSI). It uses Time Division Multiple Access (TDMA) technology to enable two independent voice paths within a single 12.5kHz channel. Compared to analog radios, DMR offers advantages such as higher voice quality, greater spectrum efficiency, and richer functionality.
DMR Tier Standards
As a globally adopted digital radio standard, DMR's tiered architecture (Tier I/II/III) provides targeted solutions for different application scenarios. The DMR standard, developed by ETSI, follows a three-tier design:
- Tier I: License-free equipment (e.g., 446MHz PMR446), power ≤0.5W, no repeater functionality, suitable for personal recreational use

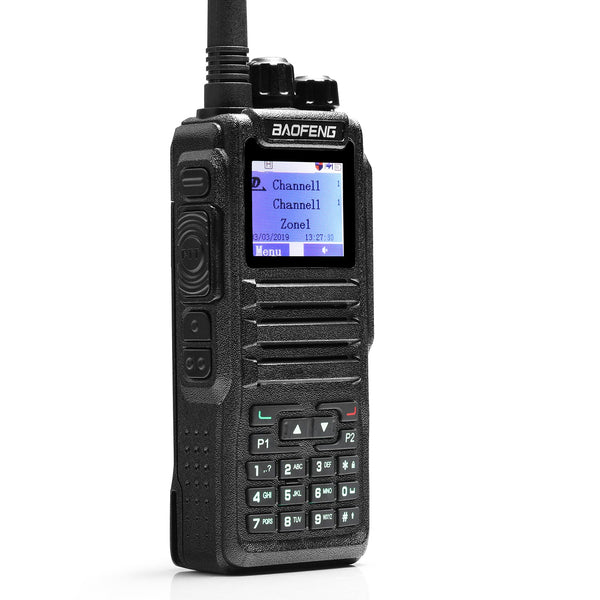

- Tier II: Licensed conventional communication, supports repeaters and IP data services, the mainstream choice for amateur radio, exemplified by devices like the DM-32UV and DM-1701
- Tier III: Trunking systems, primarily used for professional dispatch scenarios
Physical Layer Parameter Comparison
| Parameter | Tier I | Tier II | Tier III |
|---|---|---|---|
| Modulation | 4FSK | 4FSK | 4FSK |
| Data Rate | 4800bps | 9600bps | 9600bps |
| Frame Structure | No time slots | Dual-slot TDMA | Dual-slot TDMA |
| Channel Access | CSMA | Reservation/Contention | Centralized Control |
Amateur radio operators primarily use Tier II standard equipment, which is the focus of this guide.
Key Terminology
-
DMR ID - Your "digital ID":
7-digit unique identifier (e.g., 300XXXX);
Must be applied for free at RadioID.net[https://www.radioid.net].
-
Time Slot - Dual-lane communication:
TDMA divides a 12.5kHz channel into Slot 1 and Slot 2 for two independent communication paths;
Similar to dual lanes on a highway that don't interfere with each other.
-
Color Code - Digital equivalent of CTCSS:
Range 1-15, used to distinguish between different systems on the same frequency
Must match repeater settings for communication
-
Talkgroup - Chat rooms:
Logical communication groups (e.g., local group, worldwide group);
Group calls are pre-programmed radio user groups that allow simultaneous calling with a single button press, supporting instant group calls from dispatch applications to multiple users.
-
BrandMeister:
The world's largest DMR network system;
Connects repeaters worldwide into a unified network
DMR vs Analog Radios
Digital Mobile Radio (DMR) and traditional analog radios use different technological designs, each with unique advantages and suitable scenarios. Let's examine their core differences.
| Feature | DMR Digital Radio | Analog Radio |
|---|---|---|
| Signal Type | Digital signal (TDMA dual-slot) | Continuous analog signal (FM) |
| Voice Quality | Digital noise reduction, no background noise | Noticeable noise with weak signals |
| Spectrum Efficiency | One 12.5kHz channel supports 2 voice paths | One 12.5kHz channel supports 1 voice path |
| Battery Life | Only one slot active during transmission, 40% longer battery life | Continuous transmission drains battery faster |
| Communication Range | Similar range at same power, but more stable audio quality | Voice gradually degrades at edge of coverage |
| Network Capability | Can connect to DMR repeaters worldwide via IP networks | Generally limited to local analog repeaters |
| Data Transmission | Supports text messages, GPS location, etc. | Supports basic CTCSS/DCS tones |
| Security | Supports digital encryption | No encryption or basic analog encryption |
The core advantage of DMR lies in its dual-slot TDMA technology, which enables two simultaneous and independent calls within a single 12.5kHz channel, doubling the spectrum efficiency of analog systems.
Getting Started with DMR
- Obtain a DMR ID: Register at RadioID.net (requires amateur radio callsign)
- Install Programming Software: Download the manufacturer-specific CPS software
-
Basic Configuration:
- Enter your DMR ID and callsign
- Set local repeater parameters (frequency/color code/time slot)
- Import talkgroup lists
Frequently Asked Questions
Q1: Why can I hear transmissions but can't respond?
→ Check: Color code setting, time slot selection, and whether your DMR ID is programmed into the radio.
Q2: How can I tell if someone is online?
→ Check the user's last seen time on the BrandMeister website.
Q3: How do I know which time slot to use?
→ Local repeaters typically announce:
Slot 1: Local calls; Slot 2: Networked calls. Simple rule: Try Slot 1 first, then Slot 2 if that doesn't work.
Q4: Do digital signals travel farther than analog signals?
→ Actual coverage is similar, but digital signals cut out abruptly at the edge of coverage ("cliff effect"), while analog signals gradually degrade. Modern DMR systems address this through repeater network design.
* Why are there differences like this?
| Characteristic | Analog Signal | Digital Signal (DMR) |
|---|---|---|
| Signal Representation | Continuous waveform | Discrete data packets |
| Decoding Method | Direct waveform amplification | Requires complete packet reception for decoding |
| Edge-of-Coverage Behavior | Gradual degradation | All-or-nothing |
| Typical Experience | "Sound gets progressively noisier" | "Suddenly can't hear anything" |
Q5: Can DMR radios communicate with analog radios?
→ Requires dual-mode equipment (e.g., DM-32UV); must use same frequency and CTCSS/DCS tone in analog mode.
Conclusion
DMR has revolutionized radio communications, offering clear voice quality and global connectivity that make it an ideal choice for modern communication. Through this guide, you should now have a comprehensive understanding of DMR digital radios. The era of digital communication has arrived, and mastering DMR technology will significantly expand your radio communication horizons! Have you encountered any interesting experiences while learning or using DMR? Share your stories in the comments section.
