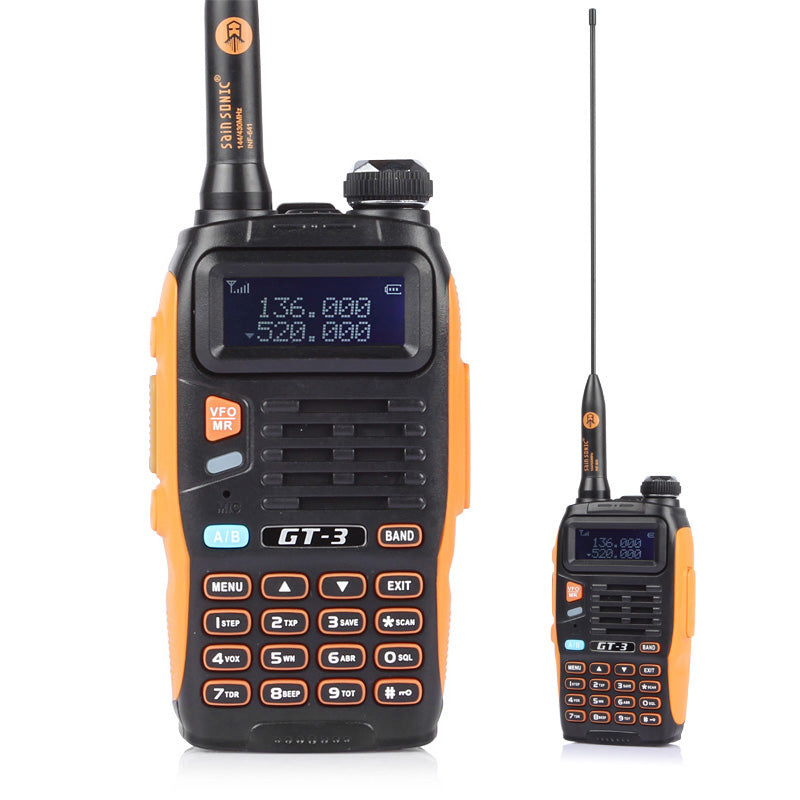

  • GT-3 with antenna
  • GT-3 buttons instructions

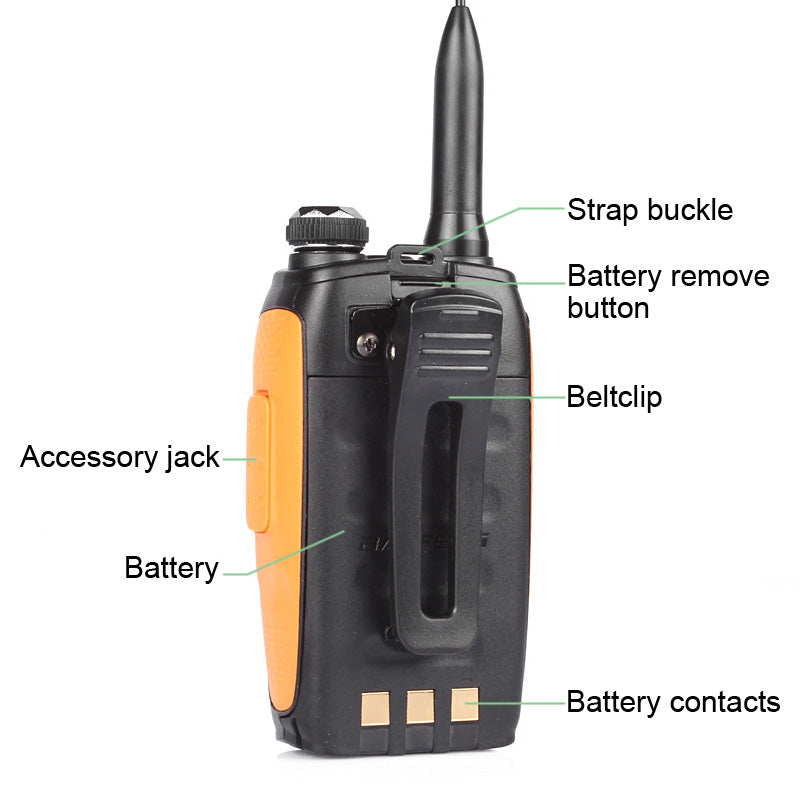

  • GT-3 details instructions
  • Side view of the GT-3 with antenna

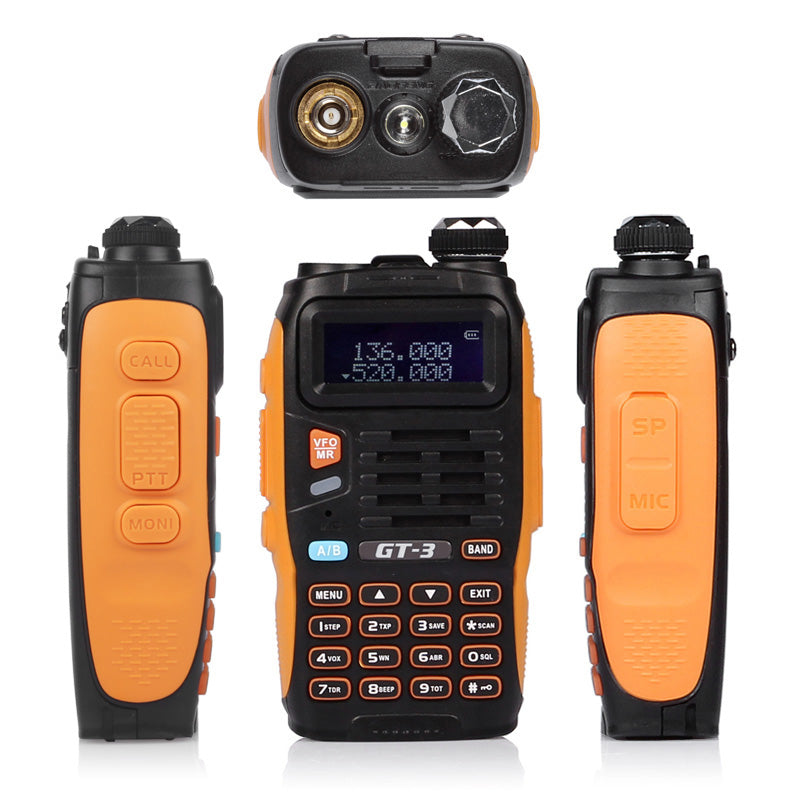

  • GT-3 multiple views

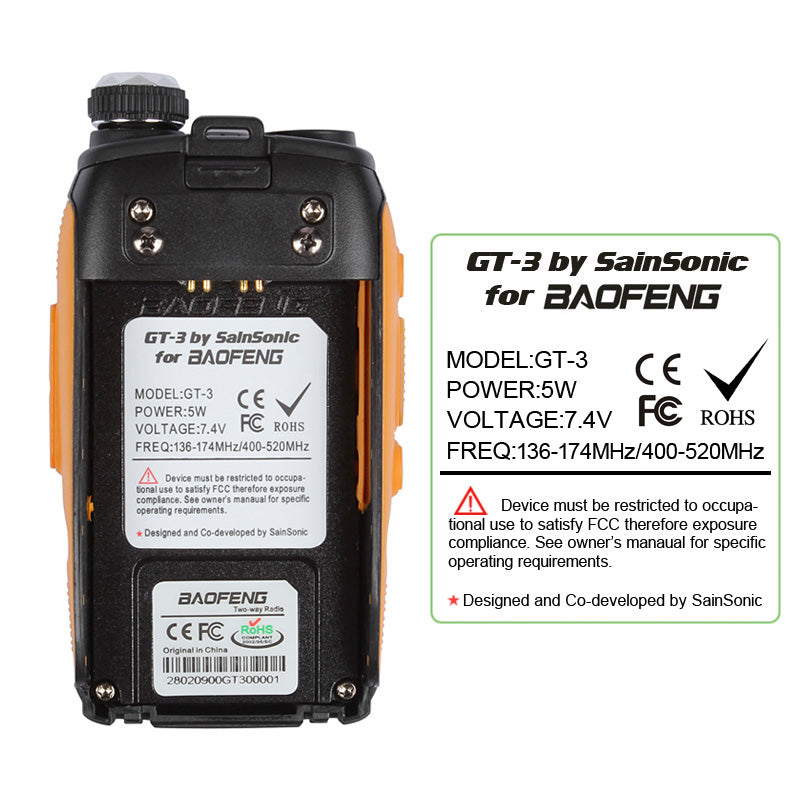

  • GT-3 label
  • GT-3 battery information
  • GT-3 antenna size
  • GT-3 car charger
  • GT-3 package content
  • GT-3 Mark II 5W Dual Band Radio
  • Images
  • Videos
GT-3 Mark II 5W Dual Band Radio
SKU: 28-020-900
Out of stock
$25.99
Power Plug

[DOWNLOAD] User Manual and Programming Software

[DOWNLOAD] CHIRP (Quick Programming)



• FCC ID: 2AJGM-UV5R

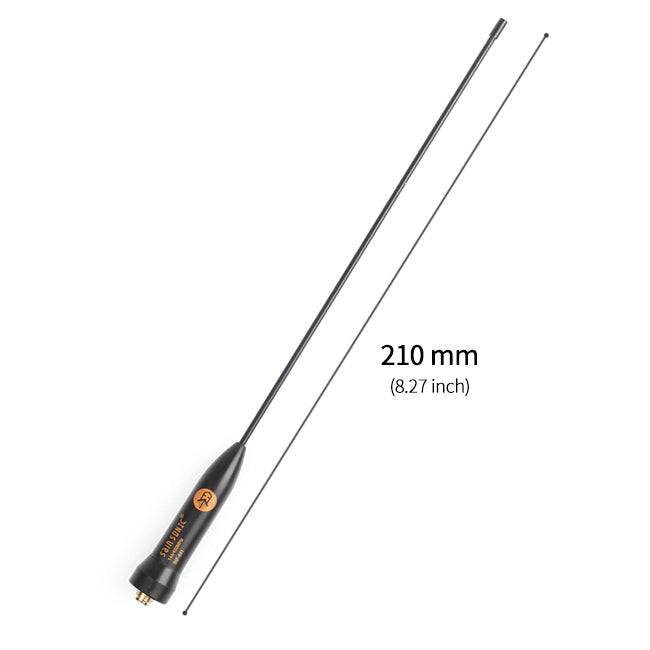

• Make The Way For Two Way: SainSonic INF-641 Antenna is flexible, lightweight and with fine shape. The most valuable part is it enhances the GT-3’s good ability to transmit and receiving signals, allowing you to get longer range on your handheld radio significantly. While, under such a high-power operation of the radio, the antenna is not as hot as the other radios, everything is under a good operating condition.

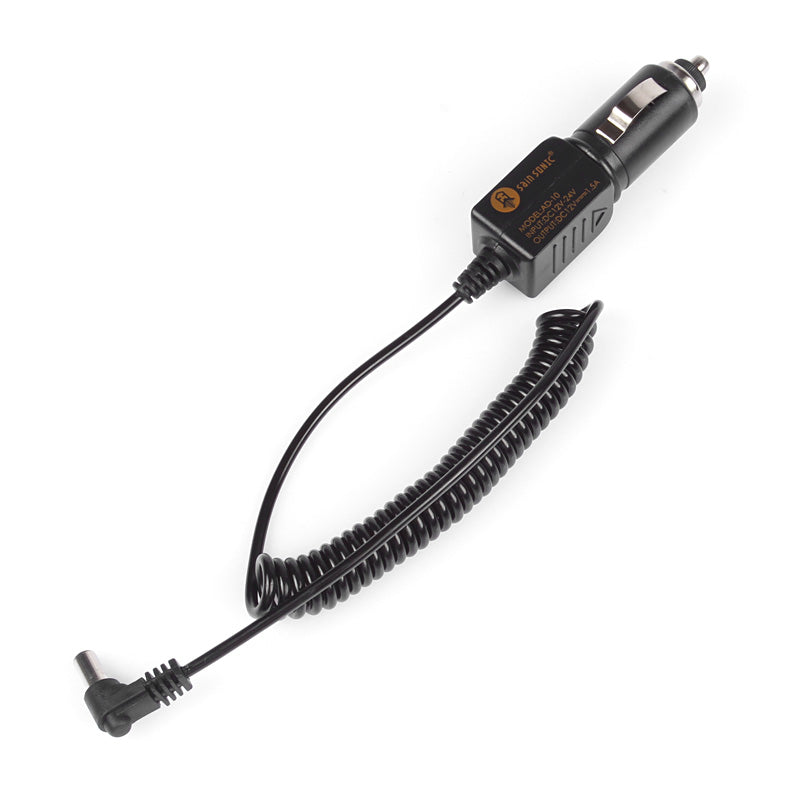

• Car Charger: We also equip a car charger for you, no need to worry about battery life, it is also compatible with a variety of models such as UV-5R/UV-82/GT-3/888s/GT-1 /BF-F8+/UV-B6 radio

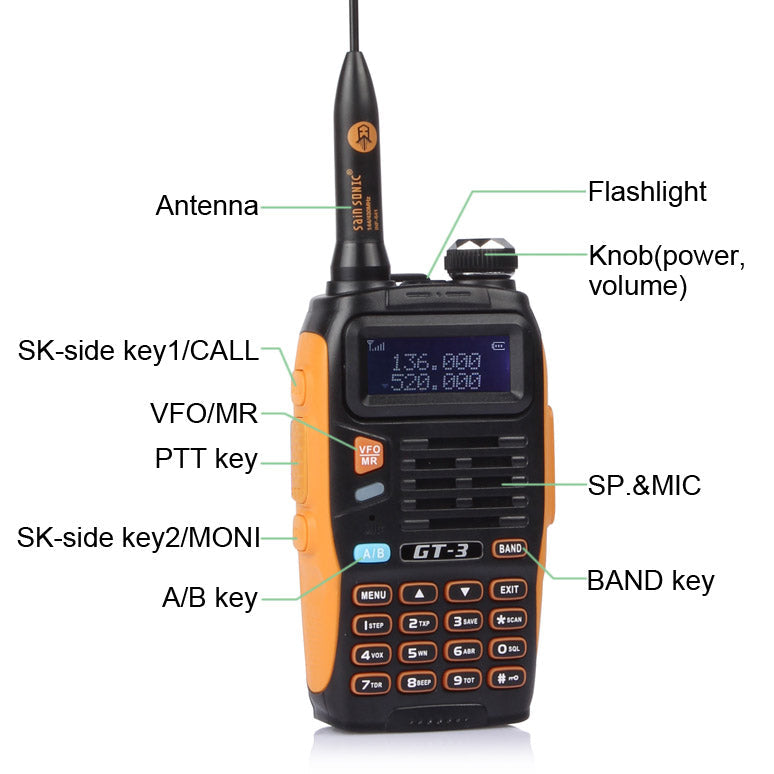

• Big Buttons and Knob: Consistent with people's operating habits, the GT-3 Mark III has built-in PTT key, CALL key, and MONI key on the left side of the radio.

• Antenna Interface: Fine copper-made antenna connector outperforms other antenna connectors and improves your communication. Don’t let the rain keep you from using your radio. The waterproof ring ensures a tight seal to keep your radio dry on those rainy days.　

Details
What's in the Box
Compare Chart
Review



Radio Frequency IC
1. Upgrade SQ to enhance the anti-interference ability
2. RDA1846S add a new tail tone elimination function when transmit and receive signal between 50Hz with 55H
3. Improve the receiver AVG switching noise when signal strength changes severely
　
Frequency-Modulated Receiver Chip
The RDA5802N has a powerful low-IF digital audio processor, this make it have optimum sound quality with varying reception conditions

Power Amplifier IC
1. Low crossover distortion
2. Low quiescent circuit current
　
LED Flashlight
high lumens degrees

Shell
Upgrade Dustproof，waterproof and drop resistance ability

Features:
Function Busy Channel Lock "BCLO"
LED Flashlight
DTMF encoded
Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable
Timer transmission "TOT" programmable
Selecting the Scan Mode.
Built-in RX CTCSS/DCS scan, LED flash
Programmable by PC
Dual Watch/dual reception
Hight /Low RF Power Switchable
Large LCD Display
Level Threshold "Squelch" adjustable from 0 to 9
Crossband reception
Built-in VOX Function
Burst Tones: Press PTT+ A/B to generate 1750Hz | Press PTT + Band to generate 2100Hz
25KHz/12.5KHz Switchable
Emergency Alert
Low Battery Alert
Battery Saver
Time-out Timer
Keypad Lock
Monitor Channel
ROGER SET
　


Enhance Features:
Upgrade SQ to enhance anti-interference ability.
Low crossover distortion. Low quiescent circuit current.
RDA1846S add a new tail tone elimination function when transmit and receive signal between 50Hz with 55Hz
Reduce the receiver AVG switching noise when signal strength changes severely.

Specifications:
Frequency Range: VHF 144-148MHz & UHF 420-450MHz
Output Power: 5 Watts
128 Channels 50 CTCSS and 104 DCS
Memory channels: Up to 128 channels
Frequency stability: 2.5ppm
Antenna impedance: 50 ohm
Operating temperature: -20 ~ +60 °C

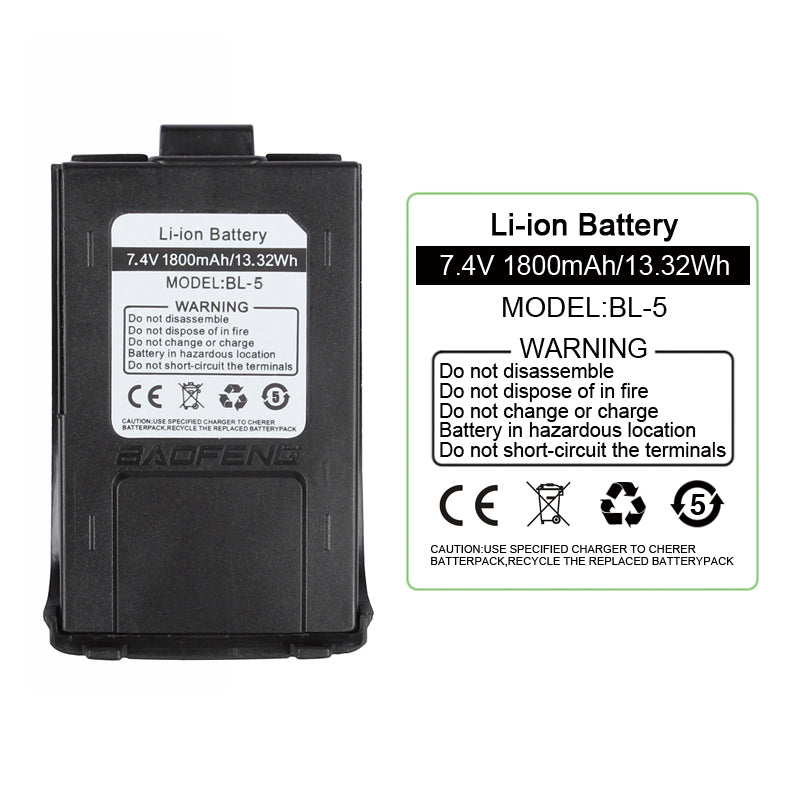

Supply Voltage: Rechargeable Lithium-Ion mAh 7.4V/1800
Consumption: in standby:≤73mA, in reception：380mA, in transmission：≤1.4A
Mode of operation: Simplex or semi-duplex

Antenna Type: Compatible with SMA-Female Antenna
Earpiece & Programming Type: Compatible with K-plug earpiece/cable

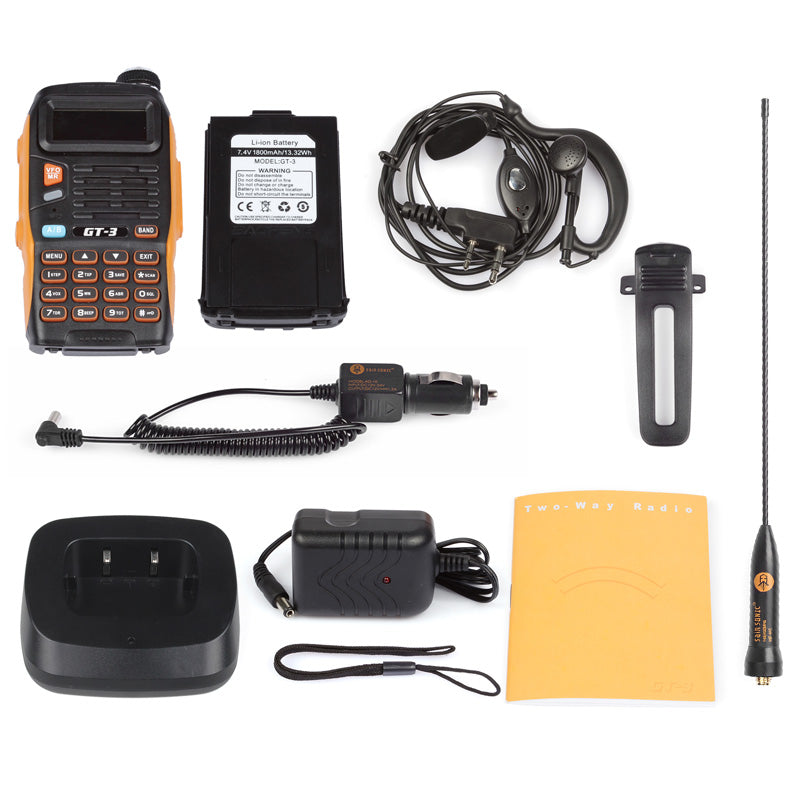

Package Content:
1 x GT-3 Mark-II Two Way Radio
1 x 7.4V 1800mAh Li-ion Battery
1 x Antenna
1 x Belt Clip
1 x Hand Strap
1 x User Manual
1 x Adapter
1 x Desktop Charger
1 x Headset
1 x Car Charger

What's in the Box

  • 1 x GT-3 Mark-II Two Way Radio
  • 1 x 7.4V 1800mAh Li-ion Battery
  • 1 x Antenna
  • 1 x Belt Clip
  • 1 x Hand Strap
  • 1 x User Manual
  • 1 x Adapter
  • 1 x Desktop Charger
  • 1 x Headset
  • 1 x Car Charger
