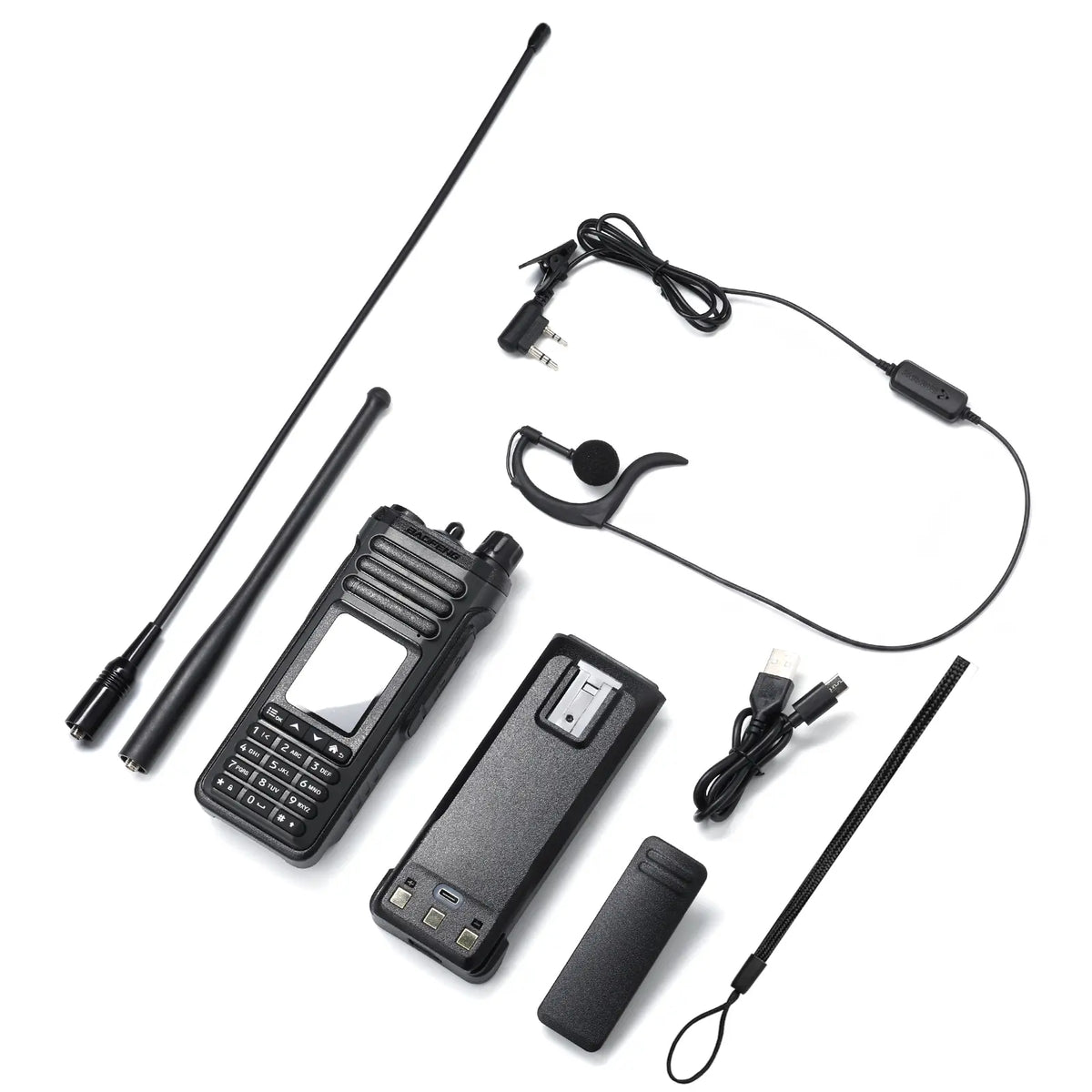

Stay connected with confidence using the BAOFENG SW-9 handheld radio, designed for amateur radio operators, emergency responders, and outdoor enthusiasts. Delivering up to 10W output power, the SW-9 supports wideband reception across FM, airband, VHF, UHF, 1.25M and shortwave frequencies, with SSB (LSB/USB) mode for enhanced weak-signal listening and long-distance reception. It provides versatile communication and signal monitoring capabilities for outdoor adventures, emergency situations, and off-grid communication.

With Bluetooth programming and audio support, users can manage channels through a smartphone app and connect compatible wireless accessories like wireless earpiece or PTT for convenient hands-free communication. The built-in Fall Detection (Man-Down) feature adds an extra layer of safety by automatically sending alerts when a fall is detected, making the SW-9 a reliable communication companion for outdoor adventures, emergency situations, and off-grid operations.
　

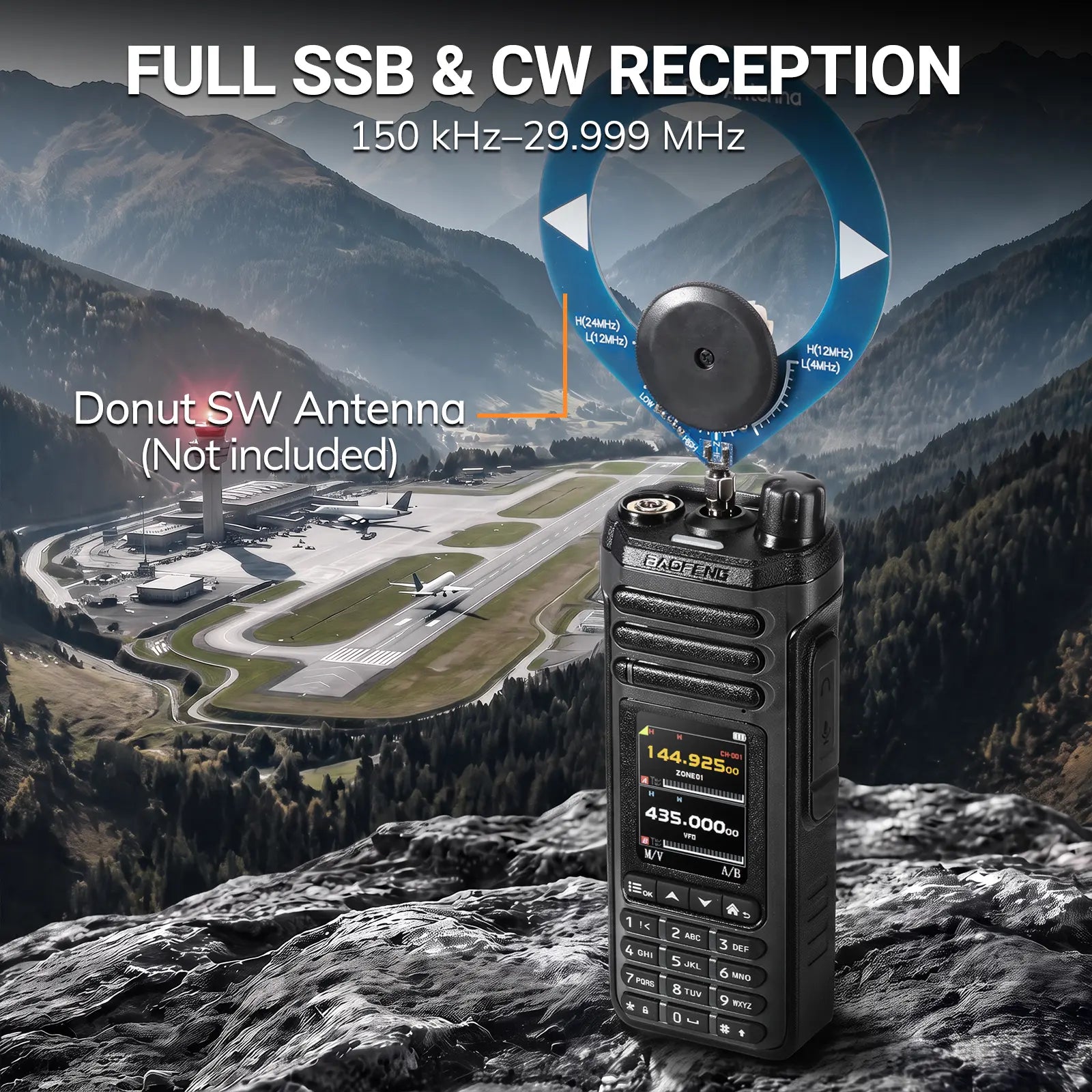

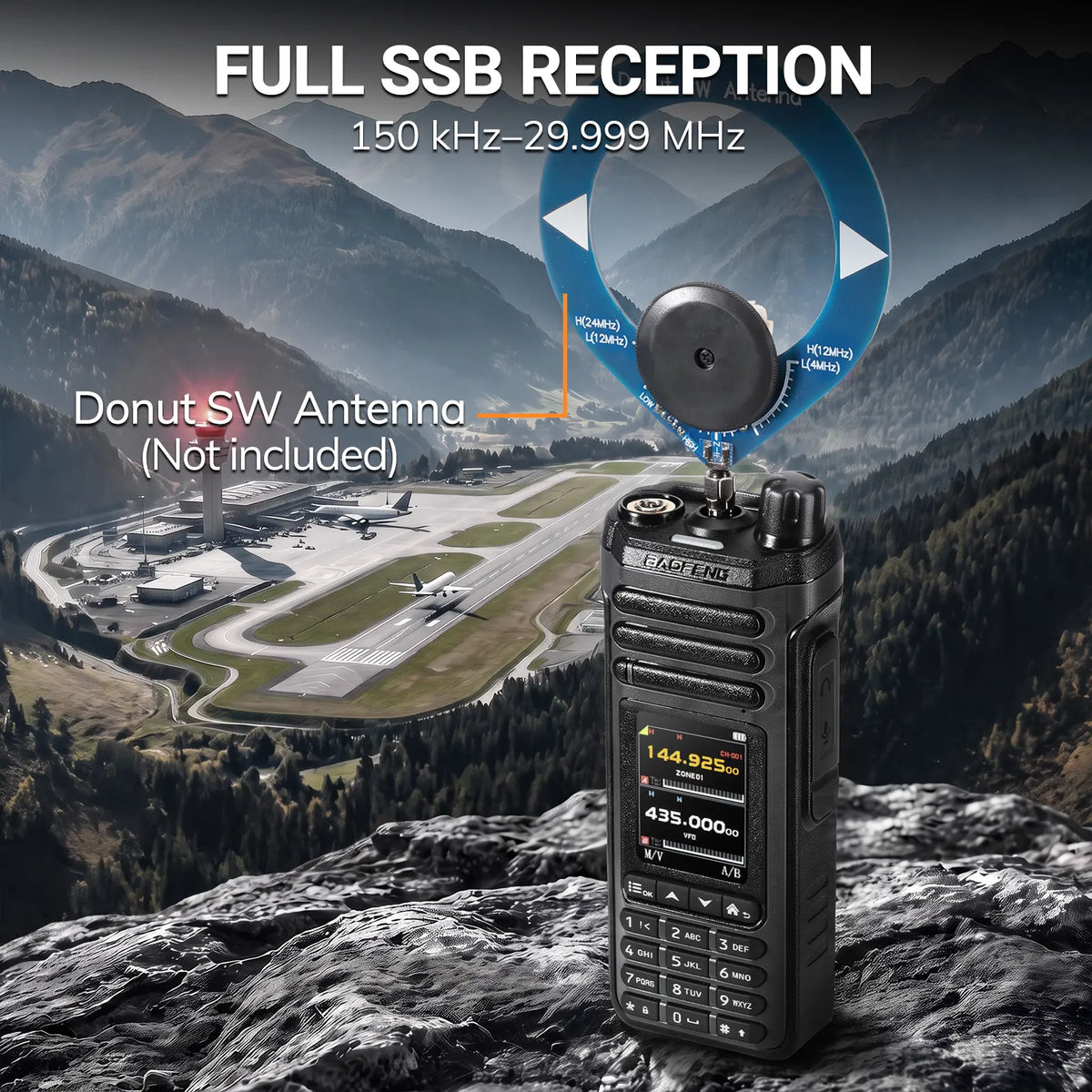

HF SSB/CW Reception:

Receive shortwave signals from 150 kHz–29.999 MHz with SSB (USB/LSB) and CW modes, enabling weak-signal monitoring and long-distance listening for amateur radio and shortwave enthusiasts. *SSB/CW supported on HF only.

Full-Band Receiver:

Monitor a wide range of signals with reception support across LW, MW, SW, VHF, UHF, AM airband, FM broadcast, and NOAA weather channels for versatile listening in different environments.

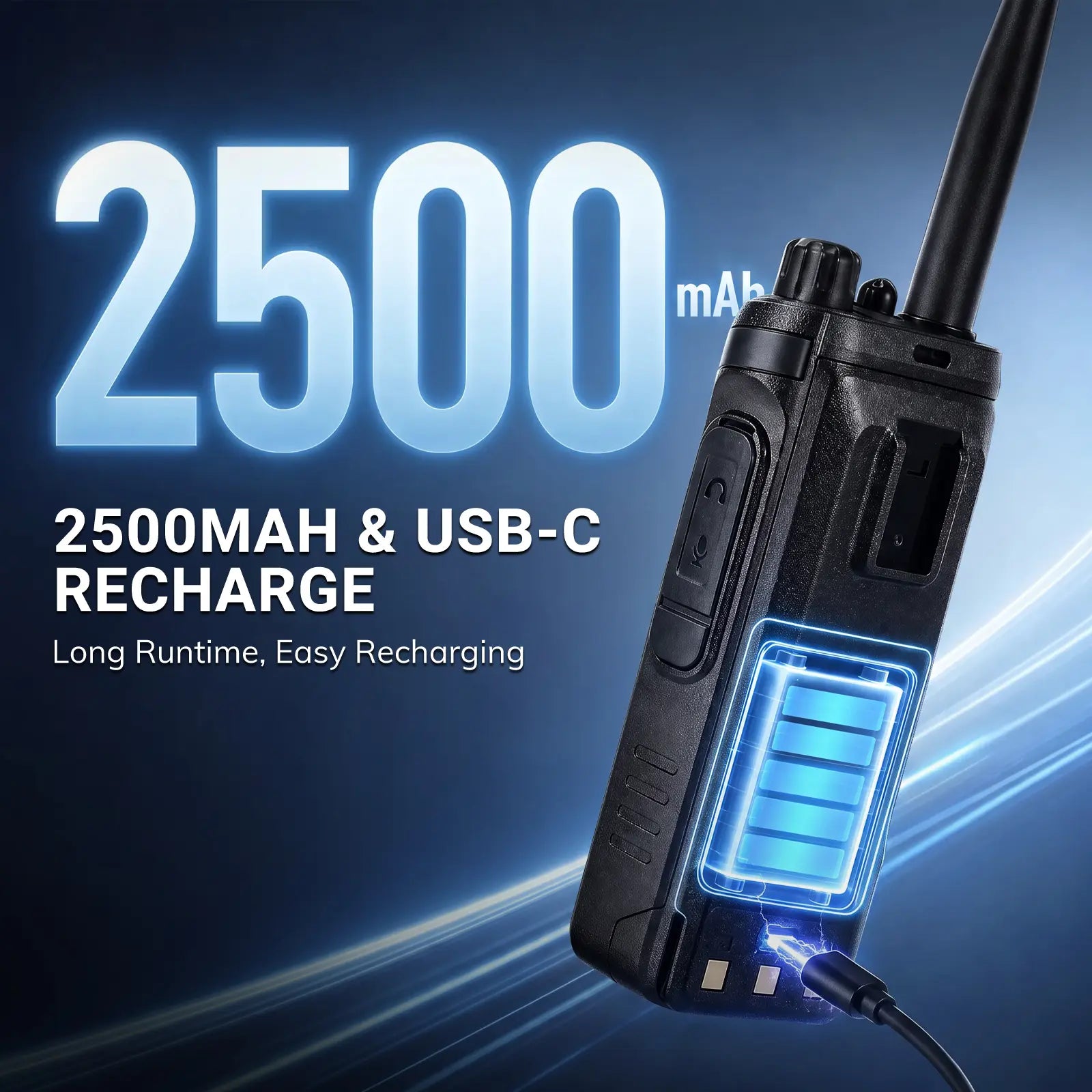

2500mAh Long-Lasting Battery:

Stay powered during extended outdoor activities with a high-capacity 2500mAh rechargeable battery, providing reliable runtime for field operations, camping, and emergency communication.

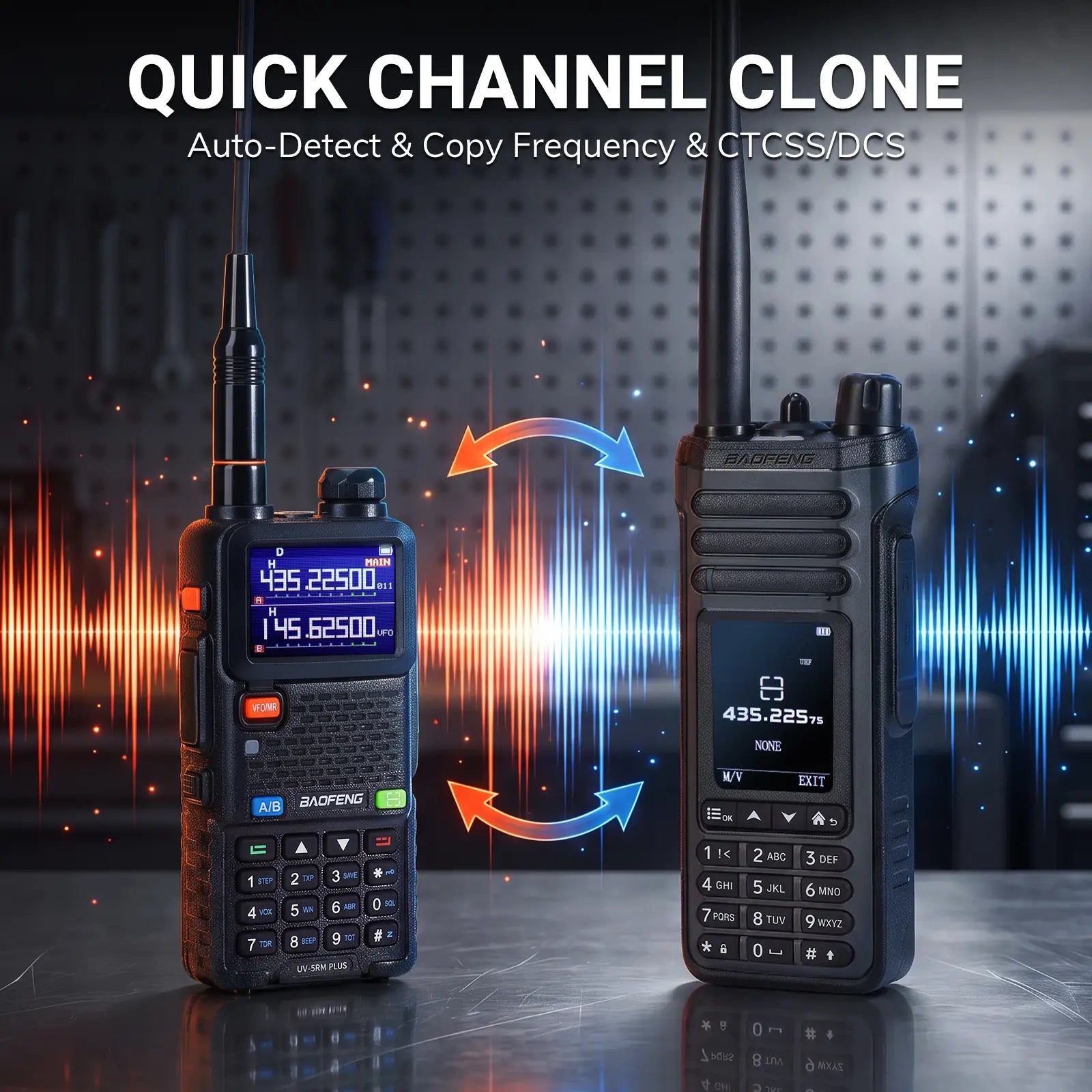

One-Key Frequency Copy:

Quickly capture frequency, CTCSS, and DCS settings from a nearby transmitting radio with one button, reducing manual programming steps and making team setup faster and easier.

Fall Detection Alert:

Built-in tilt sensing technology detects abnormal falls and triggers emergency alerts, providing an added layer of safety for solo hikers, off-road drivers, and field workers.

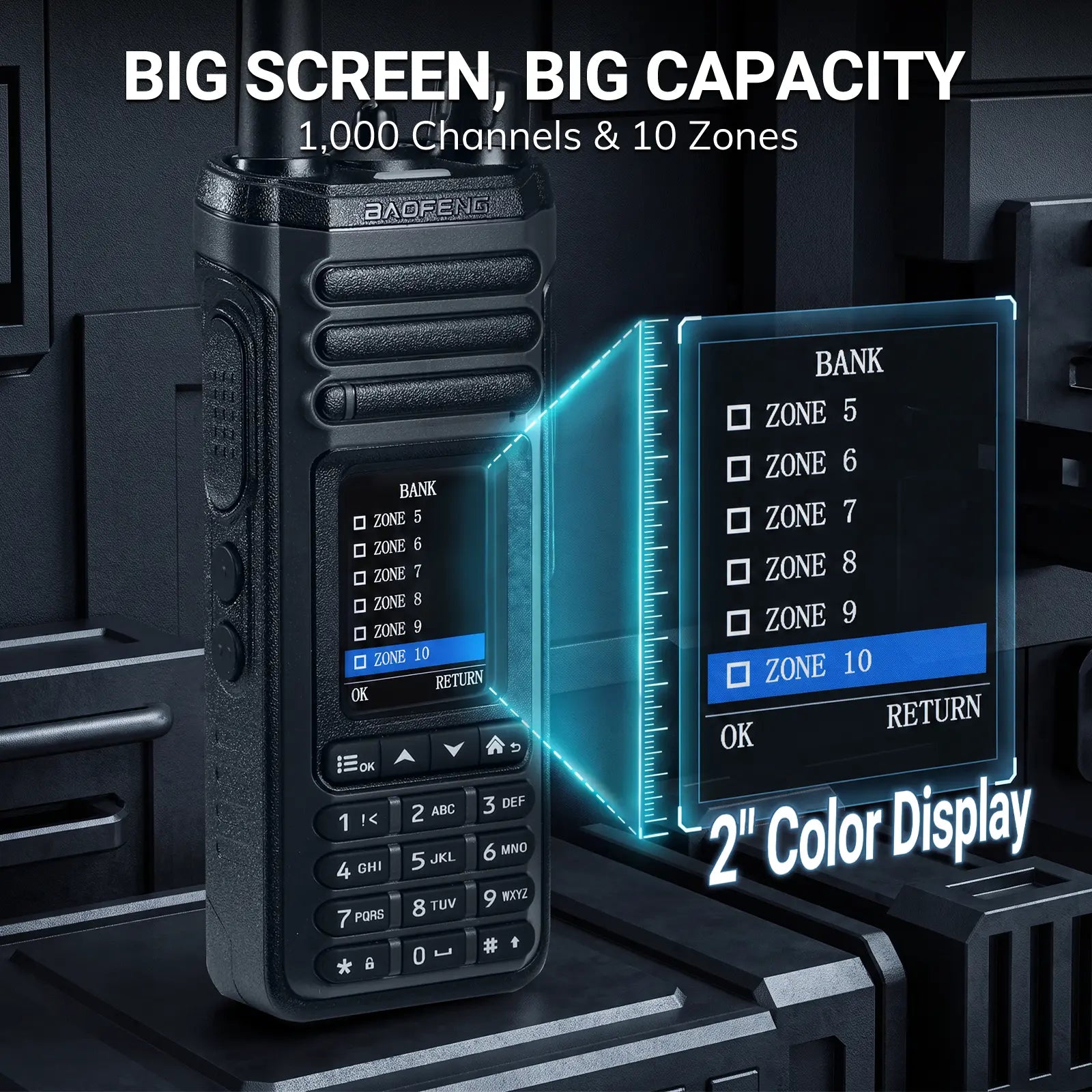

1000 Channels & 10 Zones:

Store up to 1,000 channels organized into 10 customizable zones for easier channel management, helping users quickly switch between personal, outdoor, and professional communication groups.

Specifications：
Transmit Frequency (TX): VHF 136–174 MHz | UHF 400–470 MHz, 220-260 MHz

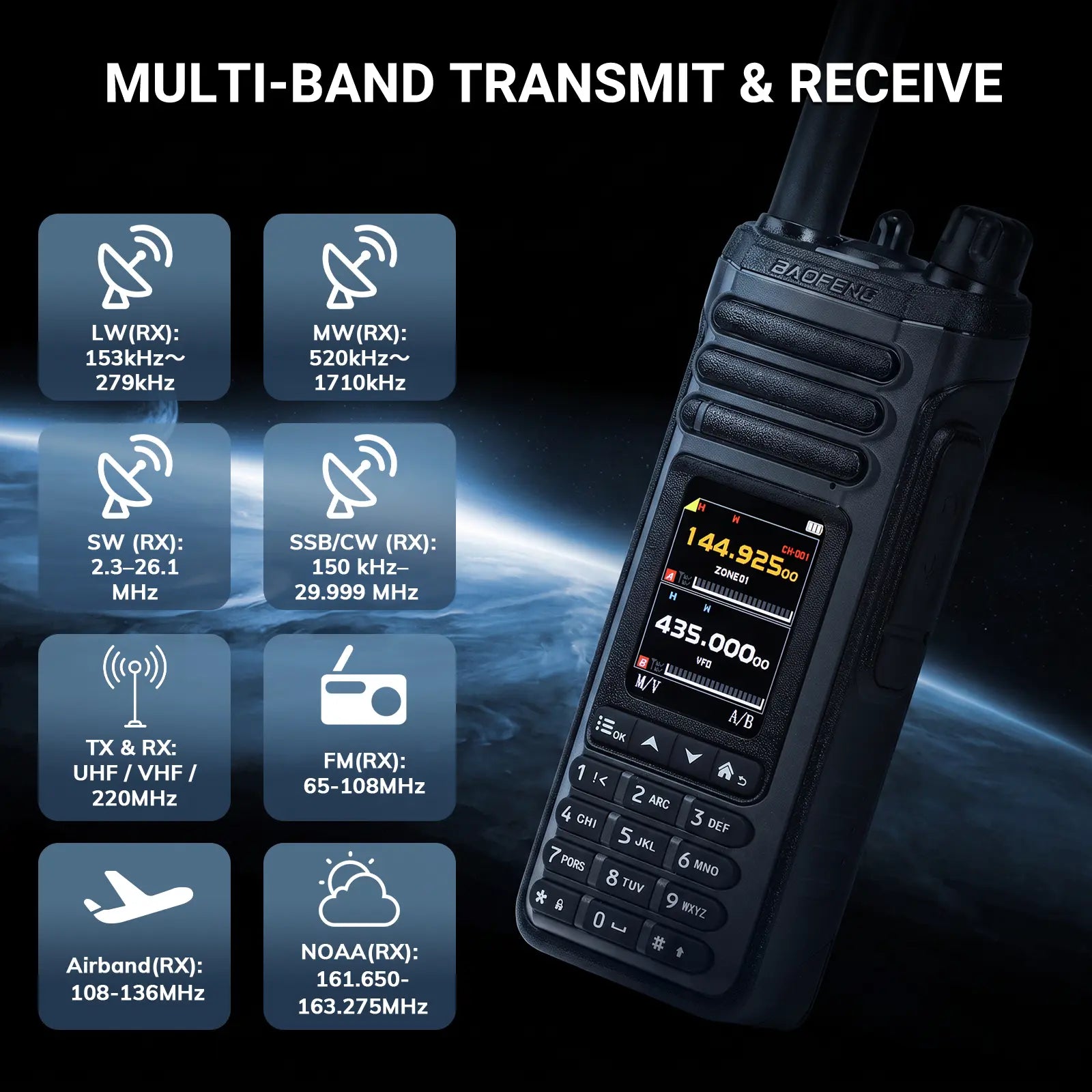

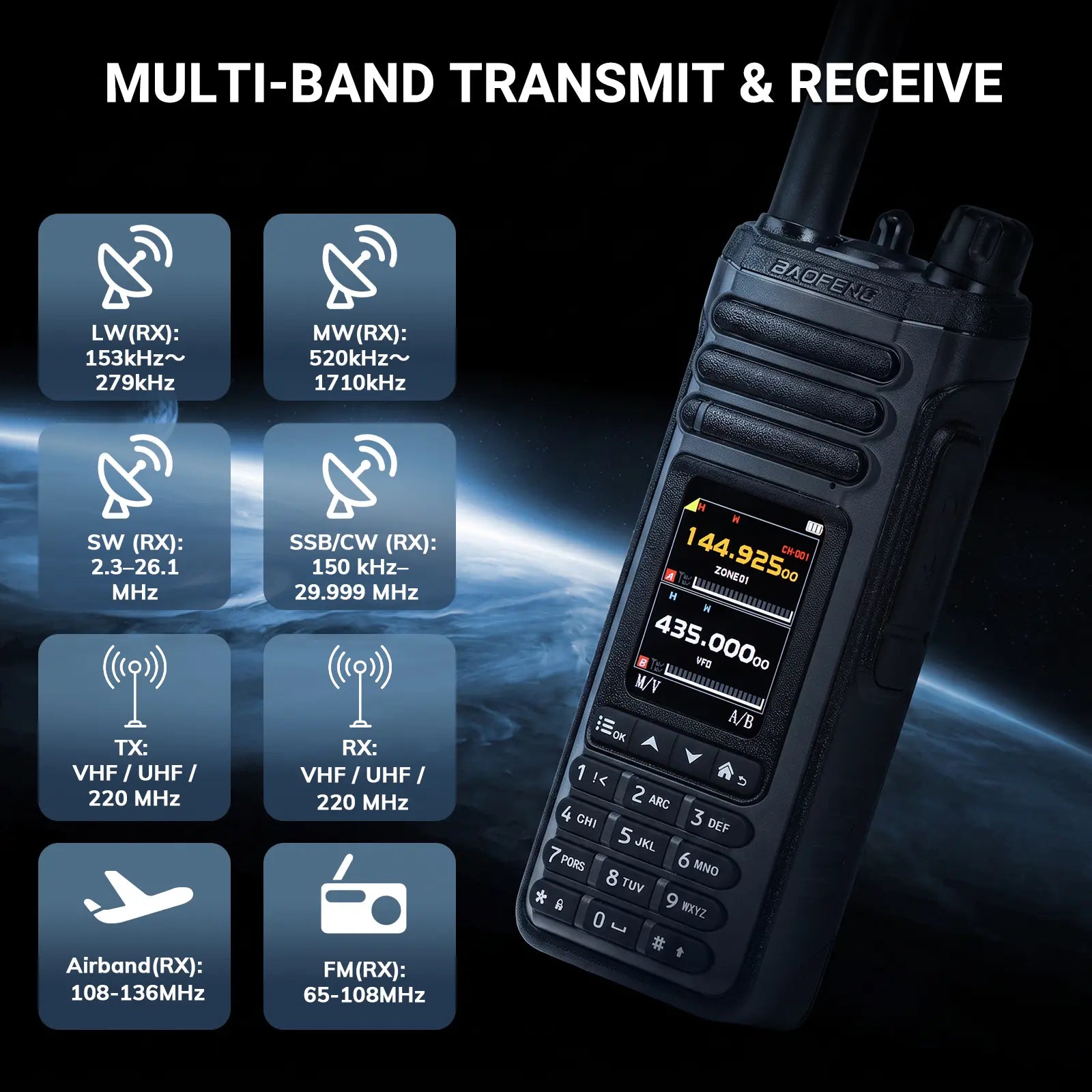

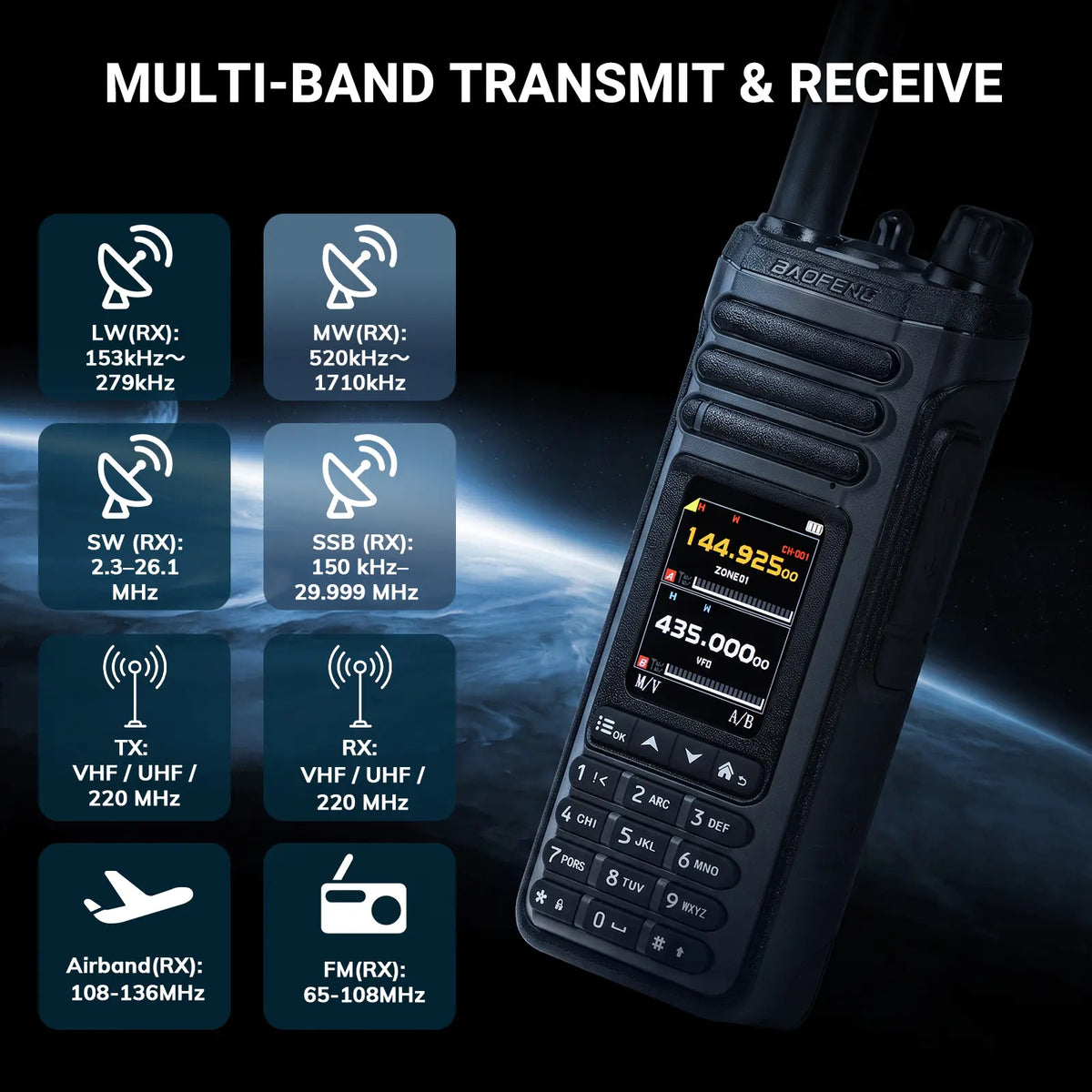

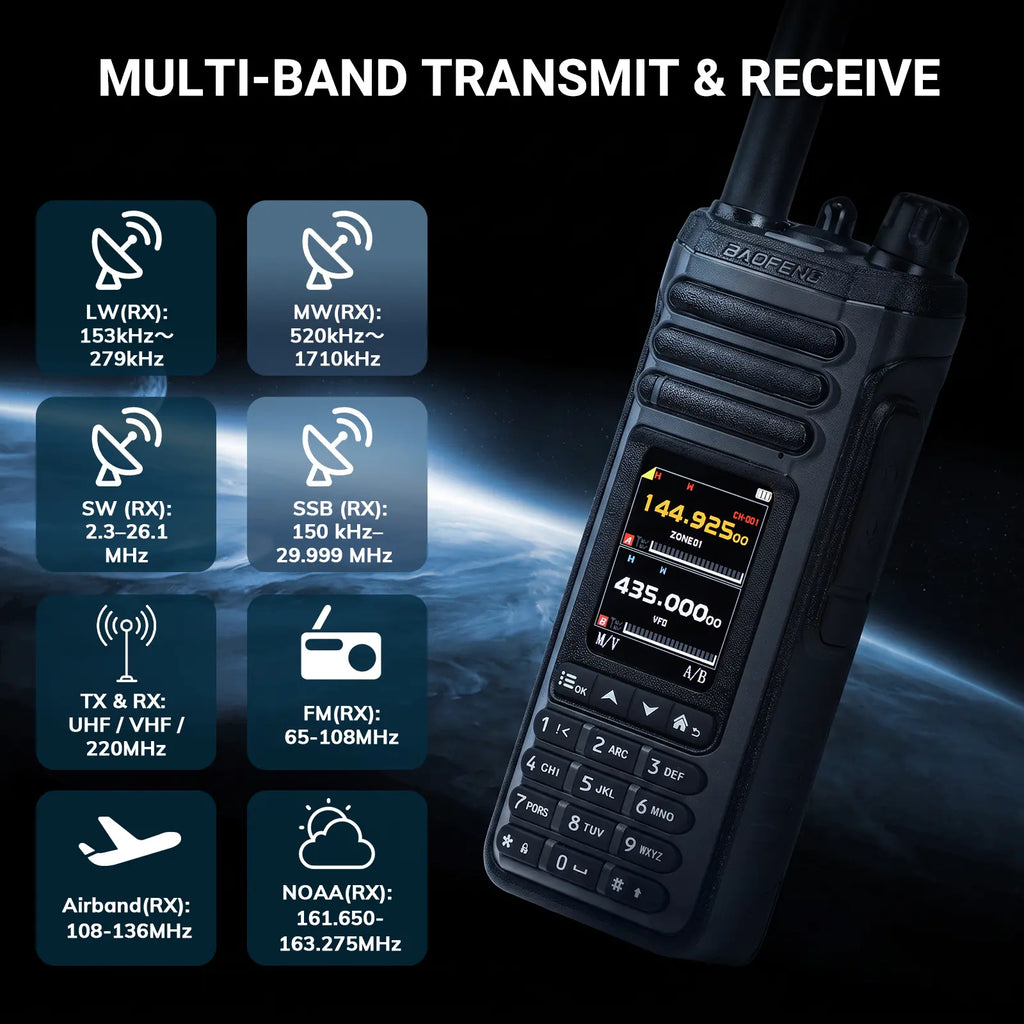

Receive Frequency (RX): VHF 136–174 MHz | UHF 220-260 MHz, 350-390 MHz, 400–600 MHz | LW 153–279 kHz | MW 520–1710 kHz | SW 150 kHz–29.999 MHz | FM 64–108 MHz | AM Airband 108–137 MHz | NOAA Weather

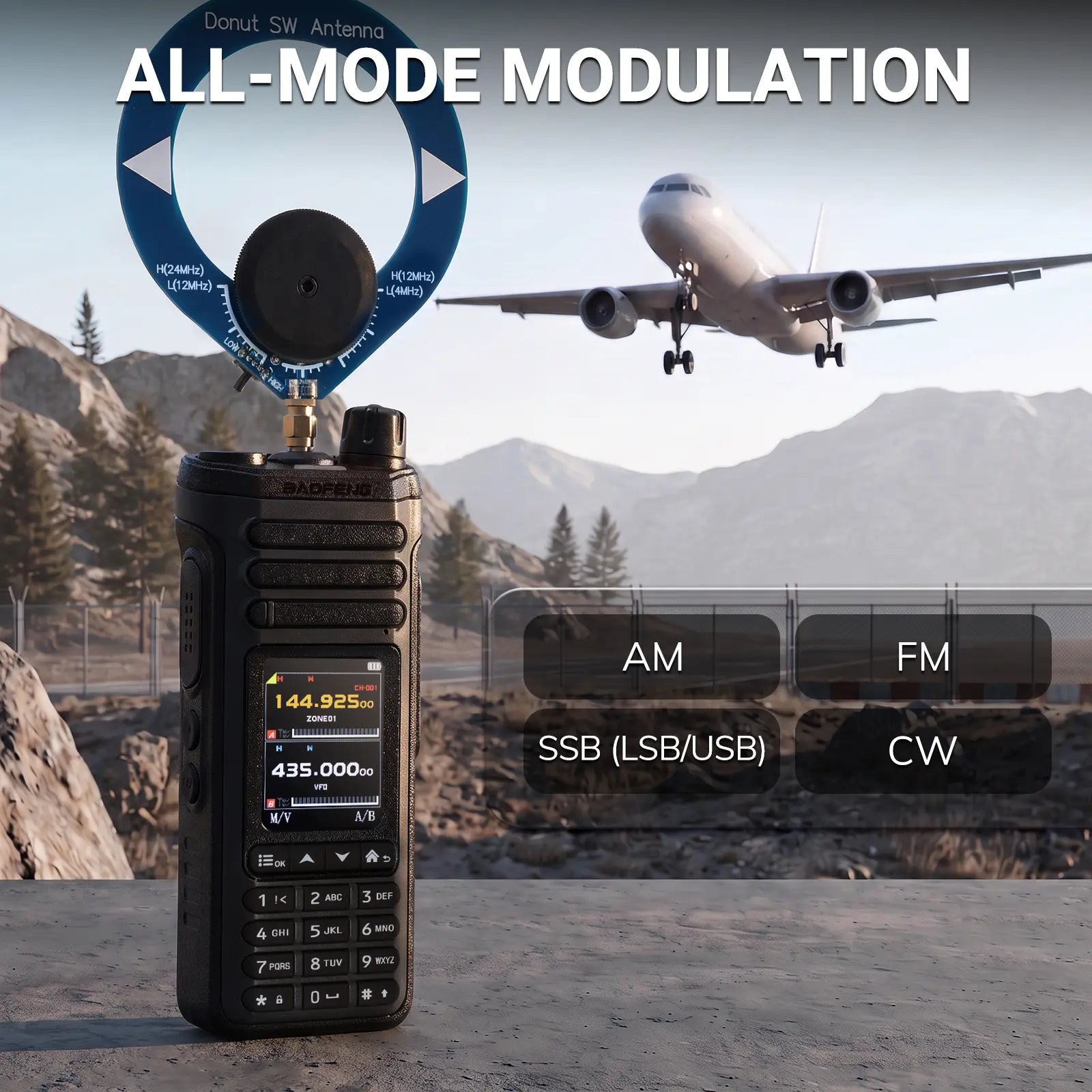

Demodulation Modes: FM | AM | SSB (USB/LSB) | CW (SSB & CW for HF only)

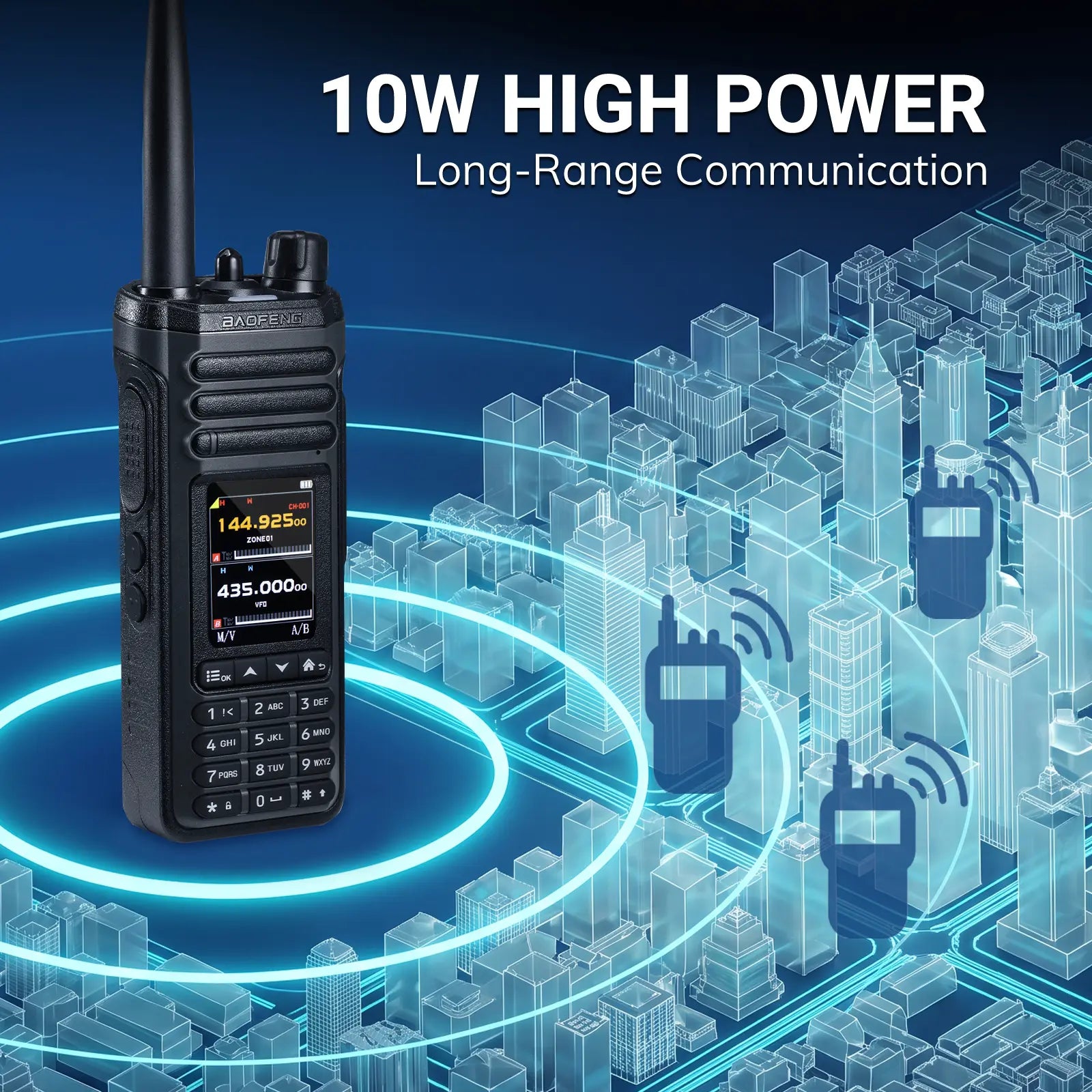

RF Output Power: 10W / 5W / 2W (Selectable)
Channel Capacity: 1,000 Channels with 10 Zones
Bluetooth Functions: Bluetooth Data & Bluetooth Audio
Display: 2.0" Color TFT LCD

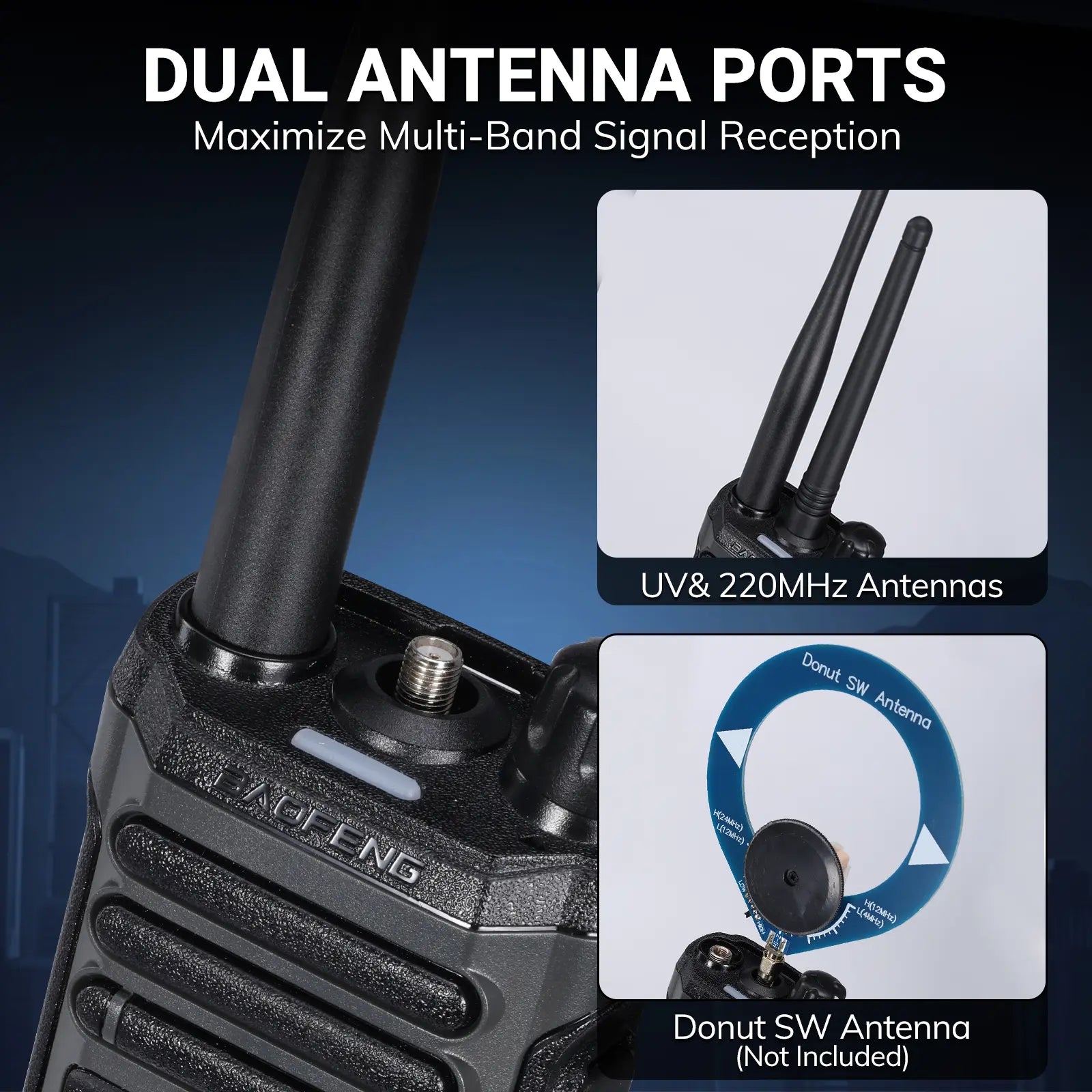

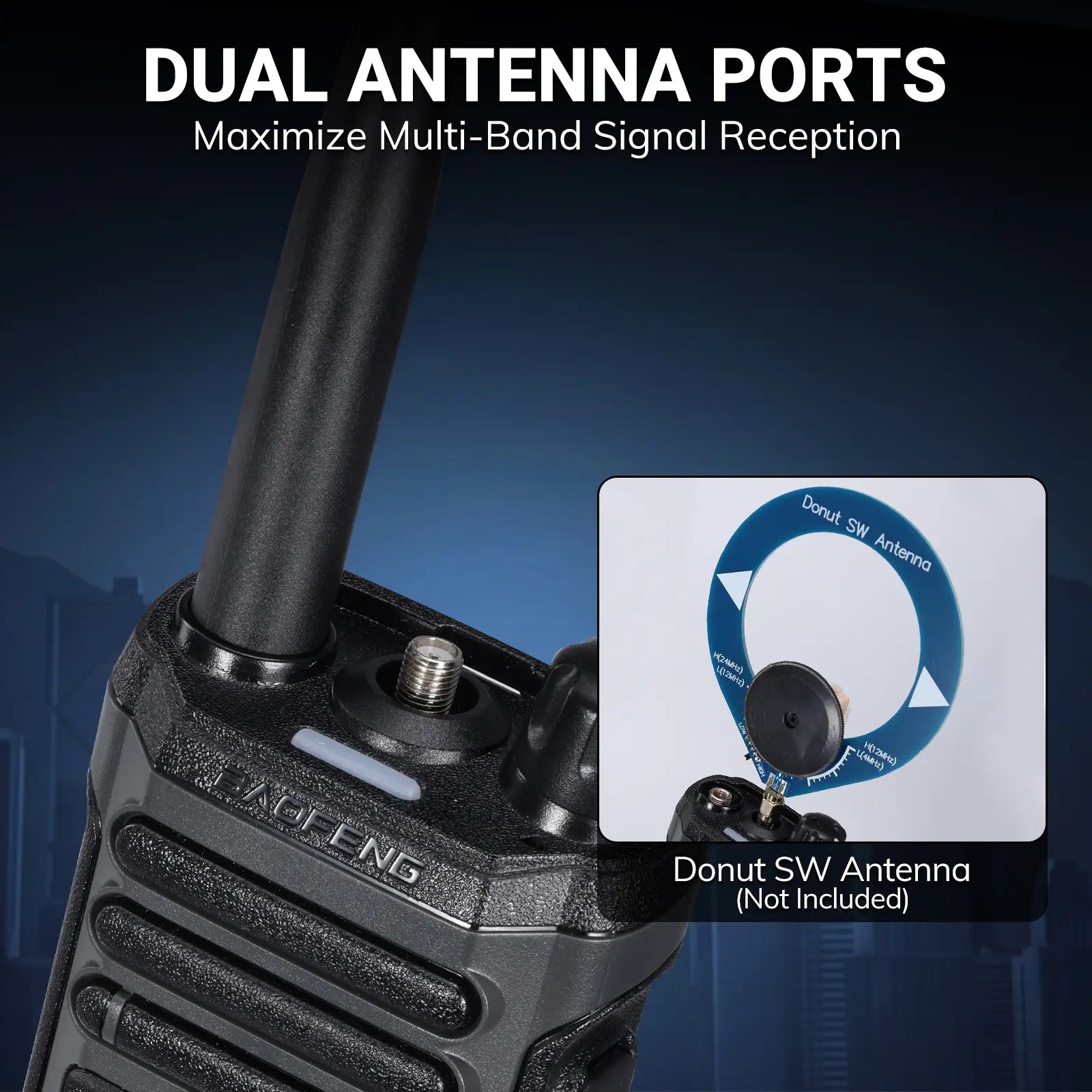

Antenna Interface: Dual SMA Ports (SMA-M / SMA-F)
Battery: 2500mAh, 7.4V Rechargeable Li-ion Battery
Charging Port: USB Type-C (5V/2A Max)
App Compatibility: Ola Radio (iOS & Android)
CHIRP Compatibility: Select ”UV-17PRO GPS” Model

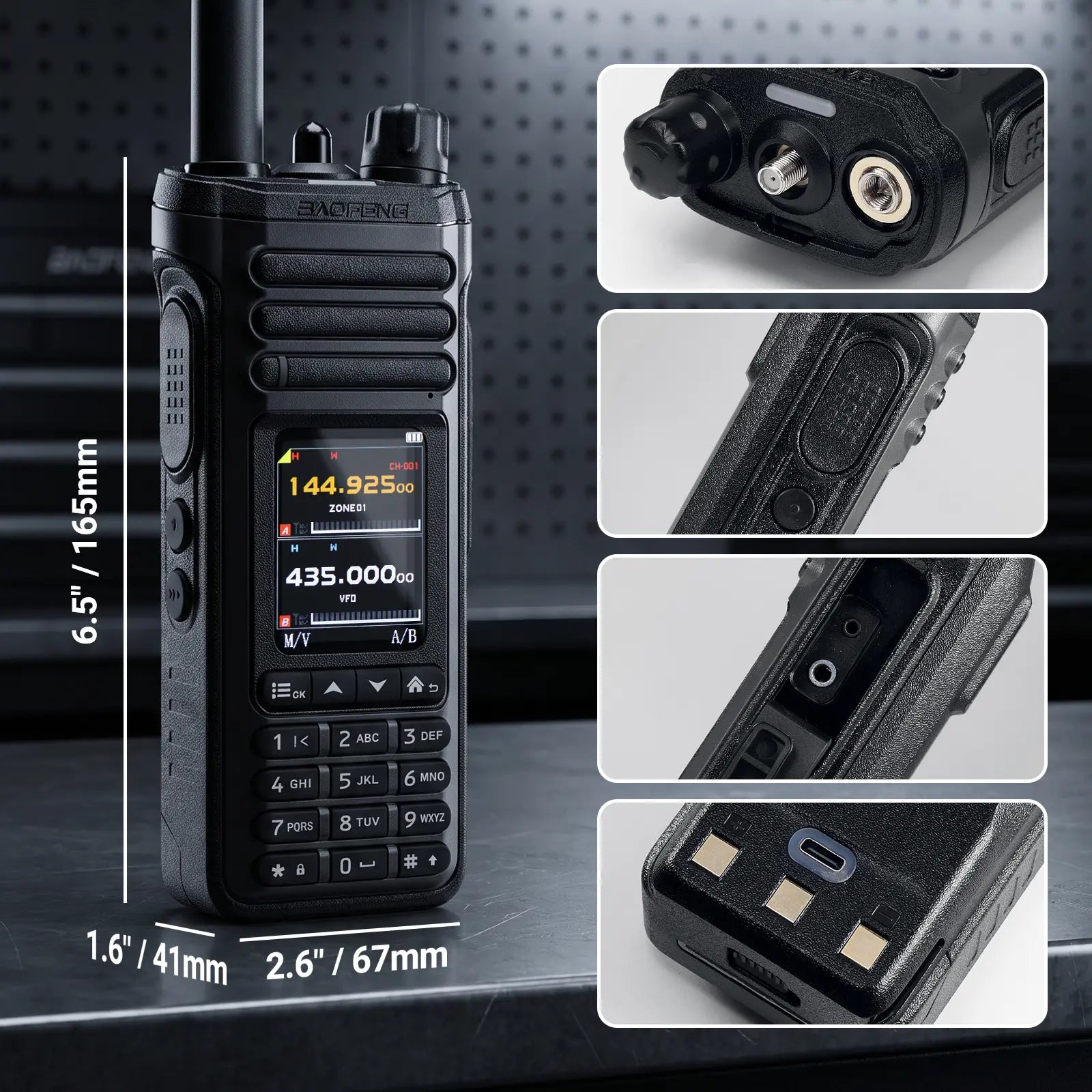

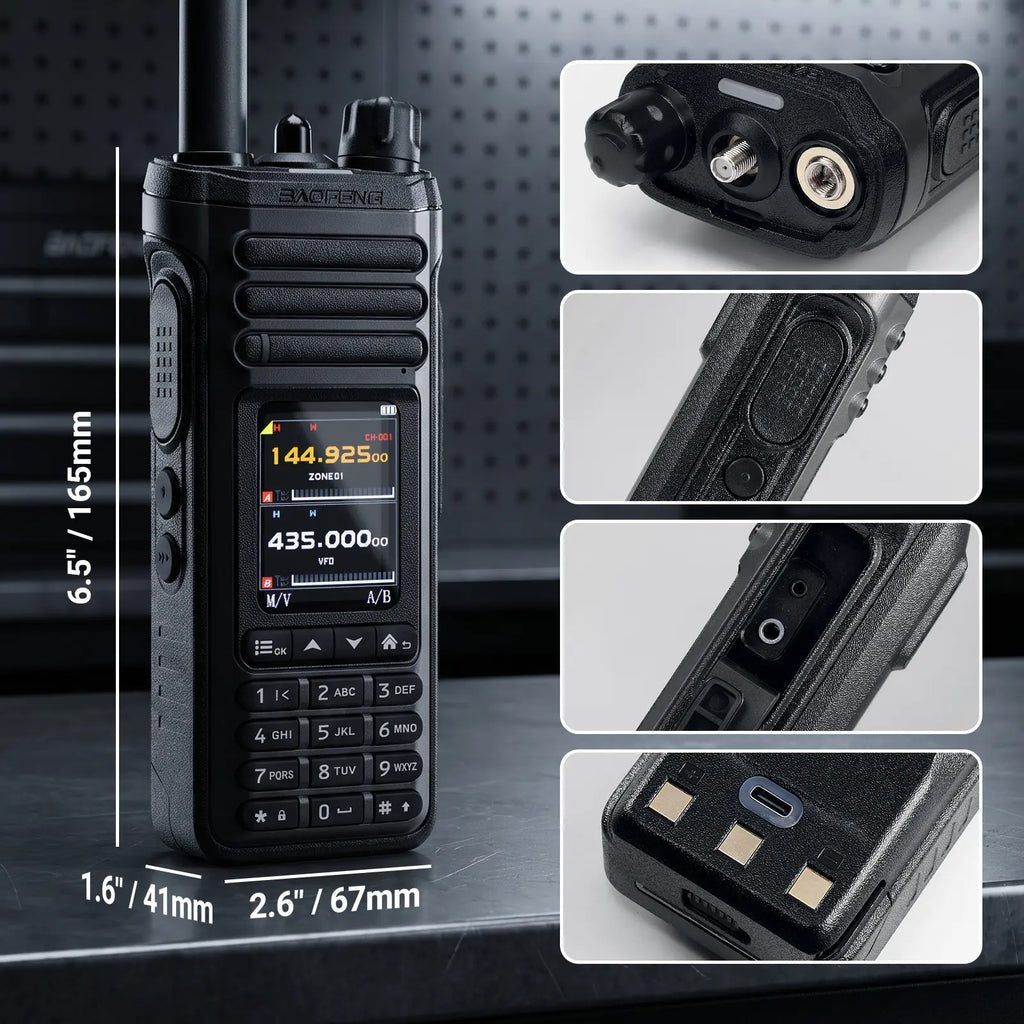

Size: 2.6" x 1.6" x 6.5" / 67 x 41 x 165mm
　

QA:
Q: How can I program channels in the field without a computer?
A: Use BT Data mode with the smartphone app to wirelessly program frequencies, edit channels, and manage zones directly from your phone, making field setup faster and more convenient.

Q: Why won’t my USB-C fast charger charge the radio battery?
A: For charging safety, the battery requires a standard USB-C power source rated at 5V/2A maximum. Higher-power PD chargers may not be compatible and will not activate charging.

Q: Does this radio support shortwave SSB reception?
A: Yes. The SW-9 supports shortwave reception from 2.3–30MHz with LSB/USB SSB modes for monitoring known frequencies and long-distance signals. SSB reception is available for listening only and does not include waterfall visualization.
