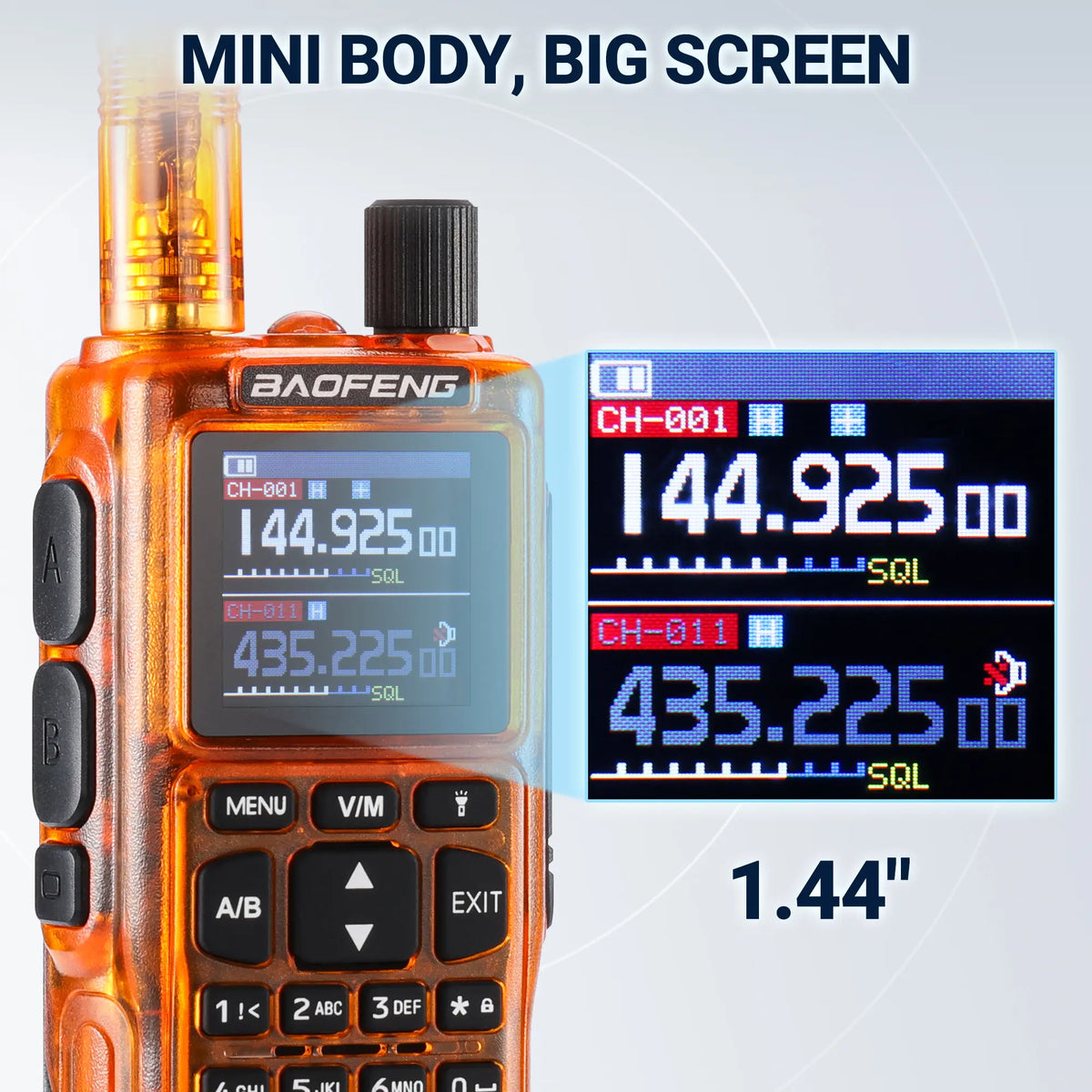

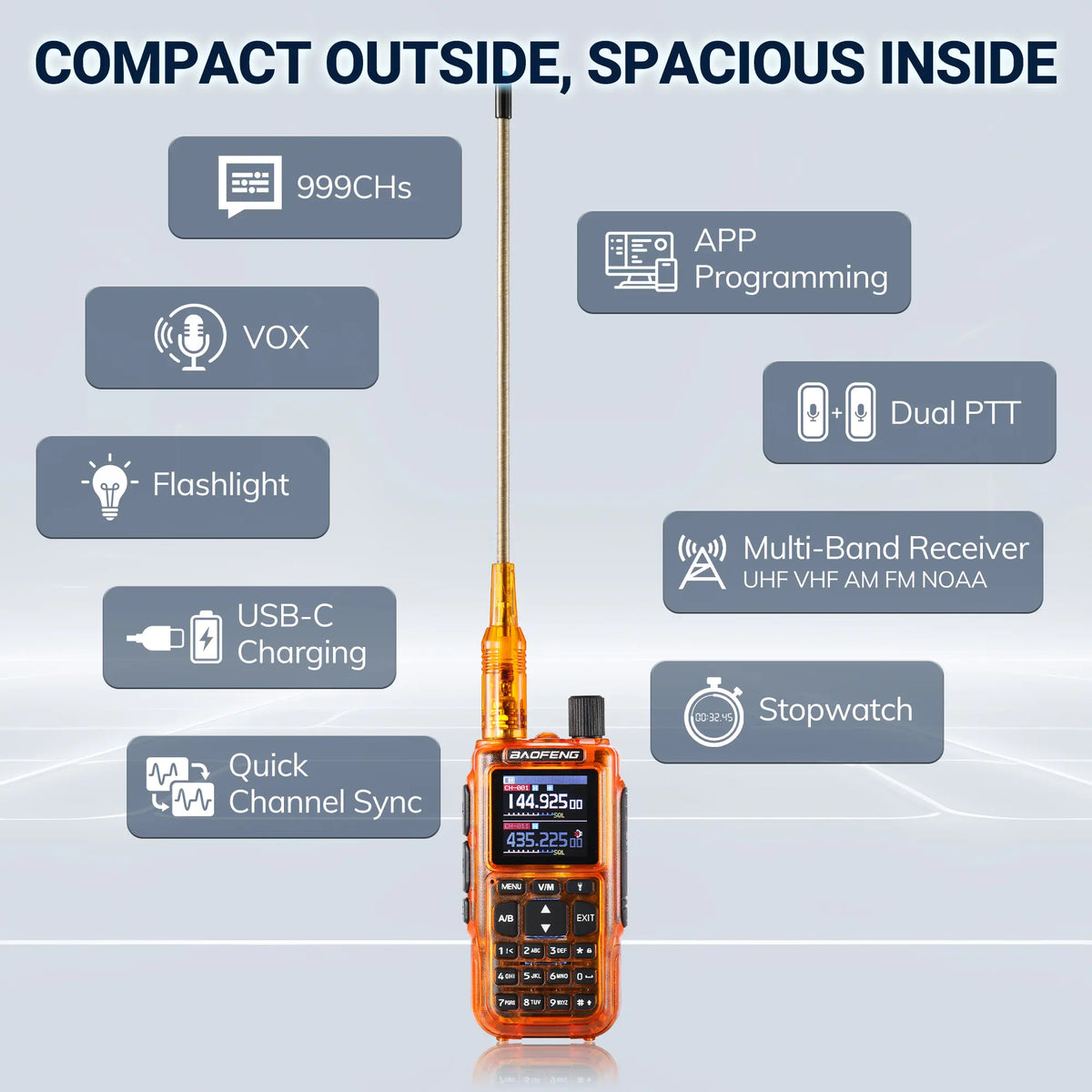

BAOFENG MINI-5 is a compact dual-band ham radio designed for operators who want full control in a smaller handheld. MINI-5 transmits on VHF 144-148 MHz and UHF 420-450 MHz at 5W or 2W, while receiving VHF, UHF, FM radio, airband, and NOAA weather channels. The 1.44-inch TFT color screen, full keypad, dual display, dual watch, and dual PTT make it easy to monitor and manage two working lines.

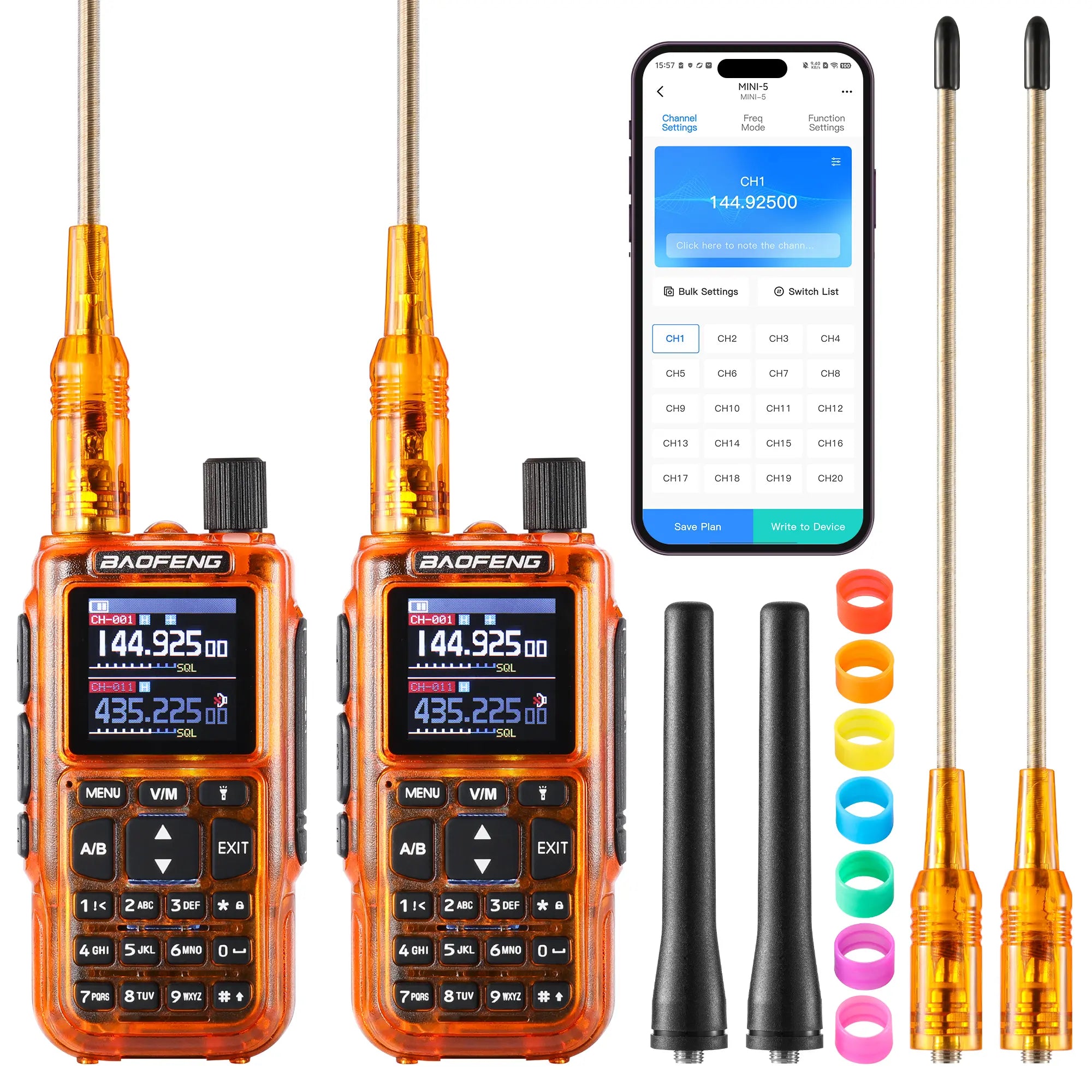

Store up to 999 channel groups, edit channel information directly on the radio, or use the BT app on iOS and Android for wireless programming. Frequency Search helps identify nearby transmissions and their CTCSS/DCS tones for faster channel setup. Reverse Frequency, VOX, a flashlight, stopwatch, alarms, and an assignable side key round out its feature set. Compact and versatile, MINI-5 puts essential ham radio controls and functions within easy reach, whether you're at home or on the go.
　

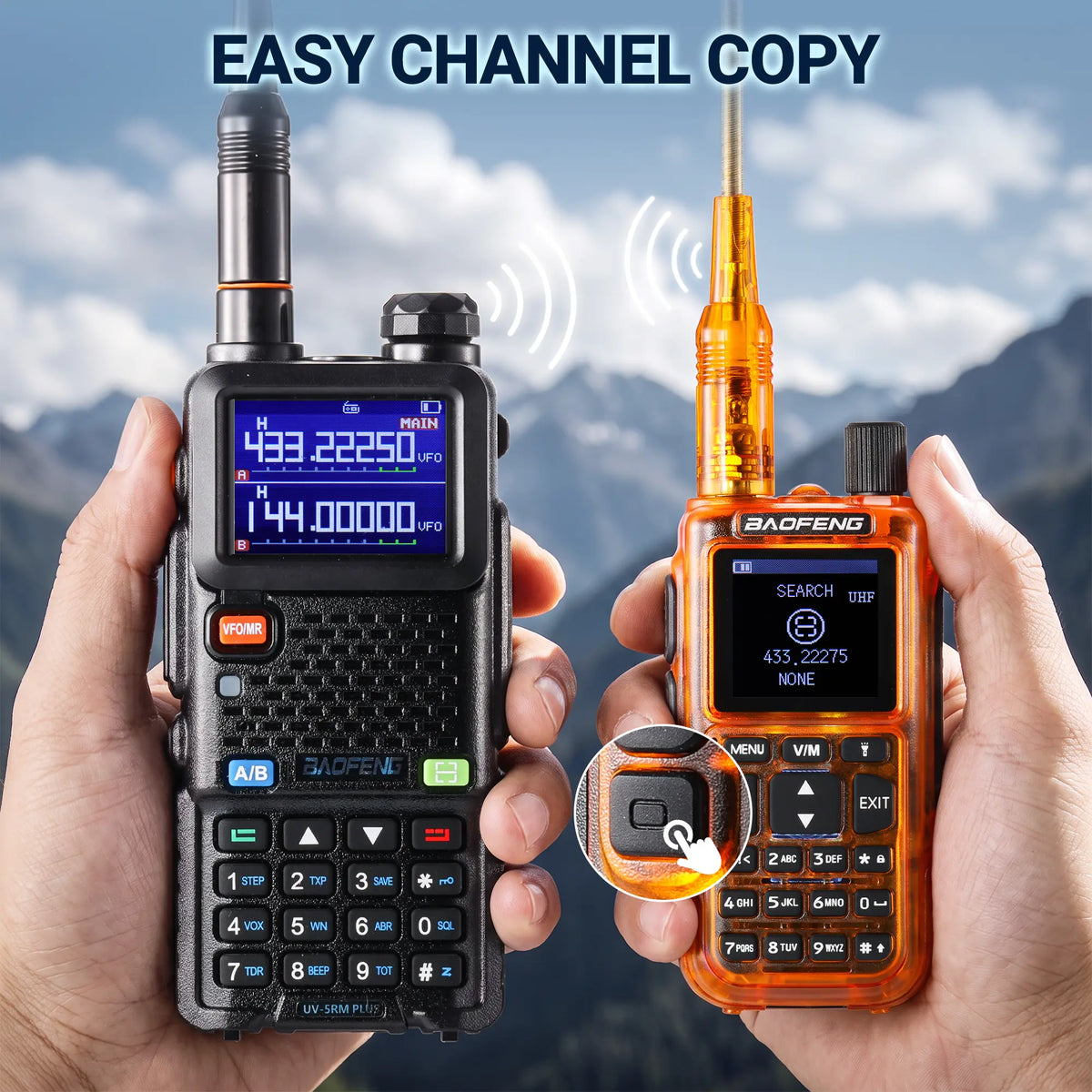

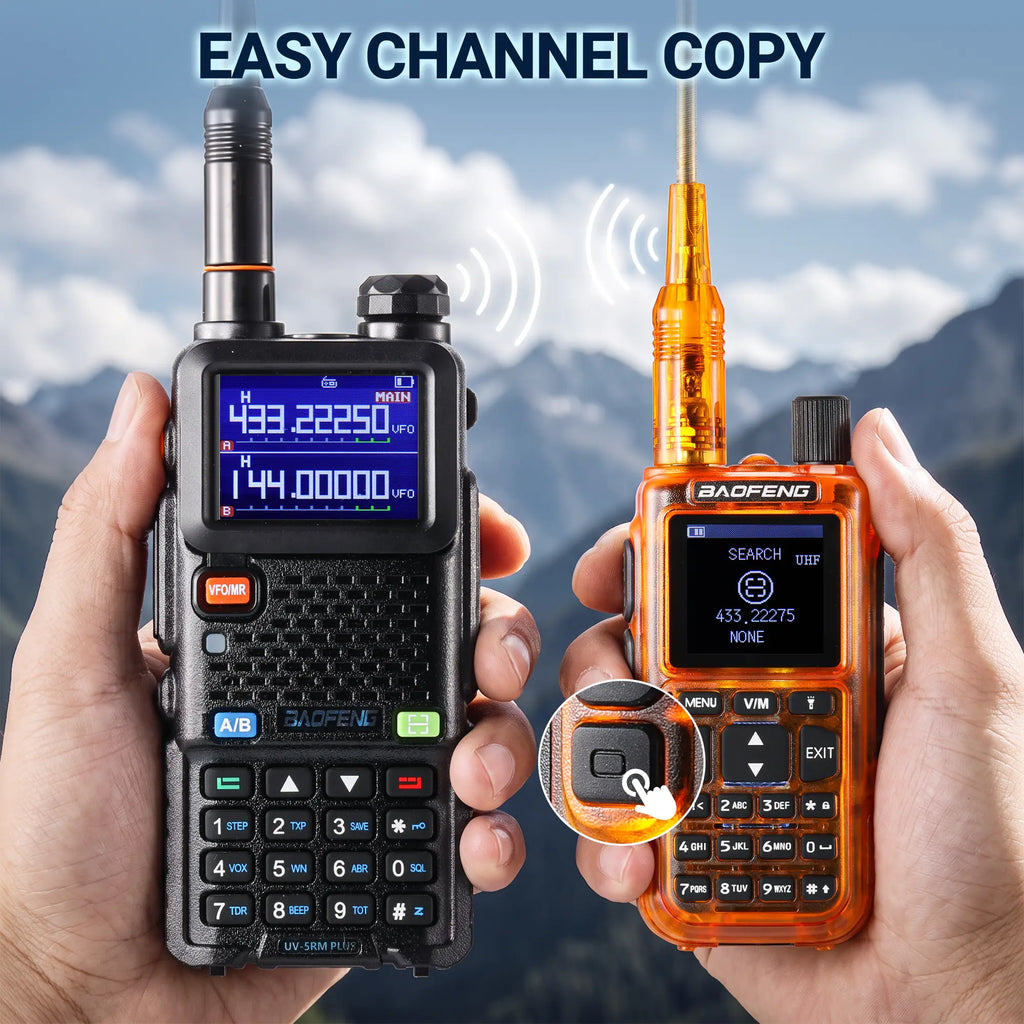

One Key Frequency Copy:

Scan a nearby analog signal to capture its frequency and CTCSS/DCS tones, then save the settings directly to a channel for faster team setup.

TX/RX Frequency Reverse:

Swap the transmit and receive frequencies on a repeater channel with one press for quick reverse-frequency checks and convenient repeater monitoring.

Daul PTT:

Transmit directly on Channel A or Channel B without switching the active display, making dual-frequency communication faster and more convenient.

Customizable Side Key:

Assign FM Radio, Scan, Frequency Search, VOX, Flashlight (Solid/Strobe), or SOS to the side key for quick access to the function you use most.

Specifications:
Transmission Frequency: US VHF 136-174 MHz & UHF 400-480 MHz | EU VHF & UHF

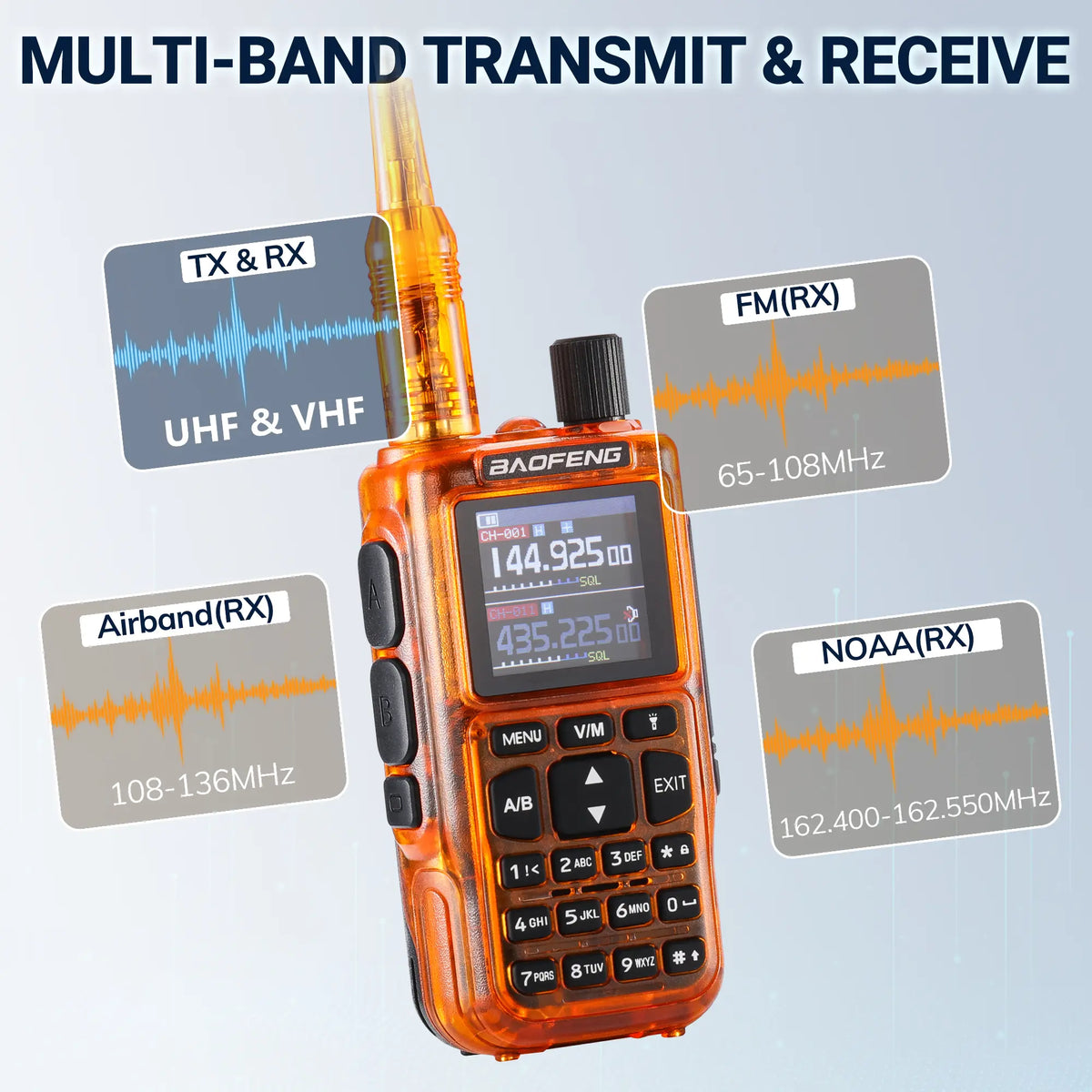

Receiver Frequency (US): FM 76–108 MHz, Airband 108–136 MHz, VHF 136–174 MHz, UHF 350–390 MHz / 400–520 MHz, NOAA
Receiver Frequency (EU): FM 76–108 MHz, Airband 108–136 MHz, VHF & UHF
Channel Spacing: 25.0 kHz (Wide) / 12.5 kHz (Narrow)
Memory Channels: 999

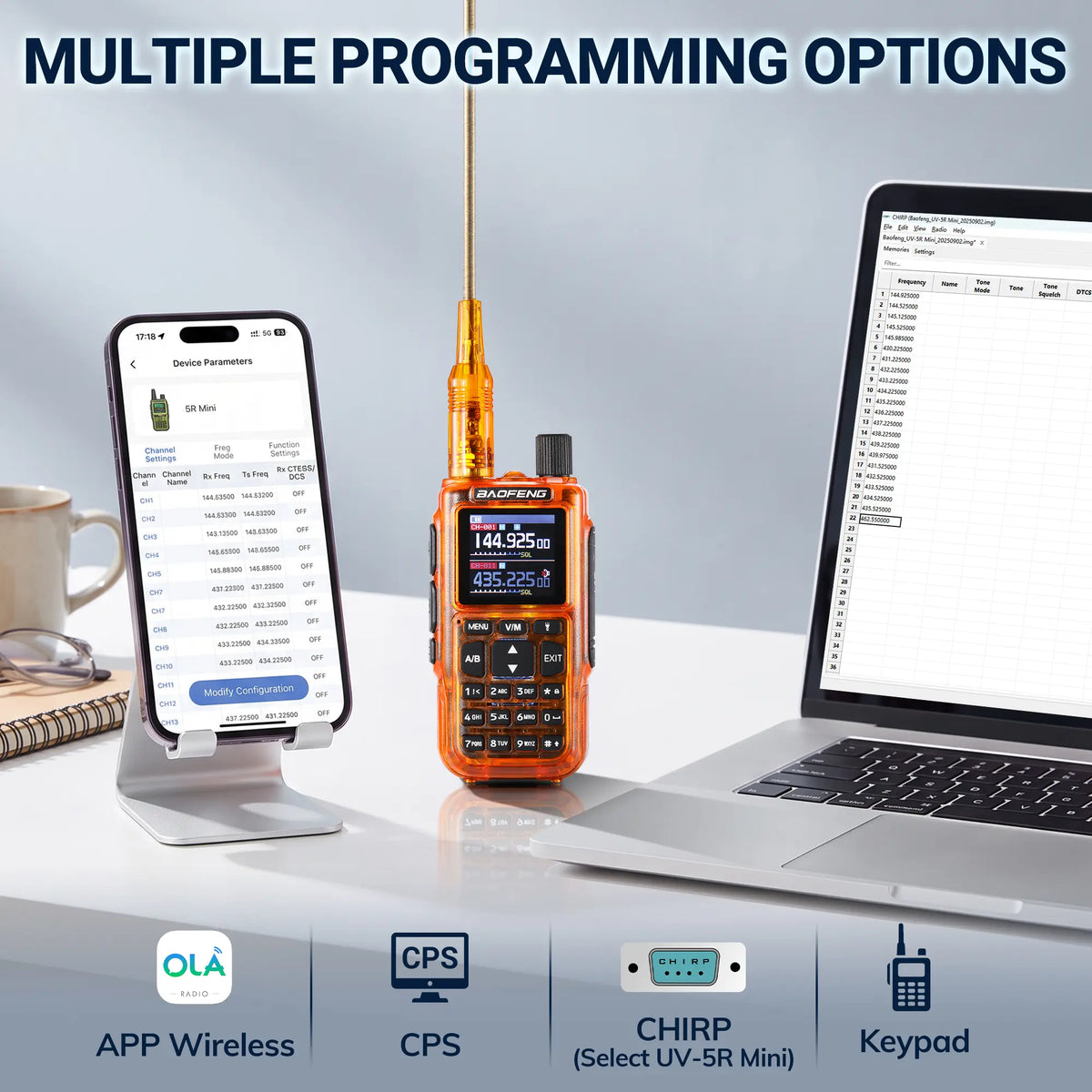

Programming App: Ola Radio (iOS & Android)
CHIRP Compatibility: Select “UV-5R Mini”
Battery: 2200 mAh Rechargeable
Charging Port: USB-C
Operating Voltage: DC 7.4 V ±10%
Transmission Current: ≤1600 mA
Antenna Impedance: 50 Ω
Accessory Connector: 2-Pin Kenwood Jack

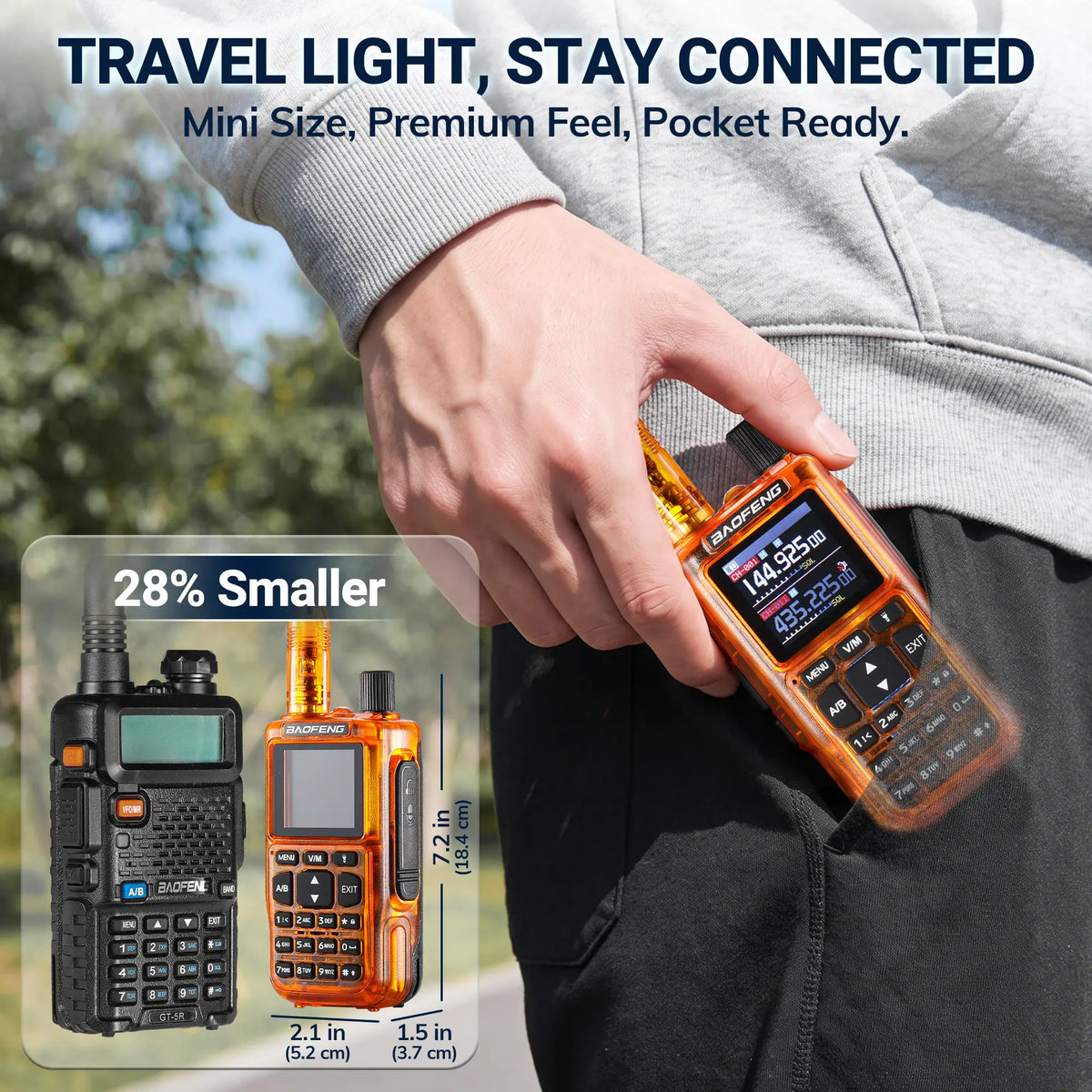

Dimensions (Without Antenna): 4.3 × 2.0 × 1.5 in / 108 × 52 × 37 mm
Weight (Including Battery): 7.5 oz / 212 g
　

QA:
Q: Do I need a license to transmit with the BAOFENG MINI-5?
A: Yes. MINI-5 is an amateur radio, and a valid amateur radio license is required to transmit on U.S. amateur frequencies.

Q: Can I program the MINI-5 without connecting it to a computer?
A: Yes. You can program the radio wirelessly through the BT app on iOS or Android devices. The one-touch frequency copy feature also lets you quickly copy a frequency from another compatible radio.

Q: How do the Dual PTT buttons work?
A: PTT-A transmits on the main channel, while PTT-B transmits on the sub channel. With Dual Watch enabled, MINI-5 can monitor both frequencies without manually switching between them.

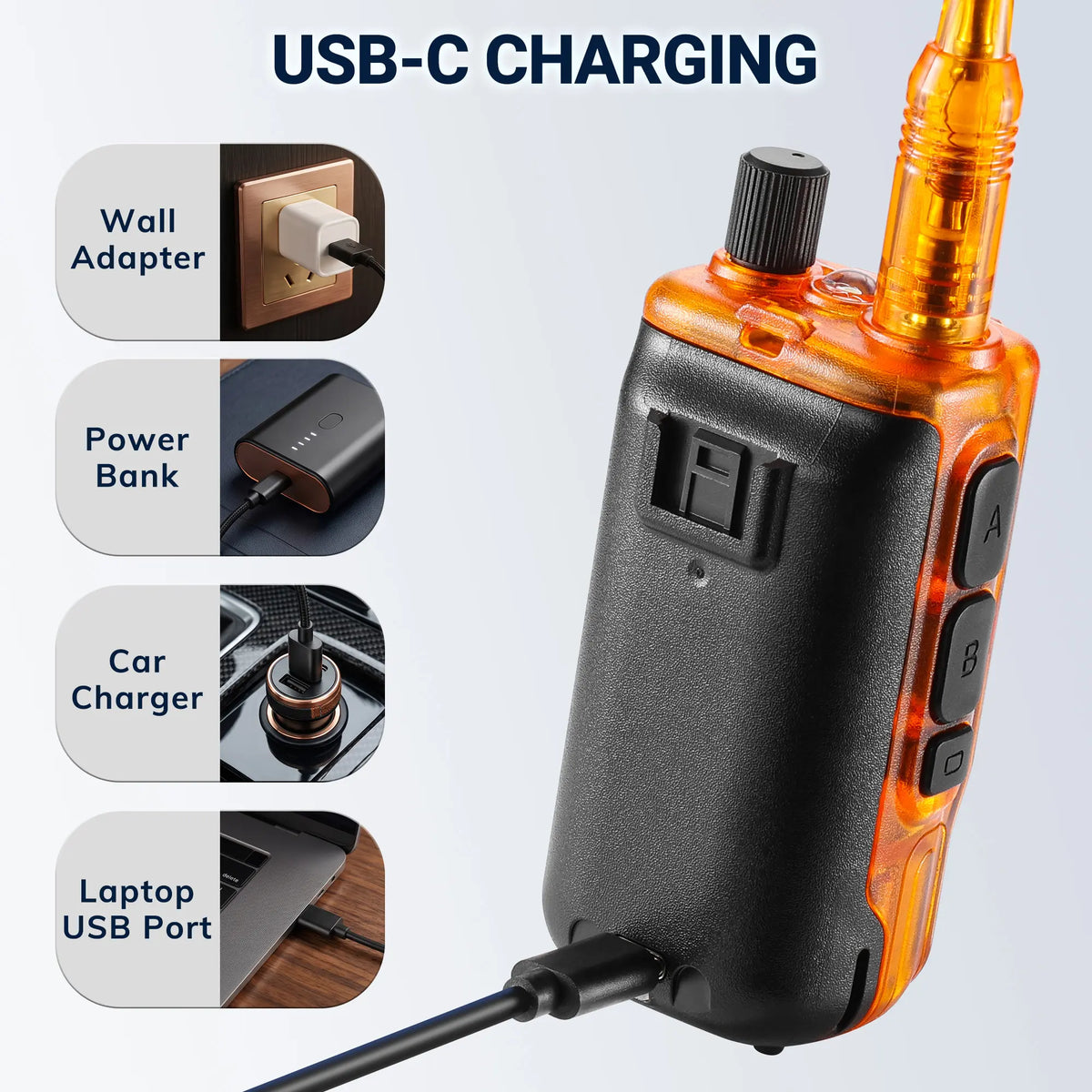

Q: How do I charge the battery, and is a wall adapter included?

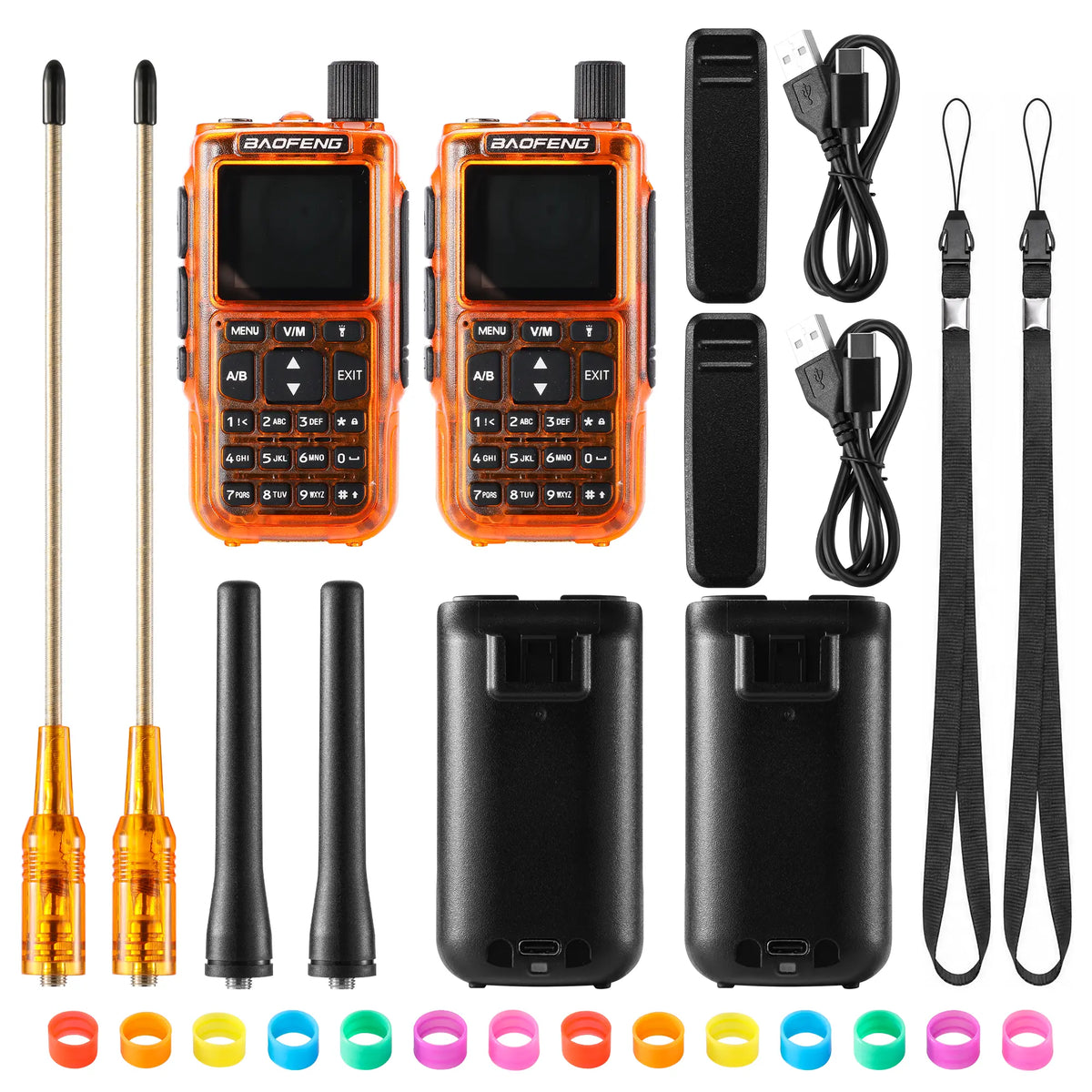

A: The 2200 mAh battery charges through USB-C. A USB-A to USB-C charging cable is included for convenient charging from a computer, power bank, or vehicle adapter. A wall power adapter is not included.
