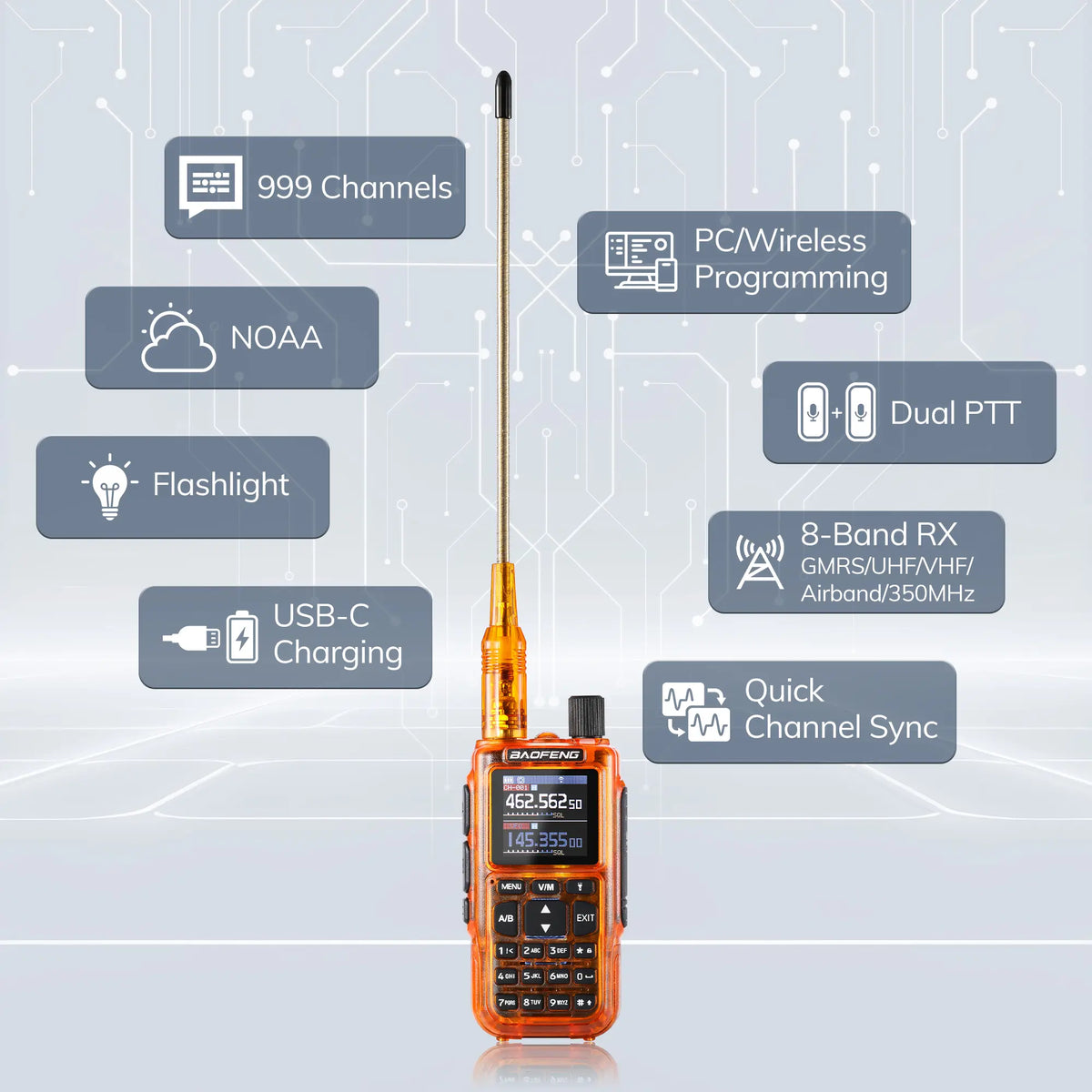

The BAOFENG MINI-5G is a compact GMRS handheld radio designed for outdoor groups, 4x4 convoys, camping, and emergency communication. Despite its small size, it features a full keypad, 1.44-inch TFT color display, 5W GMRS output, Dual PTT, and Dual Watch for flexible two-channel monitoring. With up to 999 channels and support for GMRS repeater settings, it gives users more options for everyday communication and extended coverage.

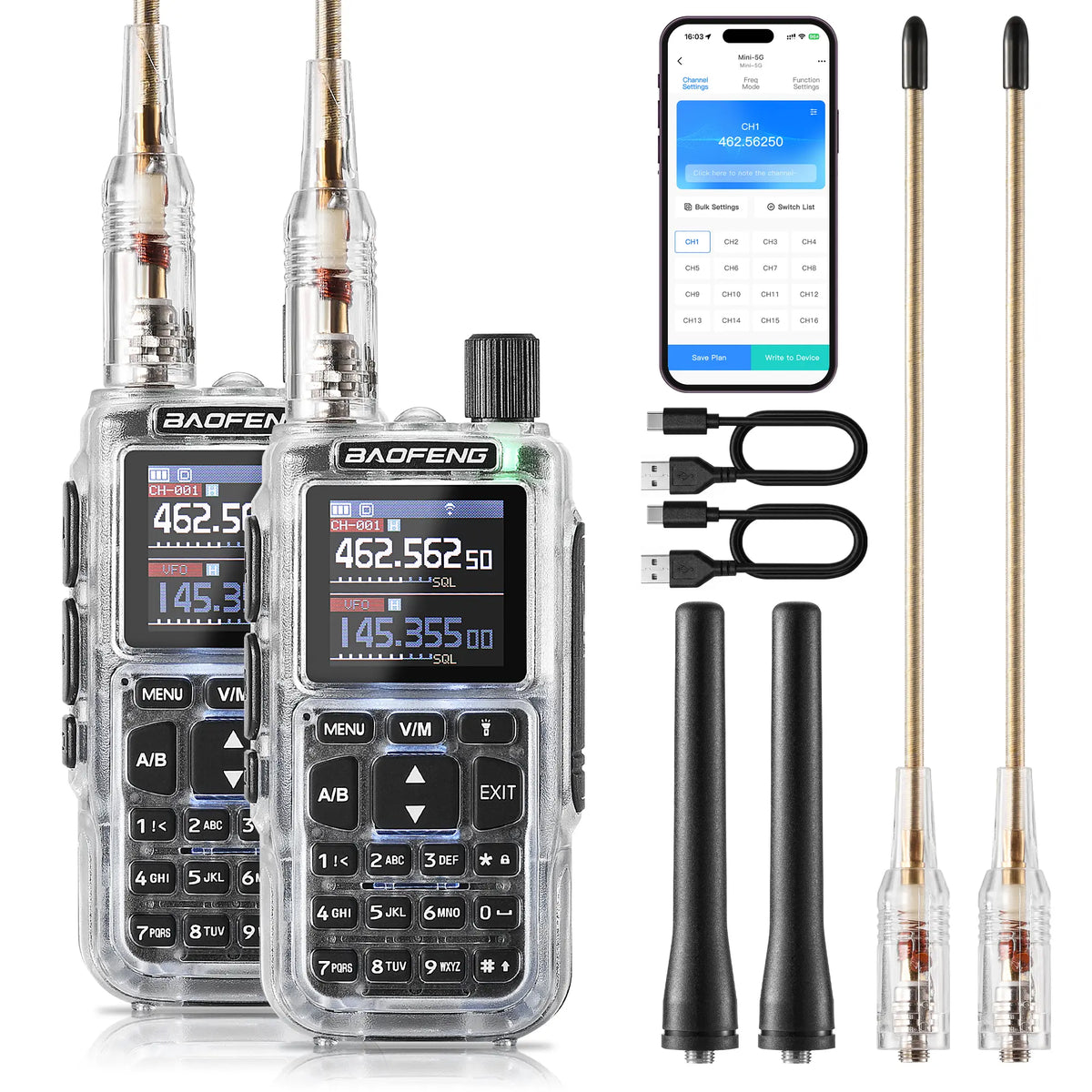

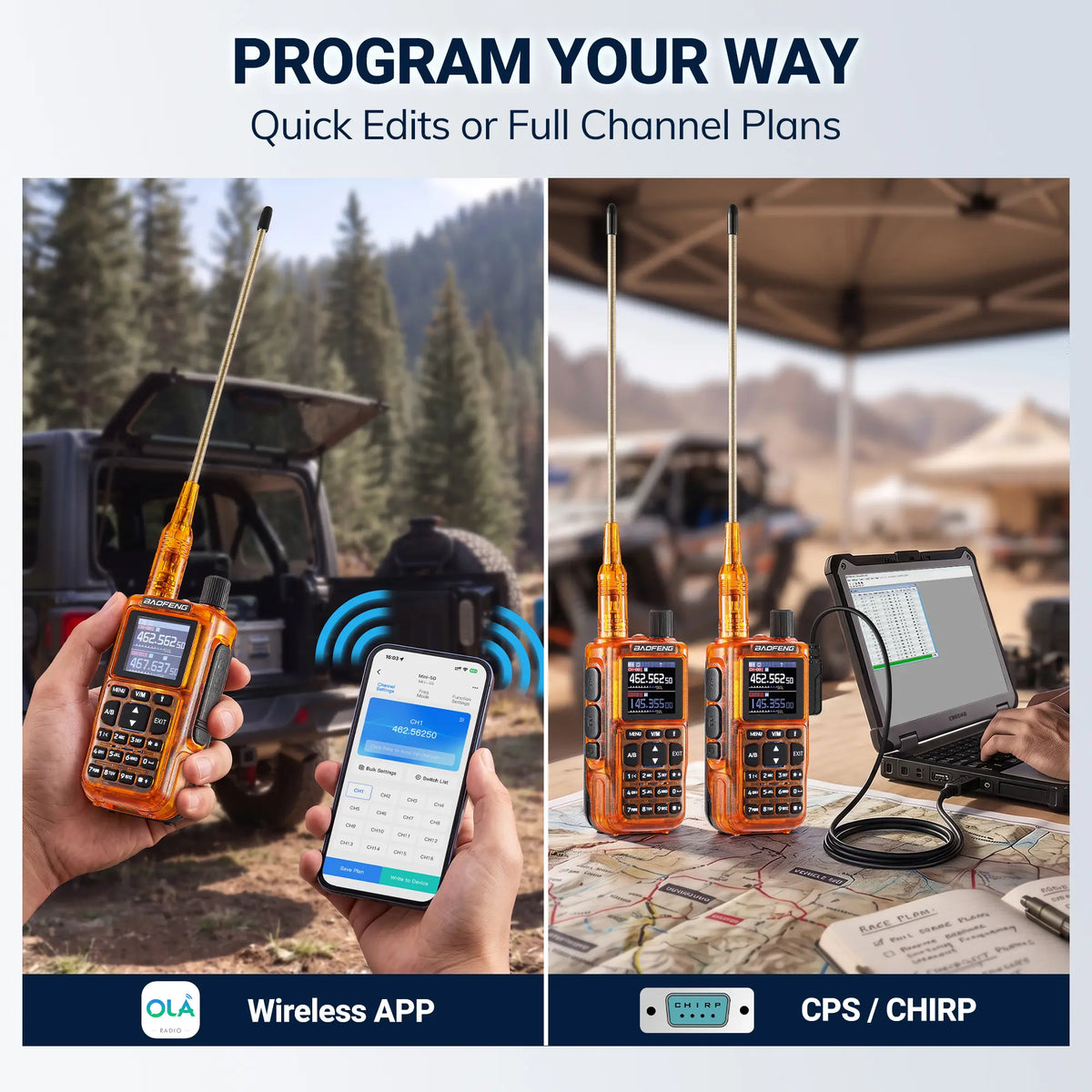

Wireless programming from a compatible iOS or Android phone makes channel setup convenient in the field, while PC programming supports larger channel plans. The wideband receiver covers FM broadcast, Airband, VHF, 350–390 MHz, UHF, and NOAA weather channels for versatile signal monitoring. Frequency Search and one-touch RX/TX Reverse further simplify channel and repeater setup, making the MINI-5G a practical compact radio for outdoor adventures and preparedness.

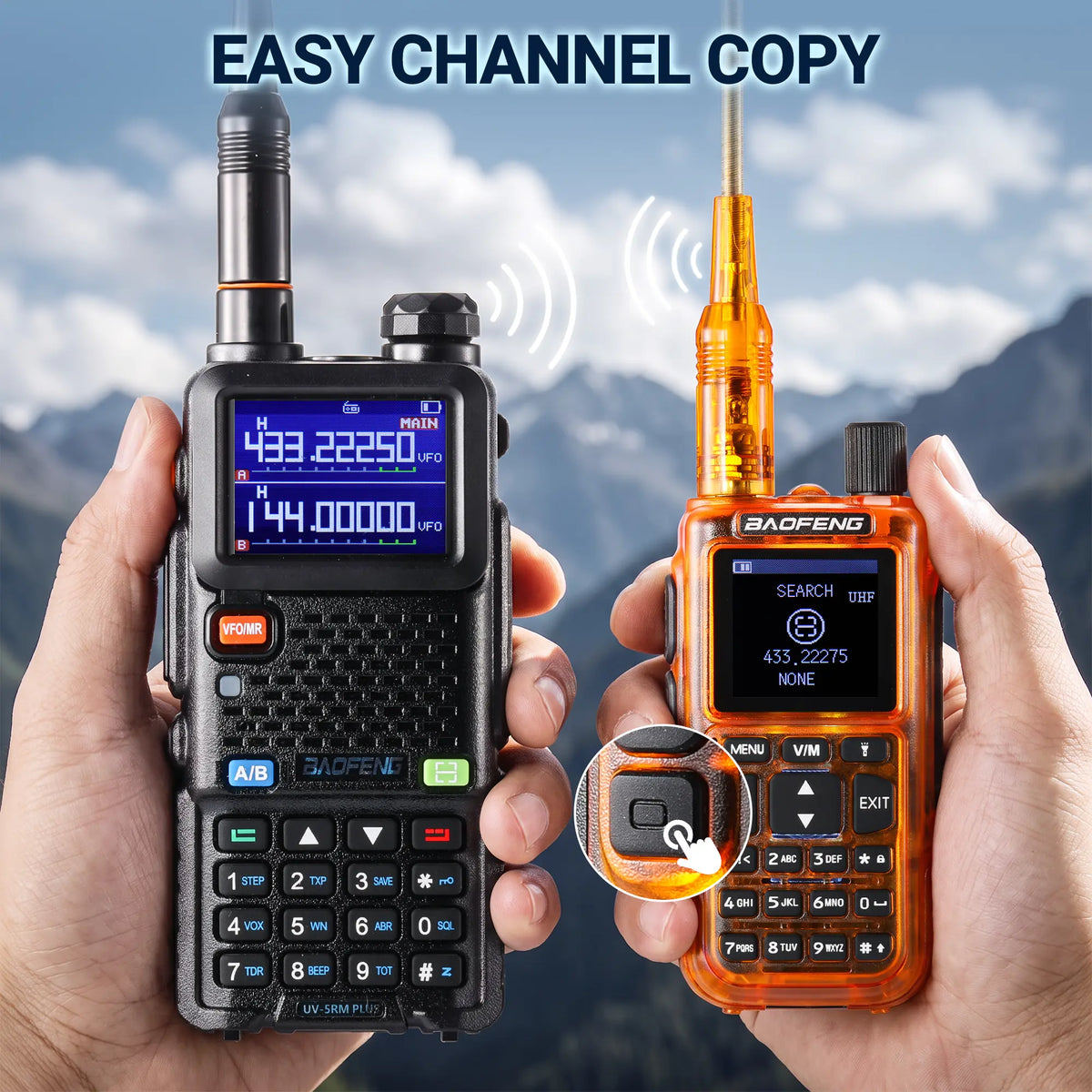

One Key Frequency Copy:
Scan a nearby analog signal to capture its frequency and CTCSS/DCS tones, then save the settings directly to a channel for faster team setup.
TX/RX Frequency Reverse:
Swap the transmit and receive frequencies on a repeater channel with one press for quick reverse-frequency checks and convenient repeater monitoring.

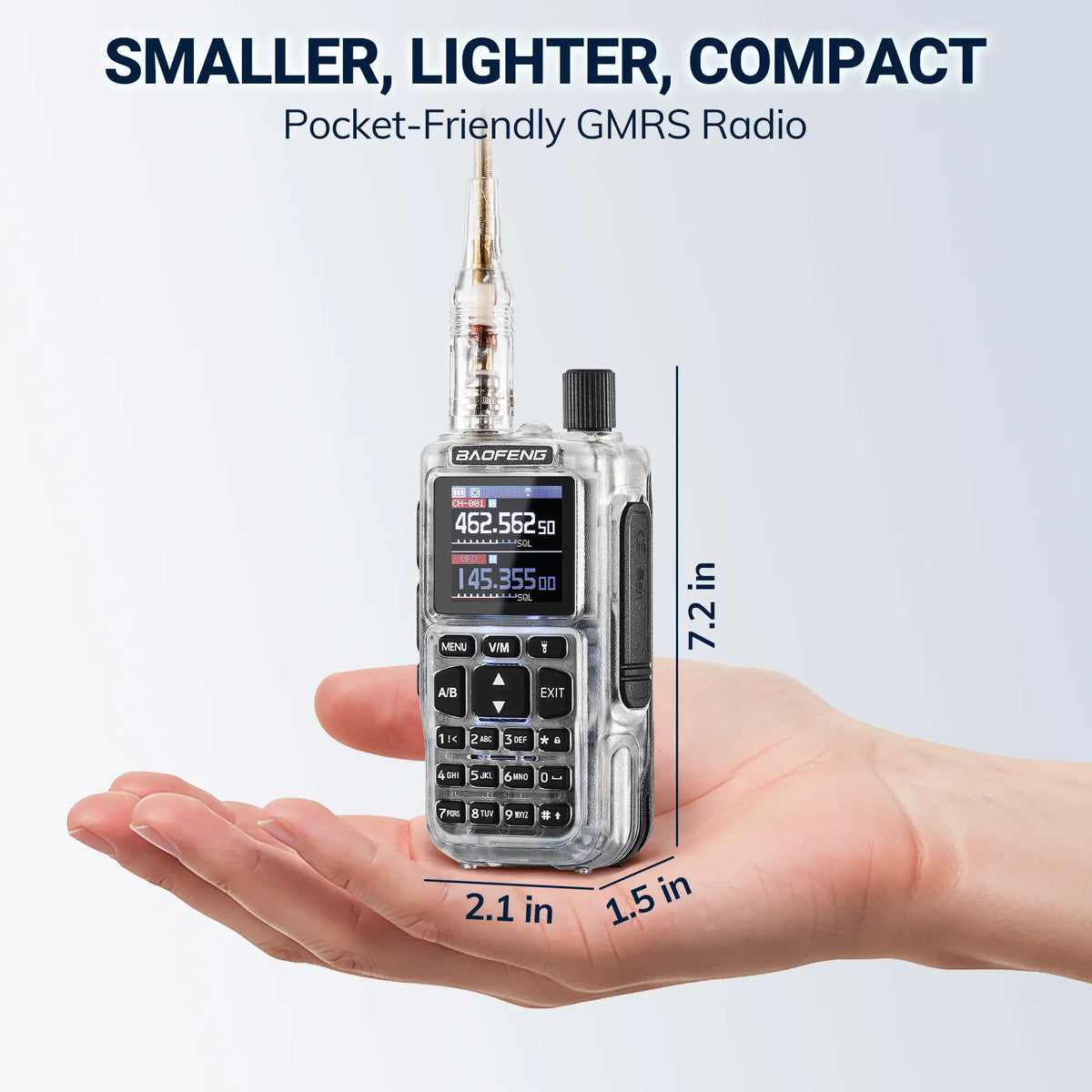

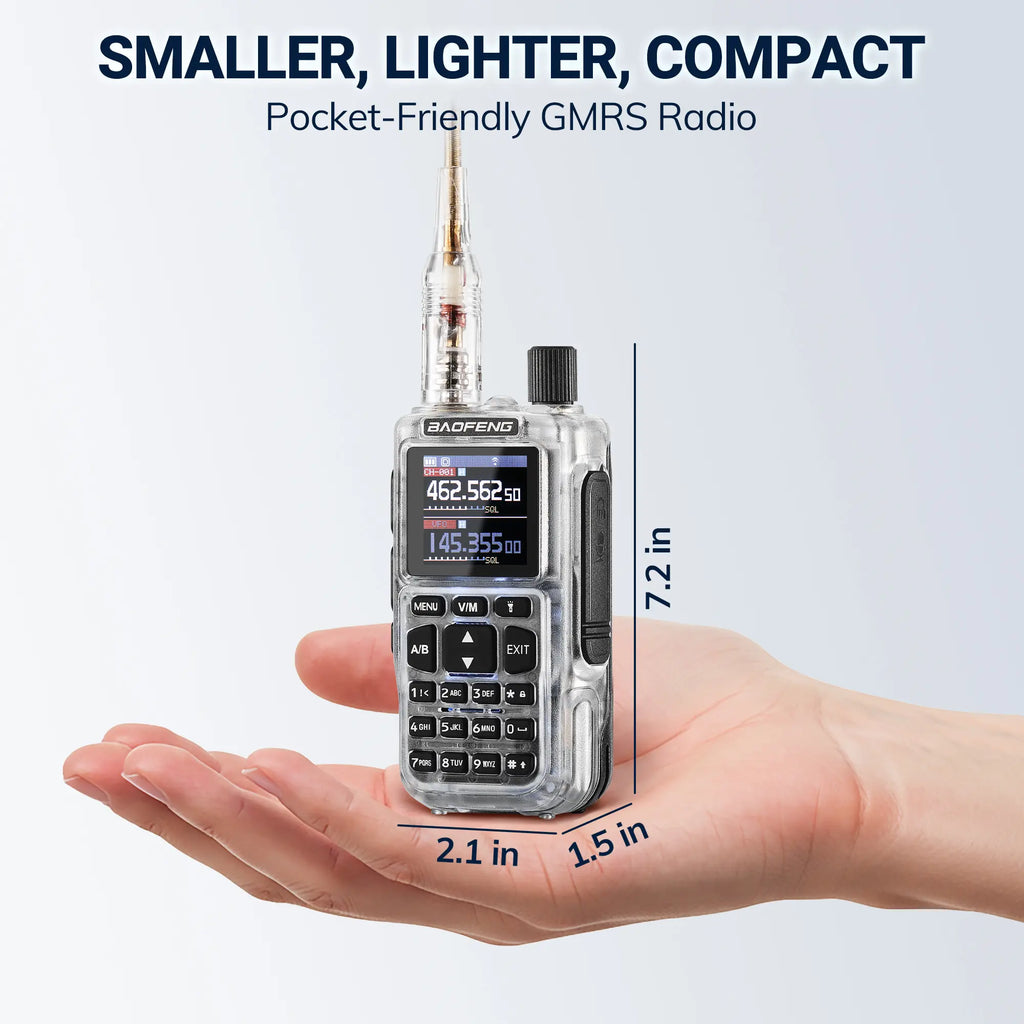

Small Size, Clear View:
A compact body makes MINI-5G easy to carry, while the 1.44" color screen provides a clear view of channels, settings, and radio status at a glance.
Customizable Side Key:
Assign FM Radio, Scan, Frequency Search, VOX, Flashlight (Solid/Strobe), or SOS to the side key for quick access to the function you use most.
Specifications:
Frequency (TX & RX): GMRS
Frequency (RX): FM 76–108 MHz; Airband: 108-136 MHz; 136-174 MHz; 350-390 MHz;
400-520 MHz; NOAA
Channel Spacing: 25.0 KHz (Wide) / 12.5 KHz (Narrow)

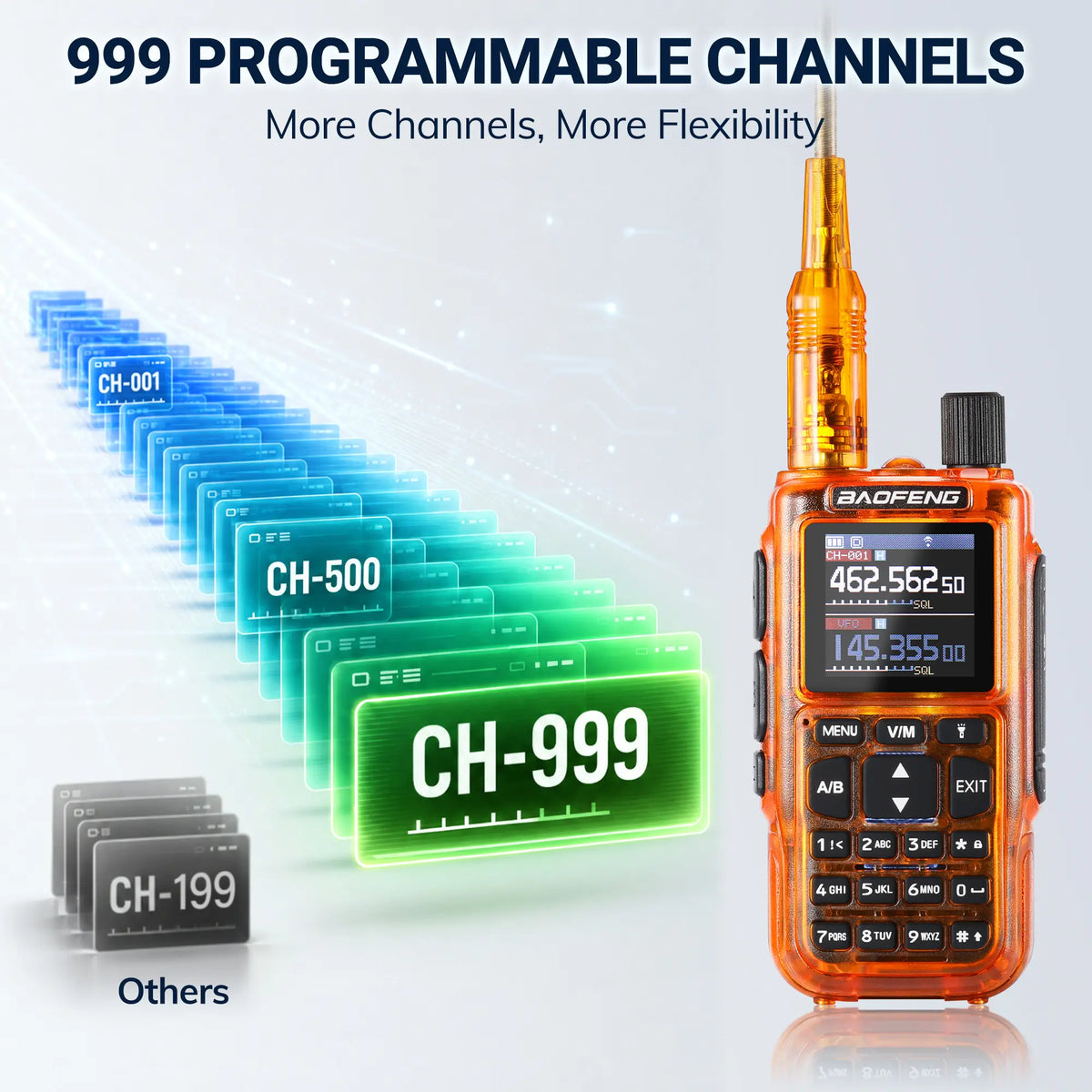

Memory Channels: Up to 999
Programming App: Ola Radio (iOS & Android)
CHIRP Compatibility: Select “UV-5G Mini”
Battery: 2200 mAh Rechargeable
Charging Port: USB-C
Operating Voltage: DC 7.4 V ±10%
Transmission Current: ≤1600 mA
Antenna Impedance: 50 Ω
Accessory Connector: 2-Pin Kenwood Jack
Dimensions (Without Antenna): 4.3 × 2.0 × 1.5 in / 108 × 52 × 37 mm
Weight (Including Battery): 7.5 oz / 212 g
QA:

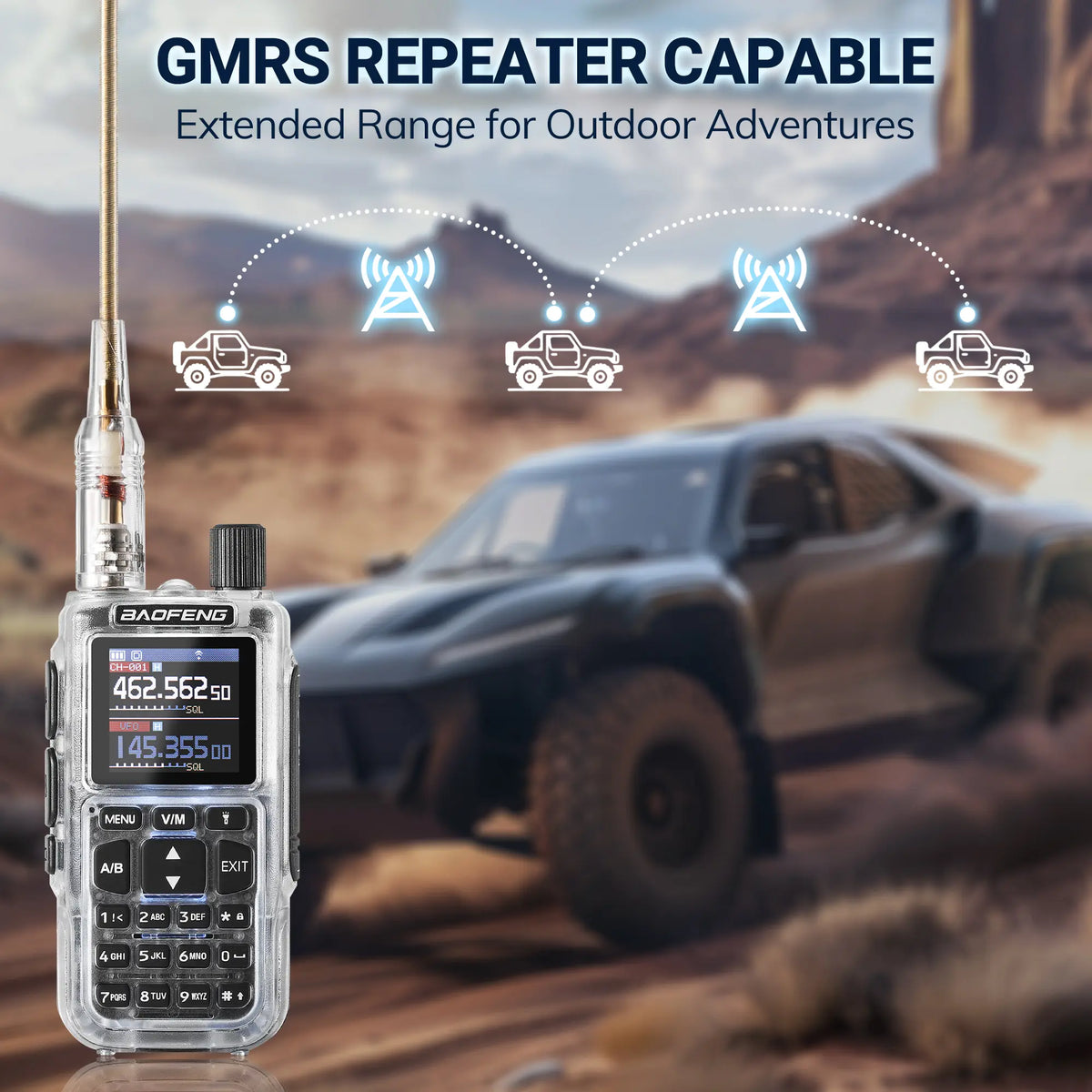

Q: Can the MINI-5G connect to GMRS repeaters?
A: Yes. The MINI-5G supports GMRS repeater operation with programmable offset
and plus/minus direction settings, allowing licensed users to configure
compatible repeater channels for extended communication range.
Q: Can I program the MINI-5 without connecting it to a computer?
A: Yes. You can program the radio wirelessly through the BT app on iOS or
Android devices. The one-touch frequency copy feature also lets you quickly copy
a frequency from another compatible radio.

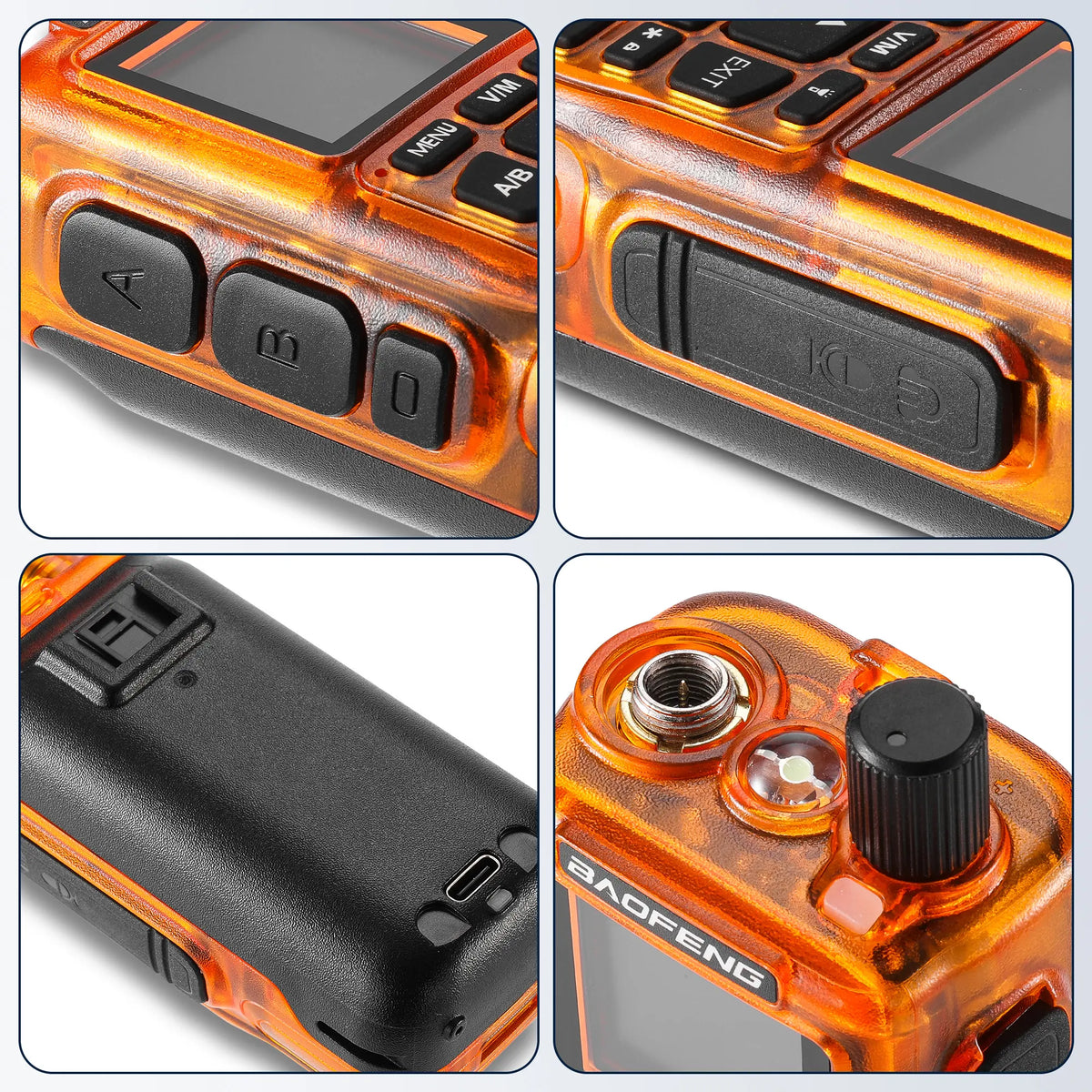

Q: How do the Dual PTT buttons work?
A: PTT-A transmits on the main channel, while PTT-B transmits on the sub
channel. With Dual Watch enabled, MINI-5 can monitor both frequencies without
manually switching between them.
Q: How do I charge the battery, and is a wall adapter included?

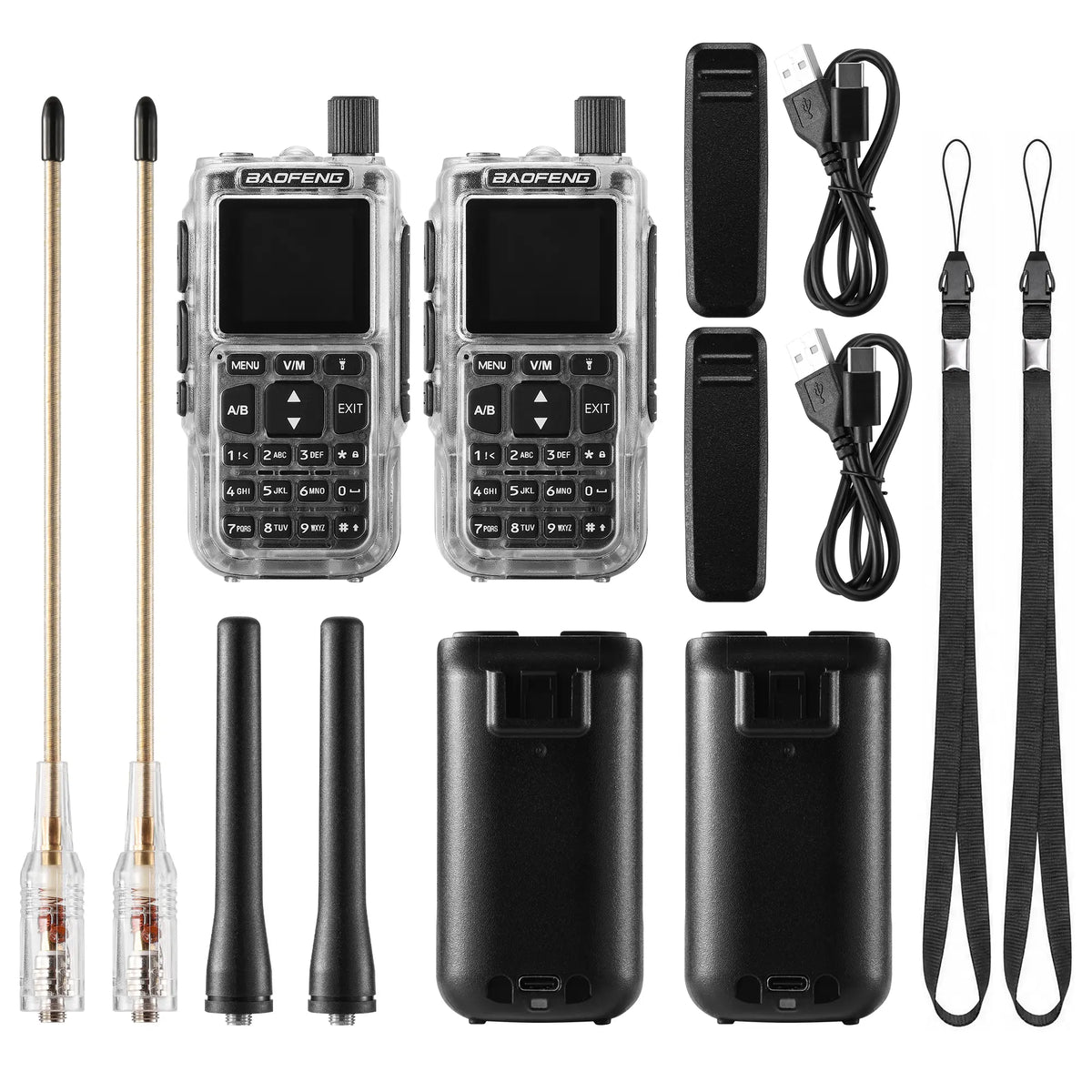

A: The 2200 mAh battery charges through USB-C. A USB-A to USB-C charging cable
is included for convenient charging from a computer, power bank, or vehicle
adapter. A wall power adapter is not included.
