DR-1801UV with cable and earphones
  • DR-1801UV with cable and earphones
  • DR-1801UV details

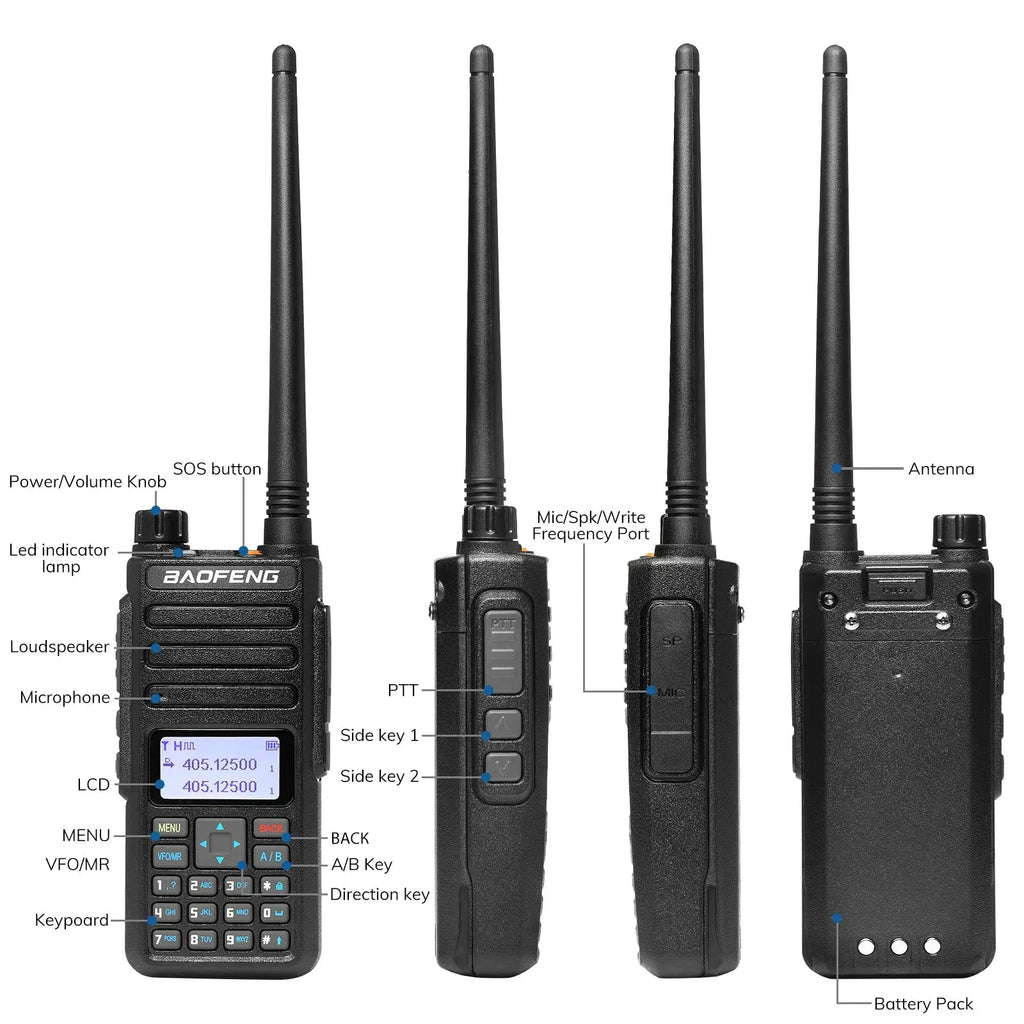

  • DR-1801UV button instructions
  • DR-1801UV with 2200 mAh battery
  • DR-1801UV total functions banner

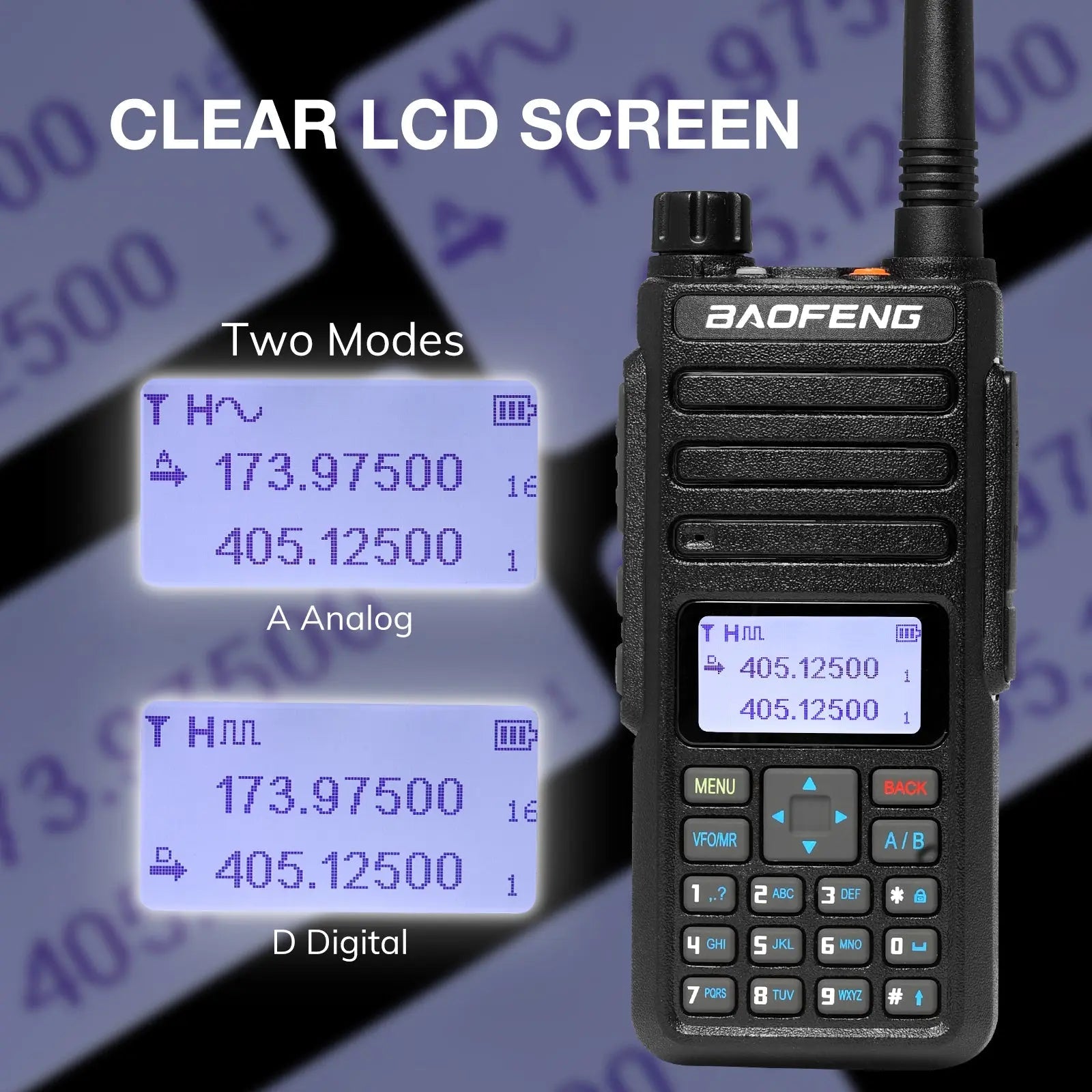

  • DR-1801UV clear LCD screen
  • DR-1801UV package content
  • DR-1801UV size & weight
DR-1801UV 5W/1W Dual Band DMR
SKU: 715-BD-DR1801
Out of stock
$73.99

[DOWNLOAD] User Manual

[DOWNLOAD] Programming Software

Digital and Analog Compatible: The DR-1801UV is compatible with digital and analog modes, and you can switch to either one anytime. This ham radio handheld supports dual-band, dual standby, and dual display as well. FCC Certification ID: 2AJGM-DM1801.

Highly integrated multifunction: The DMR radio has channels scan, manual programming, DTMF, VFO, SMS, emergency alarm, digital remote monitor mode, CTCSS and DCS, and DMR encryption functions. There are 4 customized keys for faster access to those features.

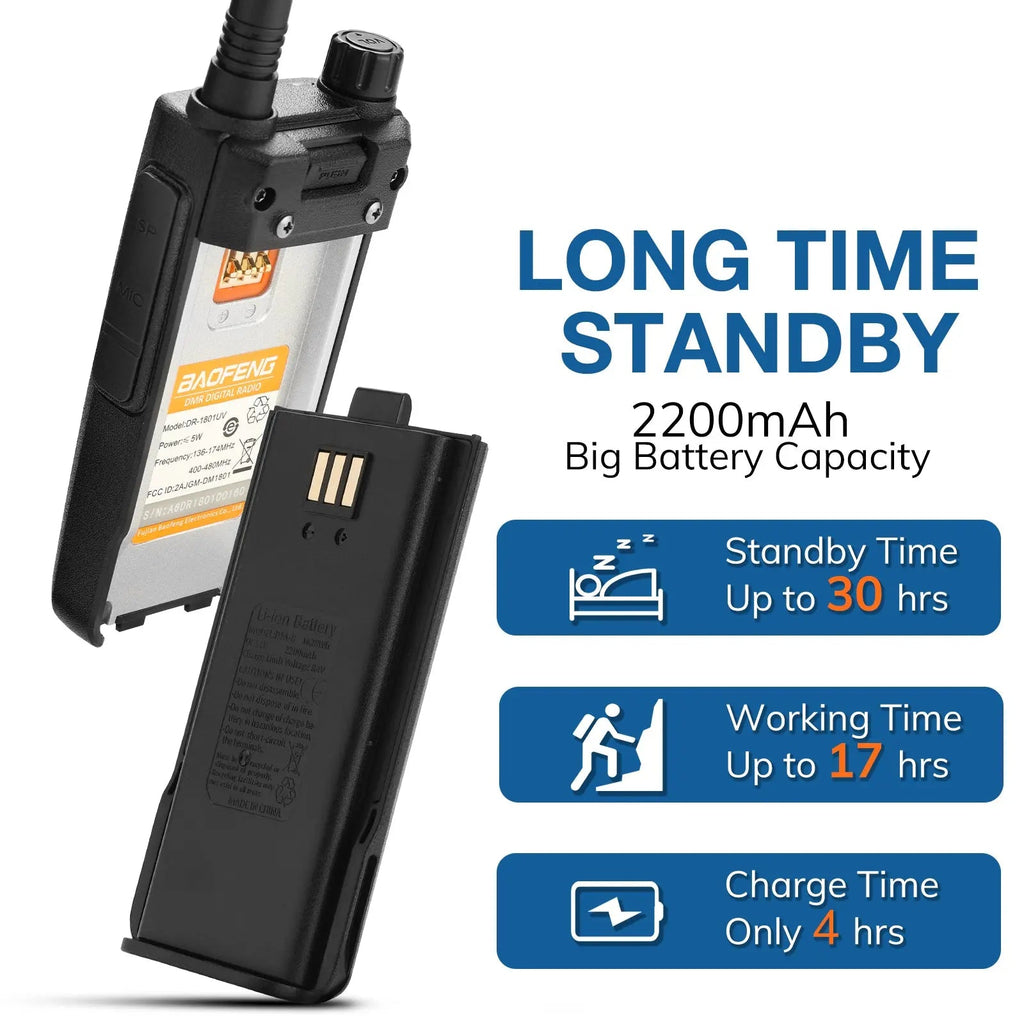

Long Endurance and Long Standby: DR-1801UV has high-performance energy saving and power saving. The 2200mAh battery supports up to 17 hours of working time and 30 hours of standby time and can be fully charged in only 4 hours.

DMO True 2 Time Slot: Direct mode dual slot communication achieves two groups of calls at a frequency point at the same time, so that the communication efficiency is doubled and frequency resources are saved. Compatible with MOTOTRBO Tier I & II and other DMR radios.

Fully Functional Accessories: DR-1801 is compatible with a universal K-plug programming cable for easier PC programming and PTT earpieces for private and clear conversation.

Details
What's in the Box
Compare Chart
Review
BAOFENG DR-1801 | High-Efficiency Call BAOFENG DR-1801 | Long Communication Range BAOFENG DR-1801 | SMS Function

High-Efficiency Call

This DMR two-way radio support single call, group call, and cluster call, and they can be set according to requirements. This function can improve your working efficiency.

Long Communication Range

The strong DMR radio’s talking range can be up to 6.2 miles, which is suitable for multiple situations, like catering service, commerce, and warehouse management.

SMS Function

It is equipped with a display screen and full keyboard to support 64-character short message sending and receiving text editing and draft box function.



Specification

  • Output Power: 5W/1W
  • Frequency Range:VHF 136-174MHz &UHF 400-470MHz
  • Storage channel: 1024
  • Operating Voltage:DC 7.4V
  • Frequency Stability:±1.0ppm
  • Operating Temperature:-30°c ~ 60°c
  • Antenna Impedance:50Ω
  • Battery Capacity:2200mAh/16.28wh
  • Weight: 274g/0.6lb

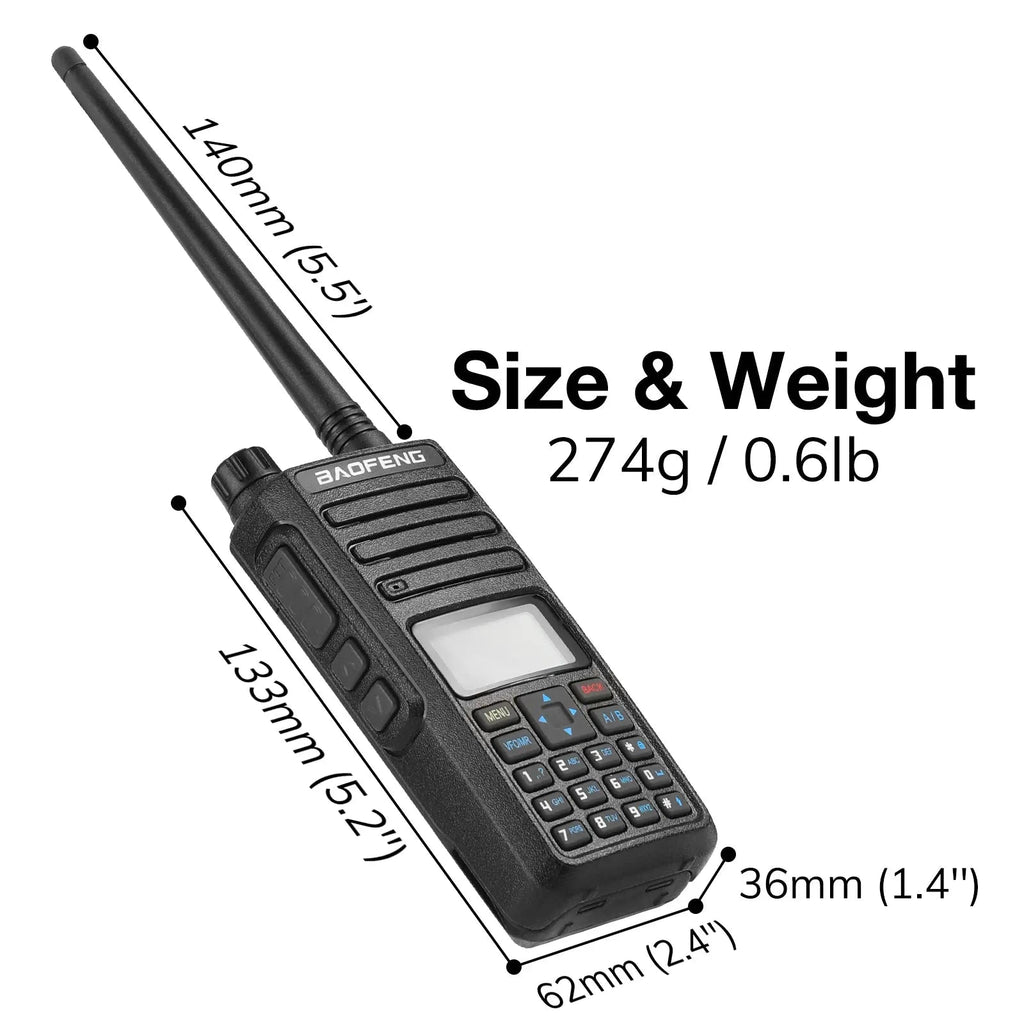

  • Volume: 133x62x36mm/5.2x2.4x1.4’’(antenna 14cm/5.5’’ not including)

Features:

  • 1024 channel storage, 1024 digital contacts can be mannually programmed
  • DMO True 2-Slot Two time slots
  • Rich digital signaling
  • Digital and analog compatible, smooth transition
  • SMS function
  • Excellent sound quality compatible with Motorola: uses advanced AMBE+2TM voice processing technology to achieve excellent call quality
  • Digital encryption function
  • Digital alarm function, protect the safety of the team
  • Support DMR system, easy to interconnect

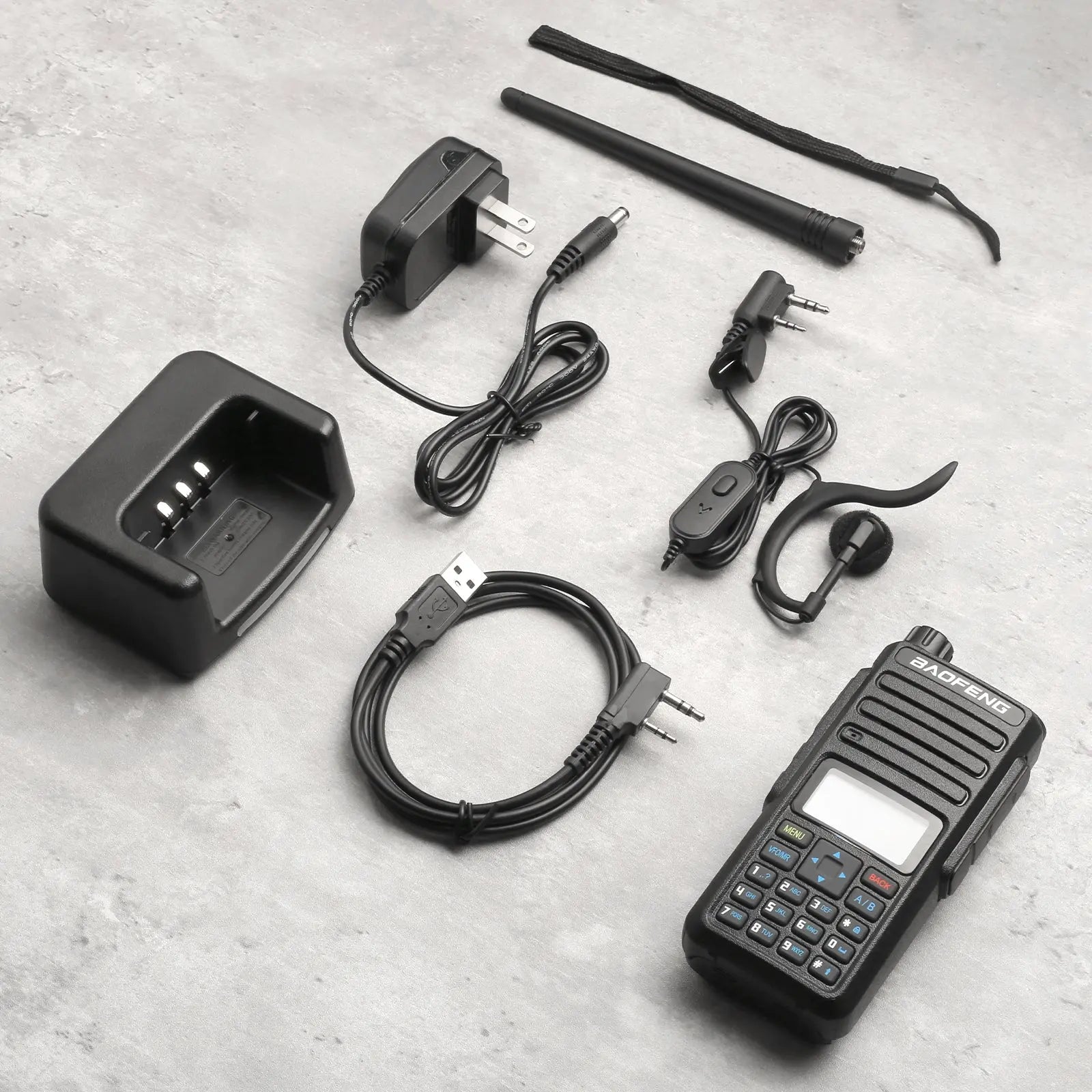

What's in the Box

  • 1 x BAOFENG DR-1801UV DMR
  • 1 x Antenna
  • 1 x Battery Charger
  • 1 x Belt Clip
  • 1 x Instruction Manual
  • 1 x Li-ion Battery Pack
  • 1 x AC Adaptor
  • 1 x Hand Strap
  • 1 x Programming Cable
  • 1 x Earphones
