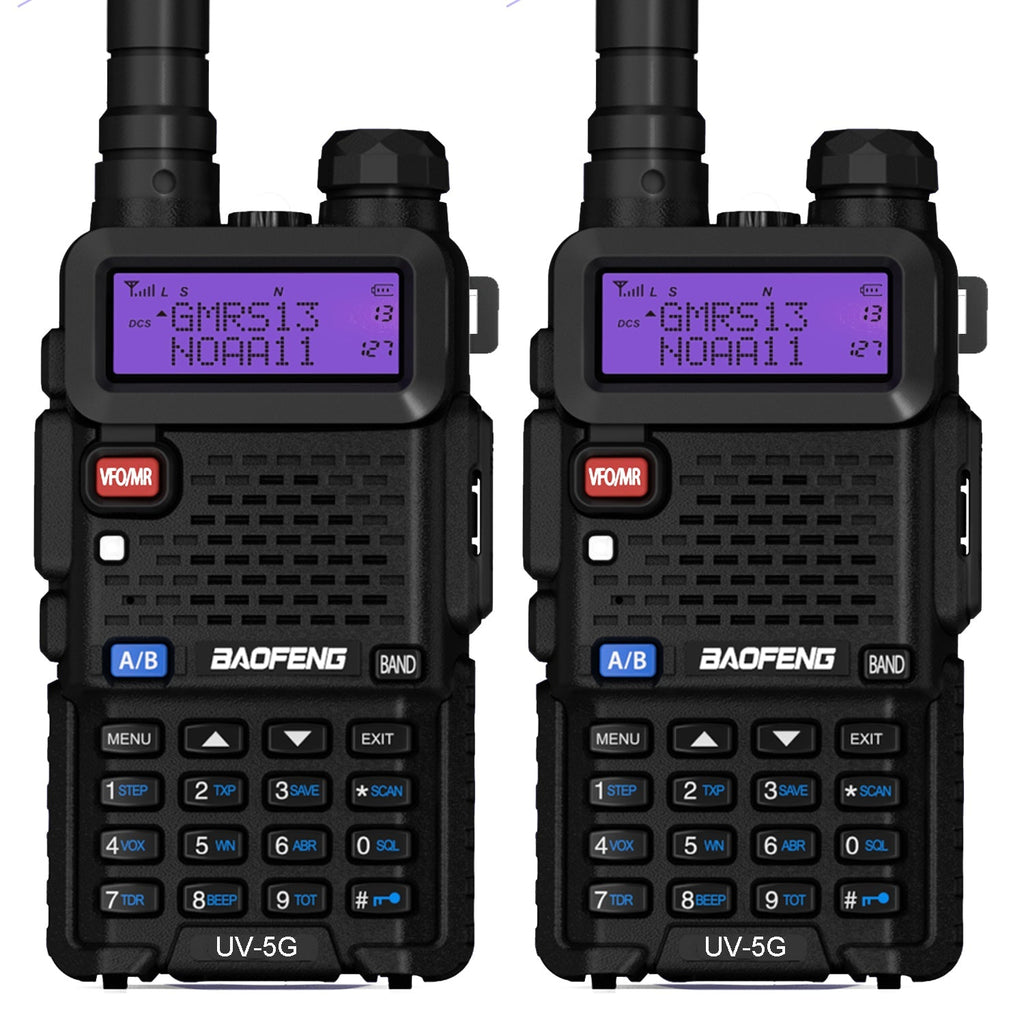

Front view of the UV-5G (UV-5X)
SKU: 715-100-UV5X*SEC
Out of stock
Sale price  $25.99 Regular price  $49.99
0% OFF
Quantity

This UV-5G (UV-5X) is an OPEN-BOX, not brand new.



[DOWNLOAD] User Manual

[DOWNLOAD] Programming Software

[DOWNLOAD] CHIRP (Quick Programming)



[2021 New GMRS] The Baofeng UV-5G is the GMRS version of the classic model UV-5R. It features 30 GMRS pre-programmed channels + 11 NOAA channels. These radios are ready to go, right out of the box. A GMRS license is required. FCC ID: 2AN62-UV5G. Sold in a package of 2 radios, good things always come in pairs.

[Longer Talking Range] The UV-5G GMRS is repeater capable and has the 8 repeater pairs programmed in from Channel 23 to 30. GMRS power levels and the wide-band capable signal will allow a further talking range than FRS radios. When used with a GMRS Repeater, the range is greatly increased.

[Classic Design] Compatible with BL-5L 3800mAh extended batteries as well as other accessories of UV-5R series, except antenna. Works well with Six-way Charger.

[NOAA Scan & Receiver] Always one step ahead of the terrible weather. The NOAA feature automatically scans and receives weather reports from the channel, letting you know when bad weather is coming. An alternative communication option in case of disaster when cell towers are always overloaded. Use it as your emergency radio!

[Simple Operation] Easy to read with tri-color display. Most basic settings are accessed via the Menu and Keypad. Features 9 sensitivity levels for VOX hands-free operation. 128 Channels, 50 CTCSS tones, and 104 DCS Digital Coded Squelch choices. More advanced settings are available when connected to your computer.

Details
What's in the Box
Compare Chart
Review

This UV-5G is an OPEN-BOX, not brand new. It may have damaged packaging and is not suitable to be sold as brand new. This open box is inspected to be working by the BAOFENG quality team. Wish our radio can get a second chance on your hand.

Comes with a 6-month limited warranty. If the item is defective on arrival for some unexpected reason, please contact support@baofengradio.com.

Final sale: any other discounts cannot be applied. Not eligible for any return or refund.



Why choose GMRS over FRS?

GMRS repeater capable. UV-5G, the long distance walkie talkies, can take advantage of GMRS repeaters to get a more powerful, further-ranging signal. -- This is not an option with FRS radios. GMRS radios allow Wide-band FM to provide a louder and clearer signal than the FRS radios restricted to Narrow-band FM with a lower power rating. The UV-5G provides more selectable channels than FRS radios, more CTCSS and DCS tone options to reduce unwanted signals.

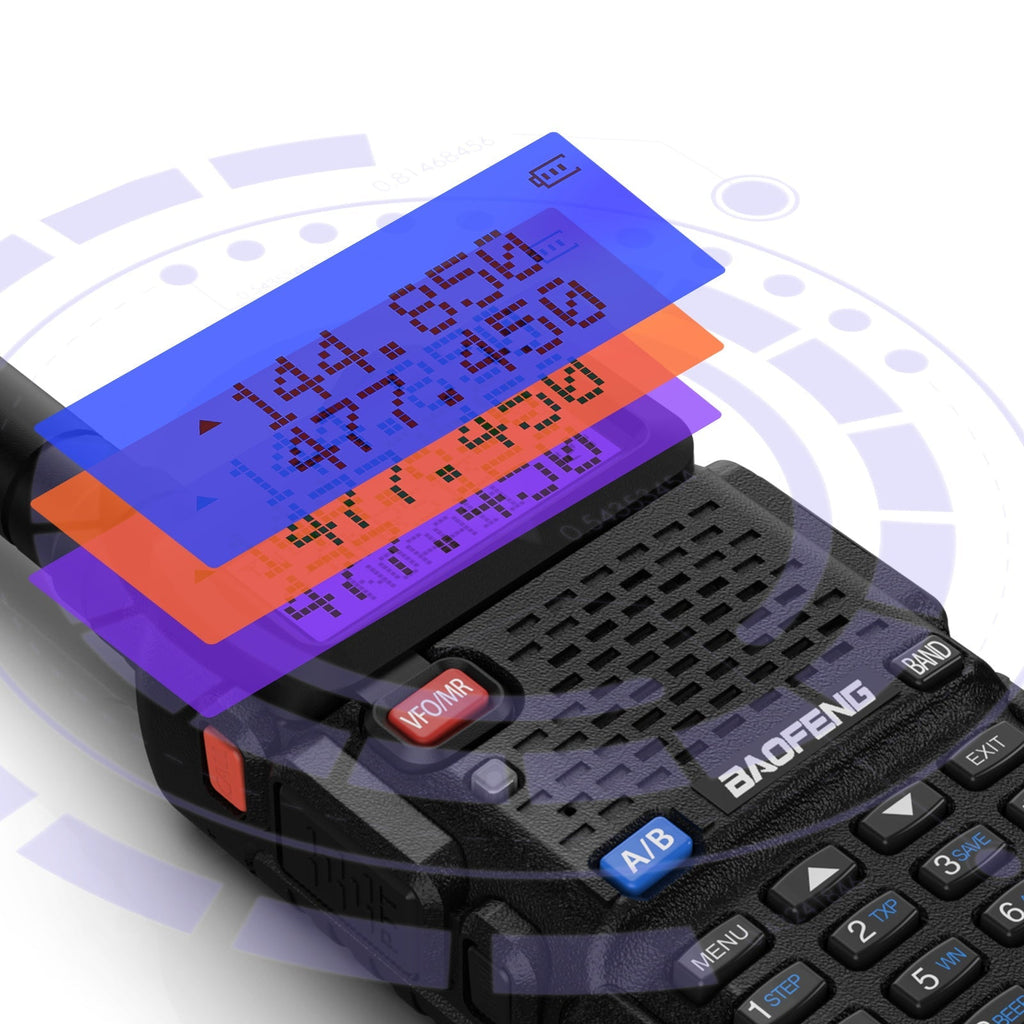

UV-5G supports 3 colors display
UV-5G | Cross Compatible

Cross Compatible

Compatible with all accessories of UV-5R ham radio series, such as 3800mAh battery. Easy to find backup parts on market or from your previous radios.

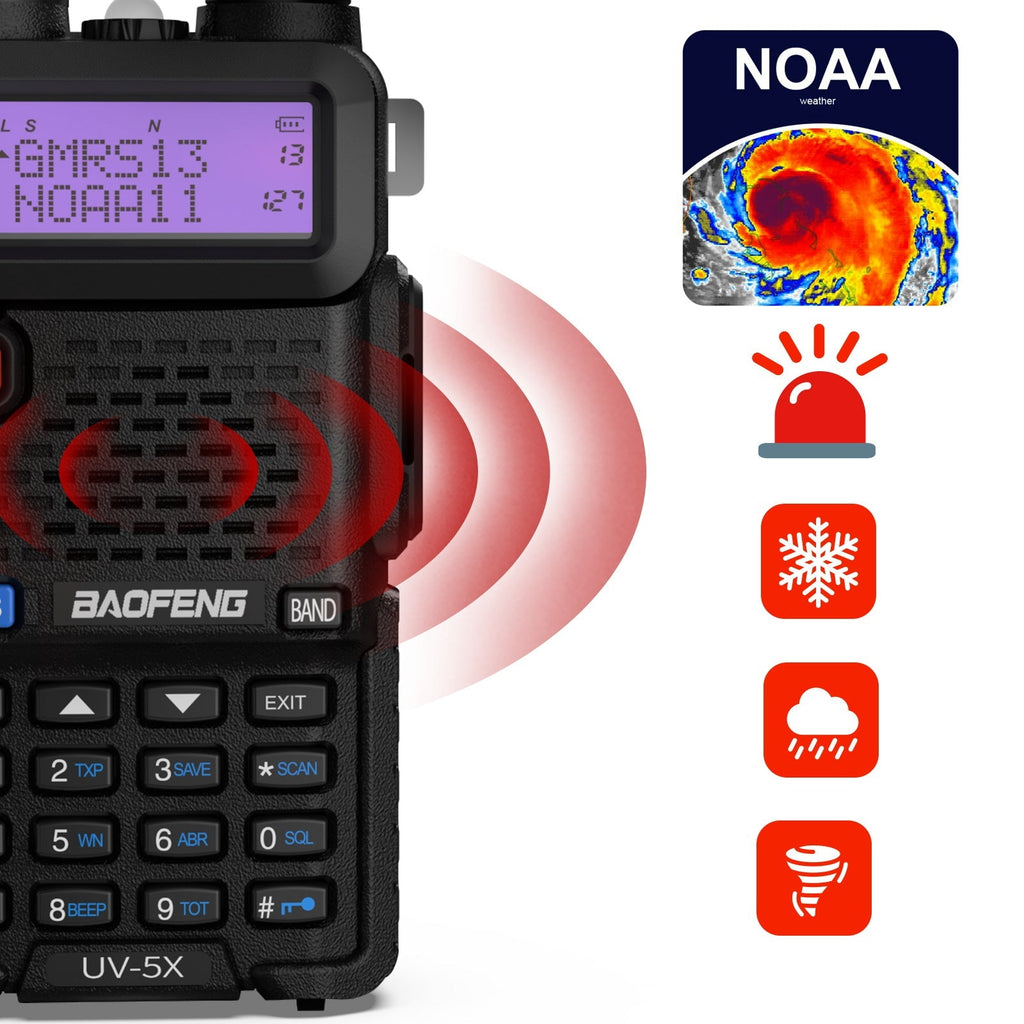

UV-5G | NOAA Weather Scanning

NOAA Weather Scanning

UV-5G automatically scans 11 NOAA weather channels. On call 24/7 with updated severe weather reports so you're always up to date on the latest weather conditions.

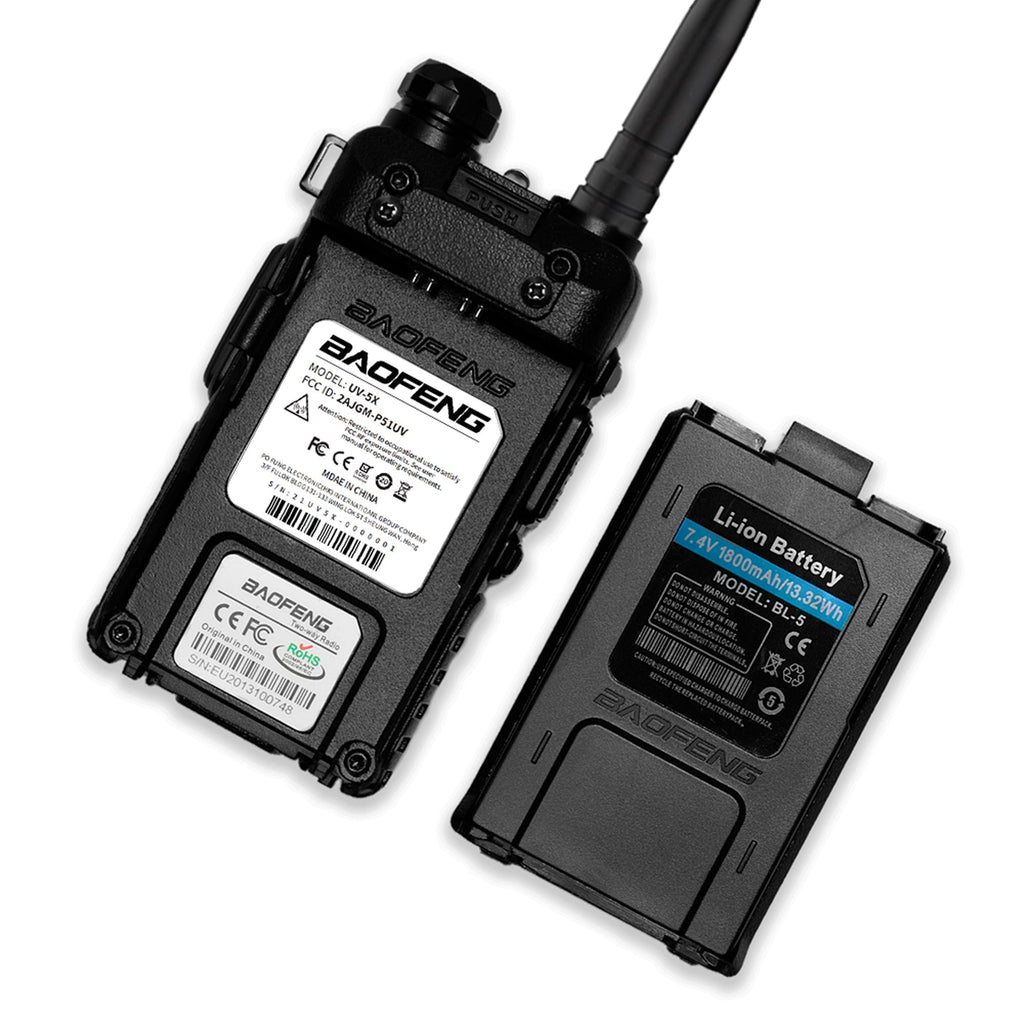

UV-5G | with battery

"WHY I RECEIVED UV-5G INSTEAD OF UV-5X AS I ORDERED?"

Many customers used to be confused by UV-5X (GMRS version) and UV-5X (U/V version). So BAOFENG changes UV-5X to UV-5G and re-certified the FCC ID as 2AN62-UV5G. In essence, now UV-5X and UV-5G are both the latest upgraded version of the inventory, with the same hardware and software configuration.

General Specification
Frequency Range GMRS (RX & TX)136-174/400-520MHz(RX)
Memory Channel 30 GMRS + 11 NoAA Weather Channels + 128 Scanner
Operation Voltage DC 7.4 V ±10%
Battery Capacity 1800mAh (Li-Ion)
Frequency Stability ±2.5ppm
Operating Temperature -20℃ to +50℃
Mode of Operation Simplex
Antenna Impedance 50ohm
Transmitter Specification
RF Output Power ≤5W(GMRS)
FM Modulation 11K0F3E@12.5KHz
Adjacent Channel Power 60dB @ 12.5KHz
Transmission current ≤1500mA
Receiver Specification
Receive Sensitivity 0.25μV (12dB SINAD)
Adjacent Channel Selectivity ≥55dB@12.5KHz
Inter Modulation and Rejection ≥55dB@12.5KHz
Conducted Spurious Emission ≤-57dB@12.5KHz
Rated Audio Power Output 1W @16 ohms
Receive current ≤380mA
Rated Audio Distortion ≤5%

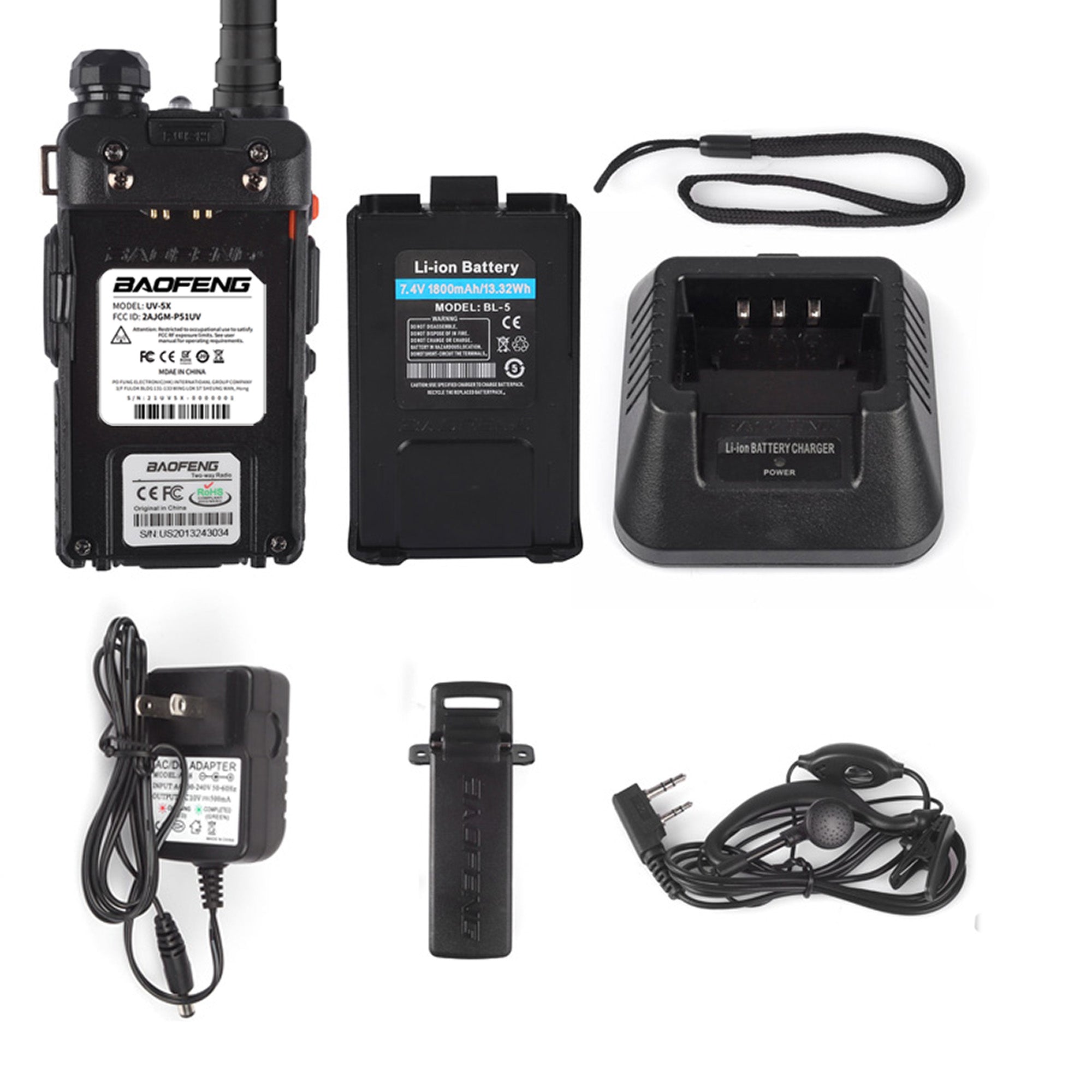

What's in the Box

  • 2 x Baofeng UV-5G (UV-5X) GMRS Radio
  • 2 x 7.4V 1800mAh Li-ion Battery
  • 2 x Earphone Mic/Headset
  • 2 x Desktop Charger
  • 2 x Adapter
  • 2 x Belt Clip
  • 2 x Hand Strap
  • 1 x User Manual
