UV-5G 5W GMRS Radio Long Antenna Set [2 Pack] with programming cable

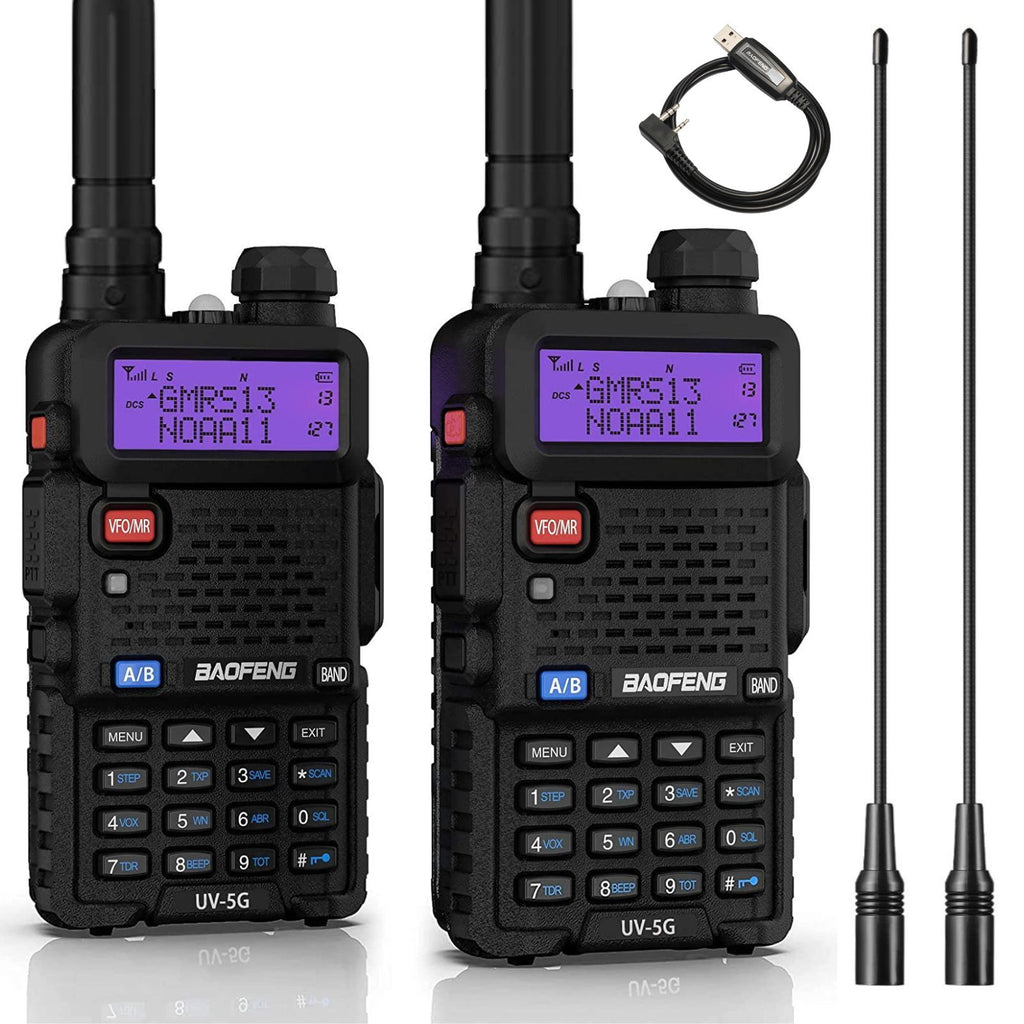

  • UV-5G 5W GMRS Radio Long Antenna Set [2 Pack] with programming cable
  • UV-5G supports Chirp
  • UV-5G 5W GMRS Radio Long Antenna Set [2 Pack] package content
  • UV-5G with 15.5'' high gain antenna

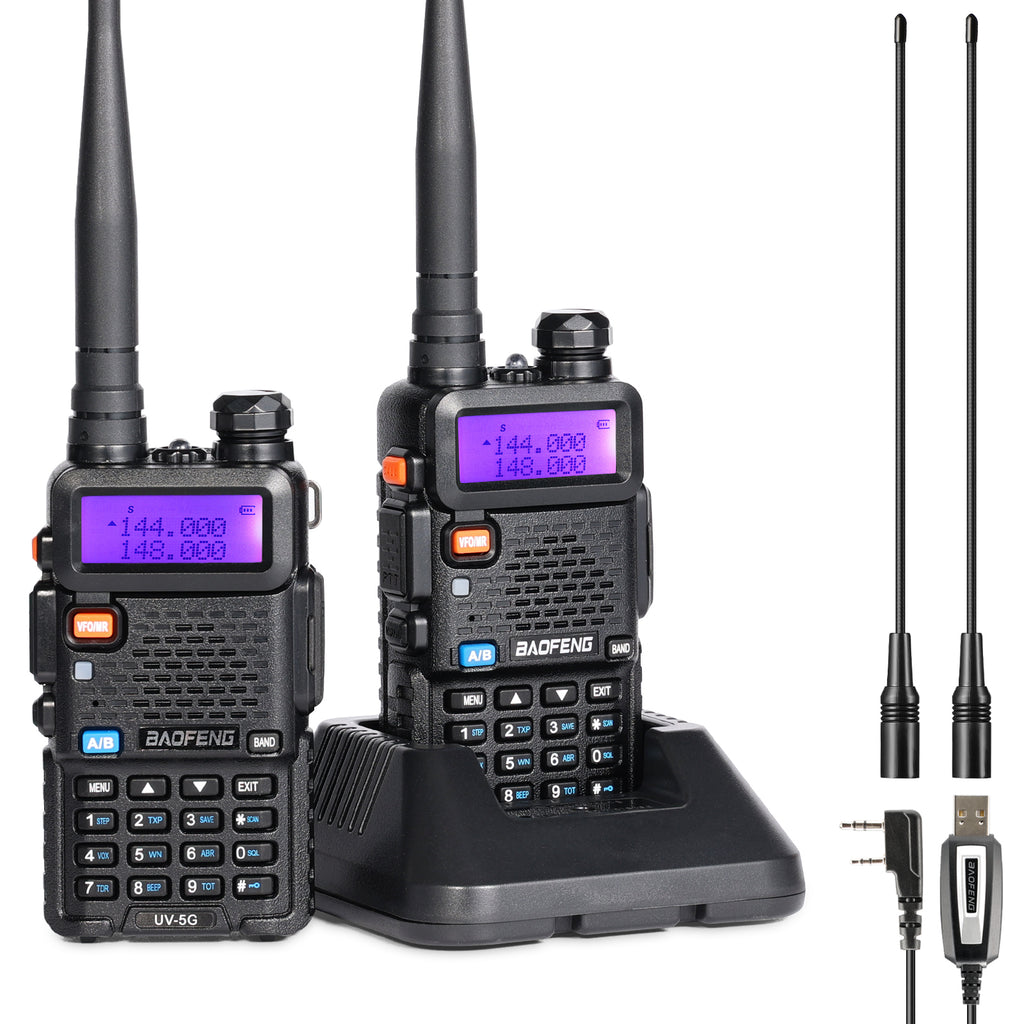

  • UV-5G 5W GMRS Radio Long Antenna Set [2 Pack] Baofeng
  • UV-5G 5W GMRS Radio Long Antenna Set [2 Pack]
UV-5G 5W GMRS Radio Long Antenna Set [2 Pack]
SKU: 715-BF-UV5GL-TP
In stock
$49.99

[DOWNLOAD] User Manual and Programming Software

[Ideal GMRS HT] The UV-5G, a GMRS version of the classic UV model, comes with an FCC ID: 2AN62-UV5G and requires a GMRS license. It’s pre-programmed with 30 GMRS and 11 NOAA channels, ready to use right out of the box.

[Longer Talking Range] Equipped with a 15.5" high gain antenna, it supports 8 repeater pairs from Channel 23-30, enabling a wider talking range. Its range increases significantly when used with a GMRS Repeater.

[Classic Design] Compatible with BL-5L 3800mAh extended rechargeable batteries and other classic series accessories, except the SMA-M antenna. It works well with your other GMRS units.

[NOAA Scan & Receiver] Stay ahead of severe weather with the NOAA feature that automatically scans and receives weather reports. It serves as an alternative and emergency communication option during disasters when cell towers are overloaded.

[Simple Operation] Features a tri-color display, easy-to-access basic settings via the Menu and Keypad, VOX hands-free operation, 128 Channels, 50 CTCSS tones, and 104 DCS. Comes with programming cable, and more advanced settings are available when connected to your computer. It supports CHIRP (choose “UV-5X (GMRS version) (use Radioddity UV-5G)”).

Details
What's in the Box
Compare Chart
Review



Why choose UV-5G (UV-5X)?
The Baofeng UV-5G is a LEGAL GMRS handheld radio. This radio extends all the functions from UV-5R but transmits only on the GMRS channels. It adds NOAA Weather Scanning and Receiving. The UV-5G offers GMRS performance as another addition to the familiar UV-5R series of radios. A true GMRS radio that will be a useful companion in your outdoor activities.

ATTENTION!
LICENSE NEEDED
As a GMRS radio, UV-5G requires a license from the FCC to operate. This license requires no testing, just fill in the application and pay the fee.

TIP! WHERE TO FIND REPEATER INFO
Repeater info can be found on the myGMRS.com (or its APP), it provides a decent list of repeaters.

"Why I received UV-5G instead of UV-5X as I ordered?"

Many customers used to be confused by UV-5X (GMRS version) and UV-5X (U/V version). So BAOFENG changes UV-5X to UV-5G and re-certified the FCC ID as 2AN62-UV5G. In essence, now UV-5X and UV-5G are both the latest upgraded version of the inventory, with the same hardware and software configuration.


Why choose GMRS over FRS?
GMRS repeater capable. The UV-5G can take advantage of GMRS repeaters to get a more powerful, further-ranging signal. -- This is not an option with FRS radios.
GMRS radios allow Wide-band FM to provide a louder and clearer signal than the FRS radios restricted to Narrowband FM with a lower power rating.
The UV-5G provides more selectable channels than FRS radios, more CTCSS and DCS tone options to reduce unwanted signals.

Cross Compatible
Compatible with all accessories of UV-5R series, such as a 3800mAh battery. Easy to find backup parts on market or from your previous radios.
Compatible with all brands of GMRS radios while offering shared access on some FRS channels.
Compatible with Baofeng's new six-way charger.

NOAA Weather Channels
UV-5G automatically scans 11 NOAA weather channels. On-call 24/7 with updated severe weather reports so you're always up to date on the latest weather conditions.
An ideal companion for road trips, hunting, backpacking, security guard, and other outdoor activities.

Pre-programed GMRS Frequencies List

UV-5G GMRS frequency chart

Specifications
General
Frequency Range: GMRS (RX & TX) | 136-174 & 400-520MHz(RX)
Memory Channel: 30 GMRS + 11 NoAA Weather Channels + 128 Scanner
Operation Voltage: DC 7.4 V ±10%
Battery Capacity: 1800mAh (Li-Ion)
Frequency Stability: ±2.5ppm
Operating Temperature: -20℃ to +50℃
Mode of Operation: Simplex
Antenna Impedance: 50ohm

Transmitter Part
RF Output Power ≤5W(GMRS)
FM Modulation 11K0F3E@12.5KHz
Adjacent Channel Power 60dB @ 12.5KHz
Transmission current ≤1500mA

Receiver Part
Receive Sensitivity 0.25μV (12dB SINAD)
Adjacent Channel Selectivity ≥55dB@12.5KHz
Inter Modulation and Rejection ≥55dB@12.5KHz
Conducted Spurious Emission ≤-57dB@12.5KHz
Rated Audio Power Output 1W @16 ohms
Receive current ≤380mA
Rated Audio Distortion ≤5%

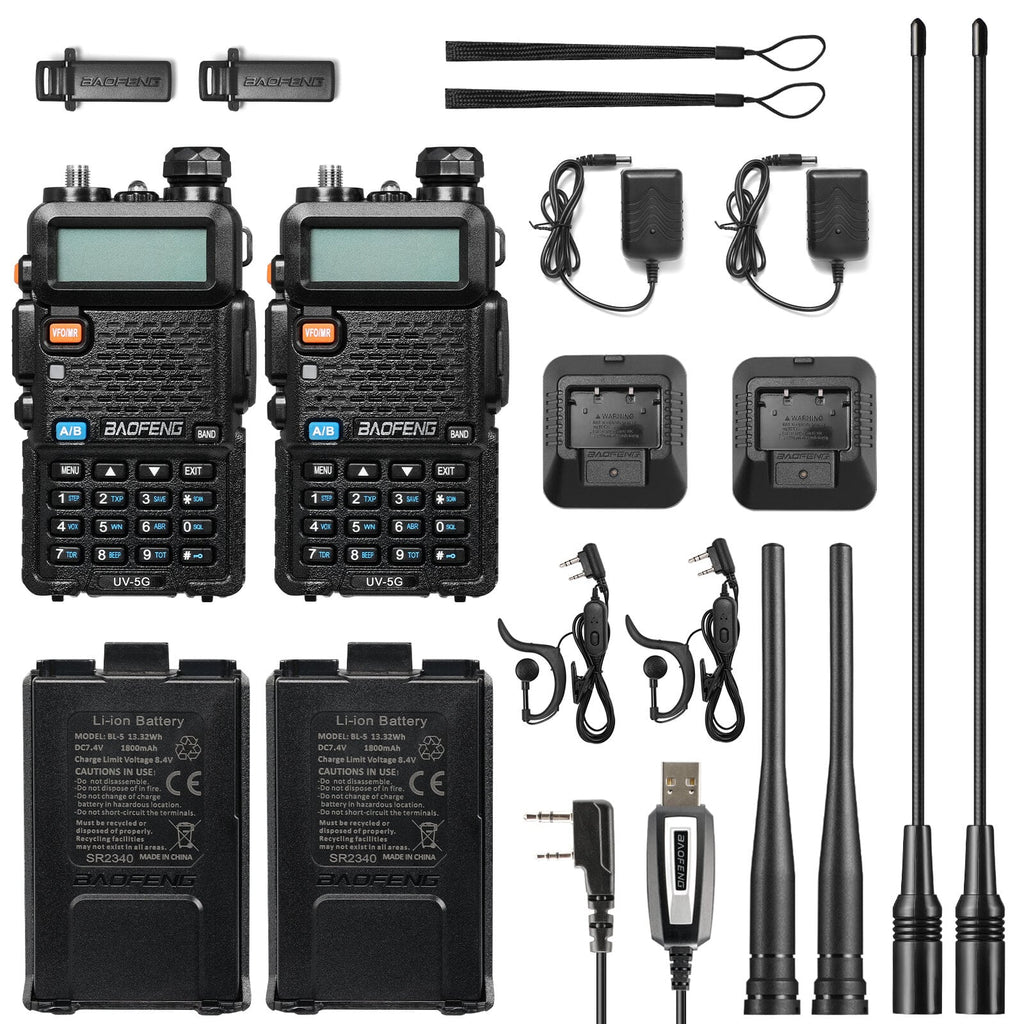

What's in the Box

  • 2 x Baofeng UV-5G (UV-5X) GMRS Radio
  • 2 x 7.4V 1800mAh Li-ion Battery
  • 2 x Earphone Mic/Headset
  • 2 x Desktop Charger
  • 2 x Adapter
  • 2 x Belt Clip
  • 2 x 15.5" High gain antenna
  • 1 x Programming cable
  • 1 x User Manual
