Technical Specifications
Frequency Range: FRS
Working temperature: -10℃ to +50℃
Operation Voltage: DC 3.7 V ±10%
Operation Mode: Simplex

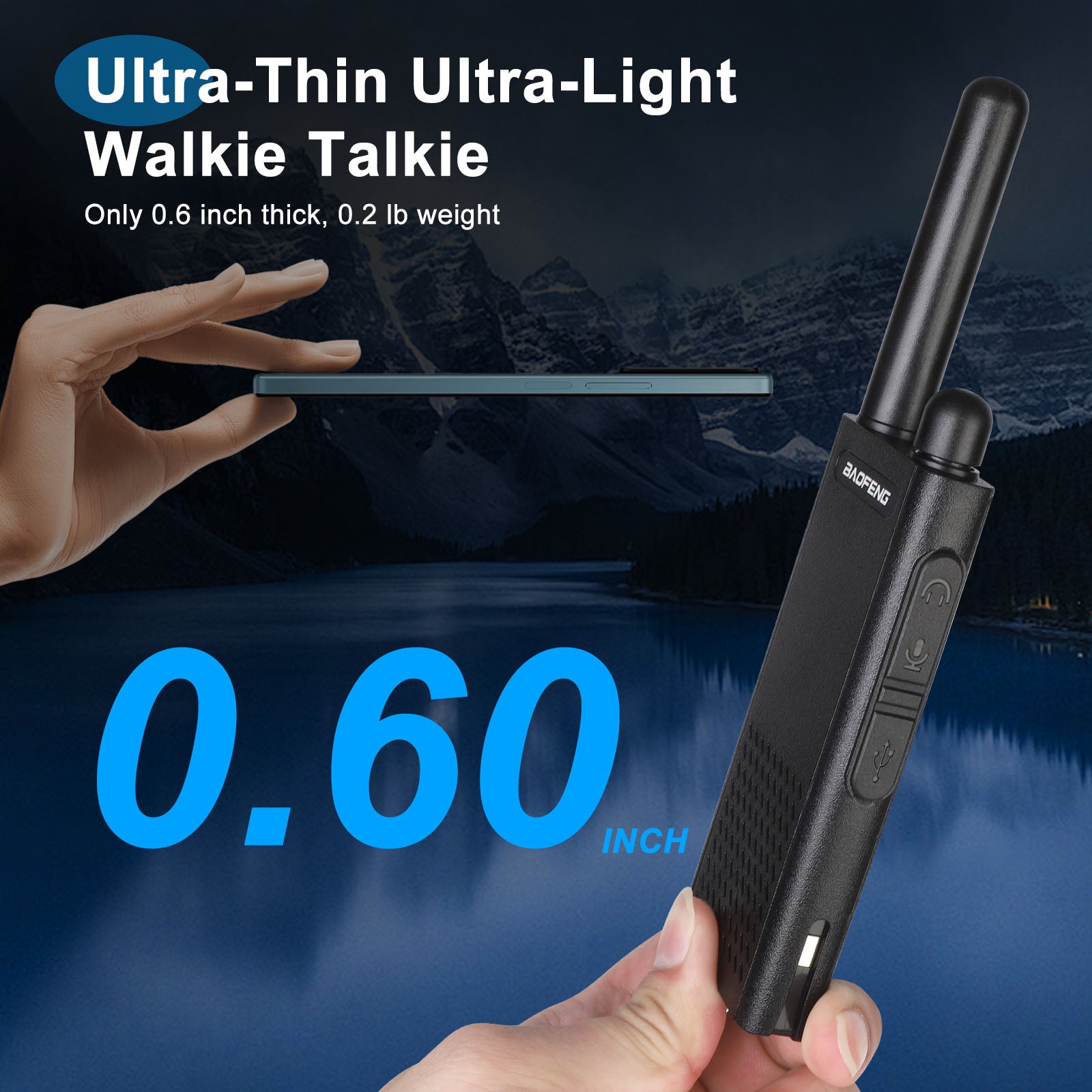

Dimensions: 110mm×56mm×16mm (without Antenna)
Weight: 110g (Battery pack included)
Antenna Impedance: 50ohm
RF Output Power: 2W
FM Modulation: 11K0F3E@12.5KHz
Adjacent Channel Power: 60dB @ 12.5KHz
Transmission current: ≤1200mA
Receive Sensitivity: 0.25μV (12dB SINAD)
Adjacent Channel Selectivity: ≥55dB@12.5KHz
Inter Modulation and Rejection: ≥55dB@12.5KHz
Conducted Spurious Emission: ≤-57dB@12.5KHz
Rated Audio Power Output: 0.75W @8 ohms
Receive current: ≤380mA
Rated Audio Distortion: ≤5%
NOTE: All specifications may be modified without prior notice or liability.
