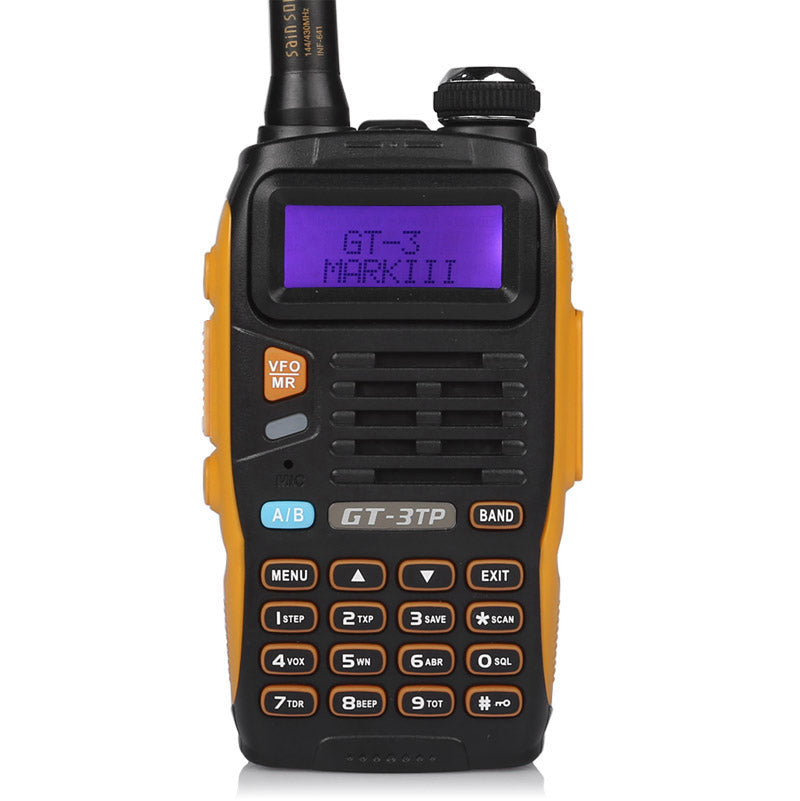

Front view of the GT-3TP
  • Front view of the GT-3TP
  • GT-3TP with antenna

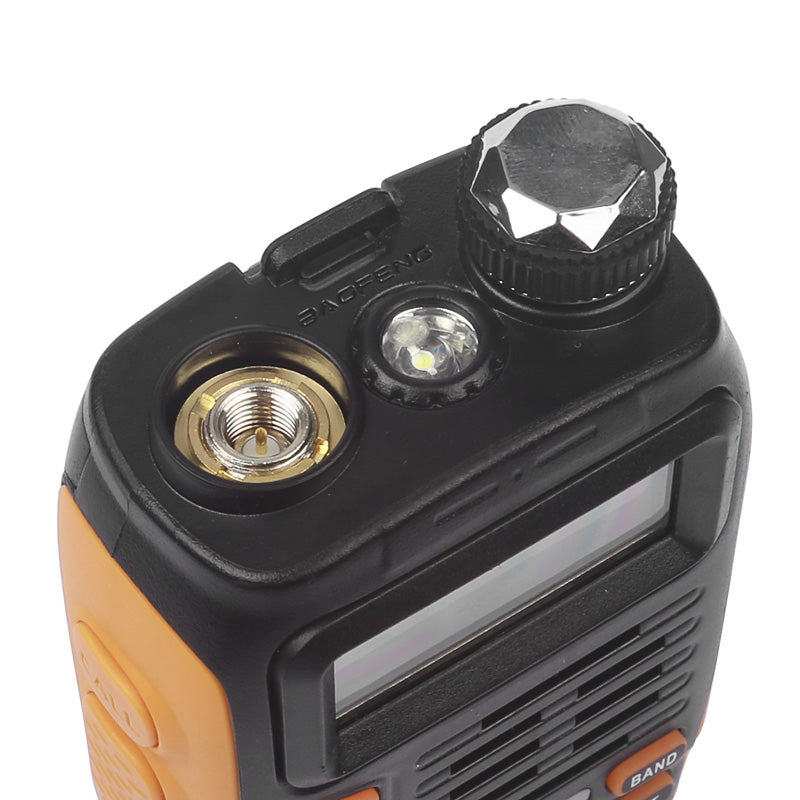

  • GT-3TP antenna port details

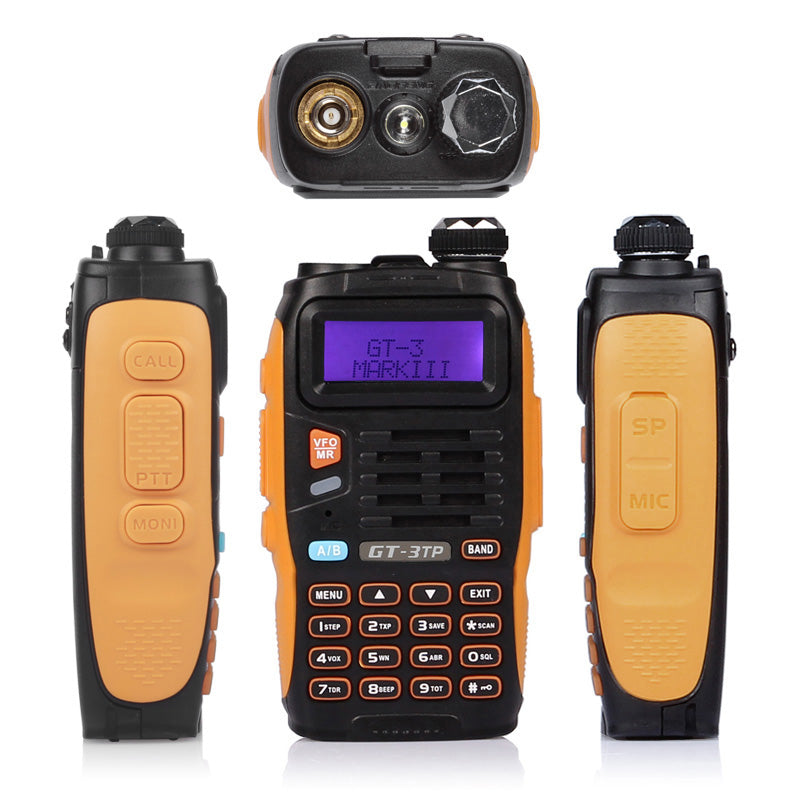

  • GT-3TP multiple view

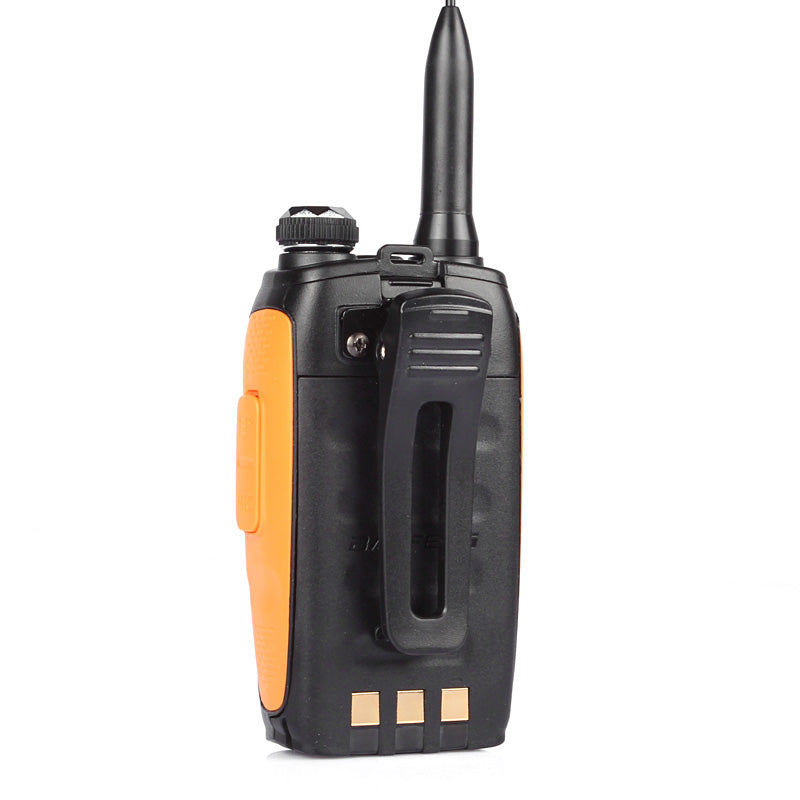

  • Back view of the GT-3TP

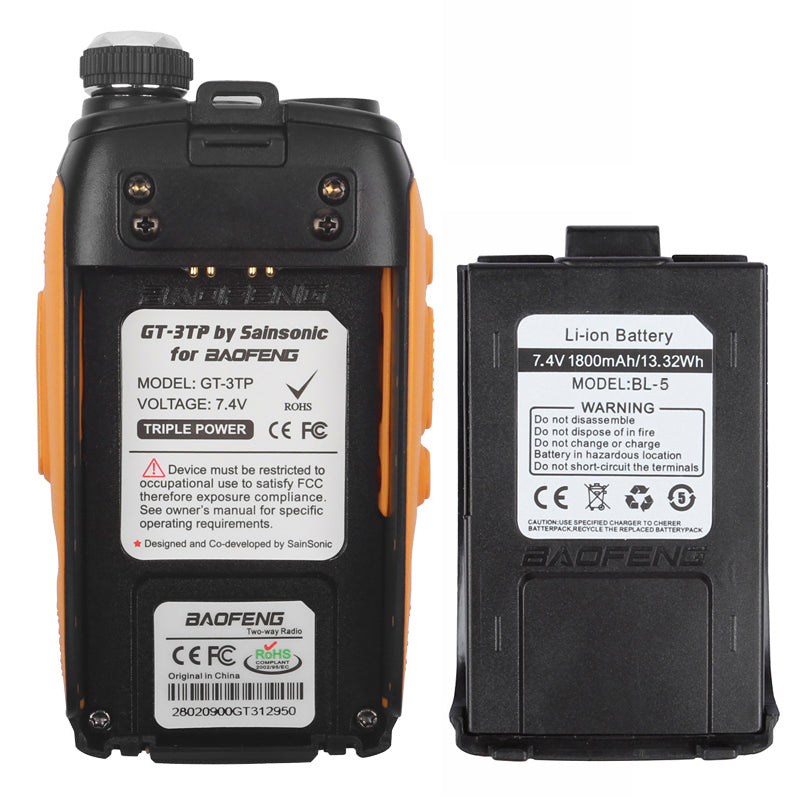

  • GT-3TP with battery

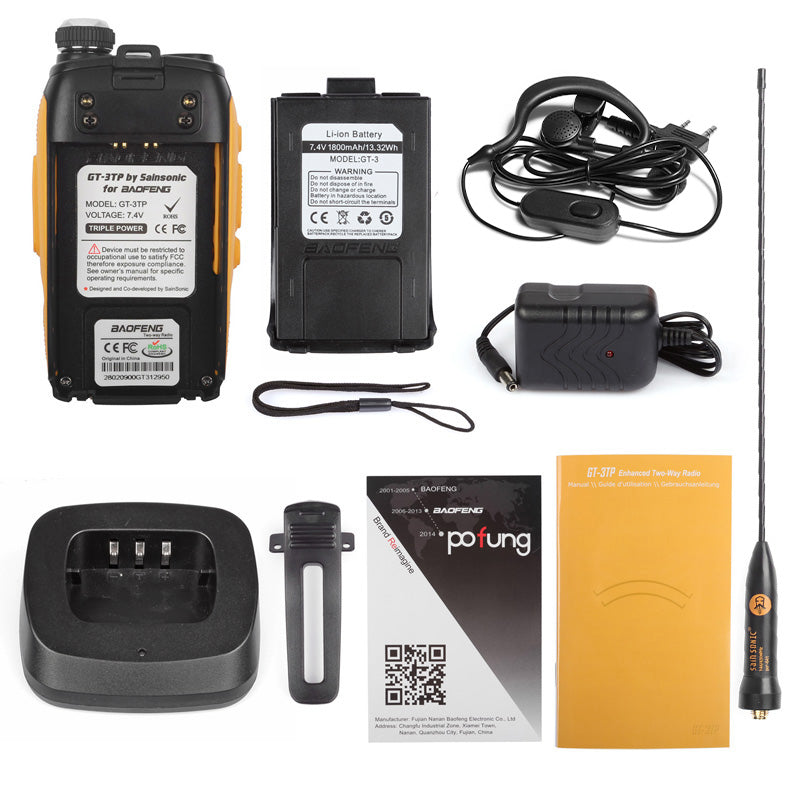

  • GT-3TP package content
  • GT-3TP Mark III 3800mAh 8W/4W/1W Dual Band Radio Baofeng
  • GT-3TP Mark III 8W/4W/1W Dual Band Radio
  • Images
  • Videos
GT-3TP Mark III 8W/4W/1W Dual Band Radio
SKU: 28-020-952
In stock
$25.99
Power Plug
Battery

[DOWNLOAD] User Manual

[DOWNLOAD] Programming Software





▸ FCC ID: 2AJGM-UV5R

• 8W High Power: Maximize the 8W output power of the Baofeng GT-3TP handheld ham radio to get extended range and increased clarity during transmission. Another low and mid-range power is available to help extend battery life.

• Upgraded Antenna: The 21cm high gain antenna has better stability and performance compared to the old antenna. Combined with 8W high output power, the dual band two-way radio can even extend the talking range up to 11km.

• VOX Function: Enjoy handsfree operations with the built-in VOX function of the portable walkie talkies. With a portable and sturdy body, you can rest assured that it will be the perfect partner for you on the road.

• Special Optimization: Optimized SQL settings and modulation of TX/RX power tubes to improve the quality and stability of the transmission. There are also 50 CTCSS/104 DCS to provide group calling convenience and reduce external interference.



• More Basic Function: 128 Channels; Function Busy Channel Lock "BCLO". "OFFSET" (frequency offset for repeater access). Compatible with Baofeng 7.4V 3800mAh BL-5L battery.

Details
What's in the Box
Compare Chart
Review

GT-3TP banner


The GT-3TP Mark-III is an Upgraded Version of GT-3 with Tri-Power (8W/4W/1W).
- New 23CM High Gain Antenna allows GT-3TP to transmit much further.
- It comes with a SainSonic Car Charger for charging on the go.
- It also comes with an upgraded Antenna connector, Radio Frequency IC, FM Receiver Chip, Power Amplifier IC, etc.

Feature:
Frequency Range: 136-174 & 400-520 MHz
Tri-Power: High / Med / Low Power (8W/4W/1W)
23CM High Gain Antenna: allows GT-3TP to transmit much further
Big buttons & knob: GT-3TP has a built-in PTT key, CALL key, and MONI key on the left side of the radio
Antenna Interface: Fine copper antenna connector outperforms previous antenna connectors and improves communications.
Radio Frequency IC: Upgraded Squelch enhances interference rejection
RDA1846S IC adds a new tail tone elimination function.
Improved receiver AGC for when signal strength changes are severe
FM Receiver Chip: The RDA5802N has a powerful low-IF digital audio processor. This makes it have optimum sound quality with varying reception conditions.
Power Amplifier IC: Low crossover distortion, Low quiescent circuit current. Provides plenty of clean, clear receive audio.
LED Flashlight: high lumen output
Shell: Upgraded shell: Dustproof


SPECIFICATIONS:
Mode of operation: Simplex or semi-duplex
Memory channels: Up to 128
Frequency stability: 2.5ppm
Antenna impedance: 50 ohm
Squelch from 0-9

What's in the Box

  • 1x GT-3TP Mark III
  • 1x 7.4V 1800mAh Li-ion Battery
  • 1x 23CM Antenna
  • 1x Car Charger
  • 1x Belt Clip
  • 1x User Manual
  • 1x Adapter
  • 1x Desktop Charger
  • 1x Headset
