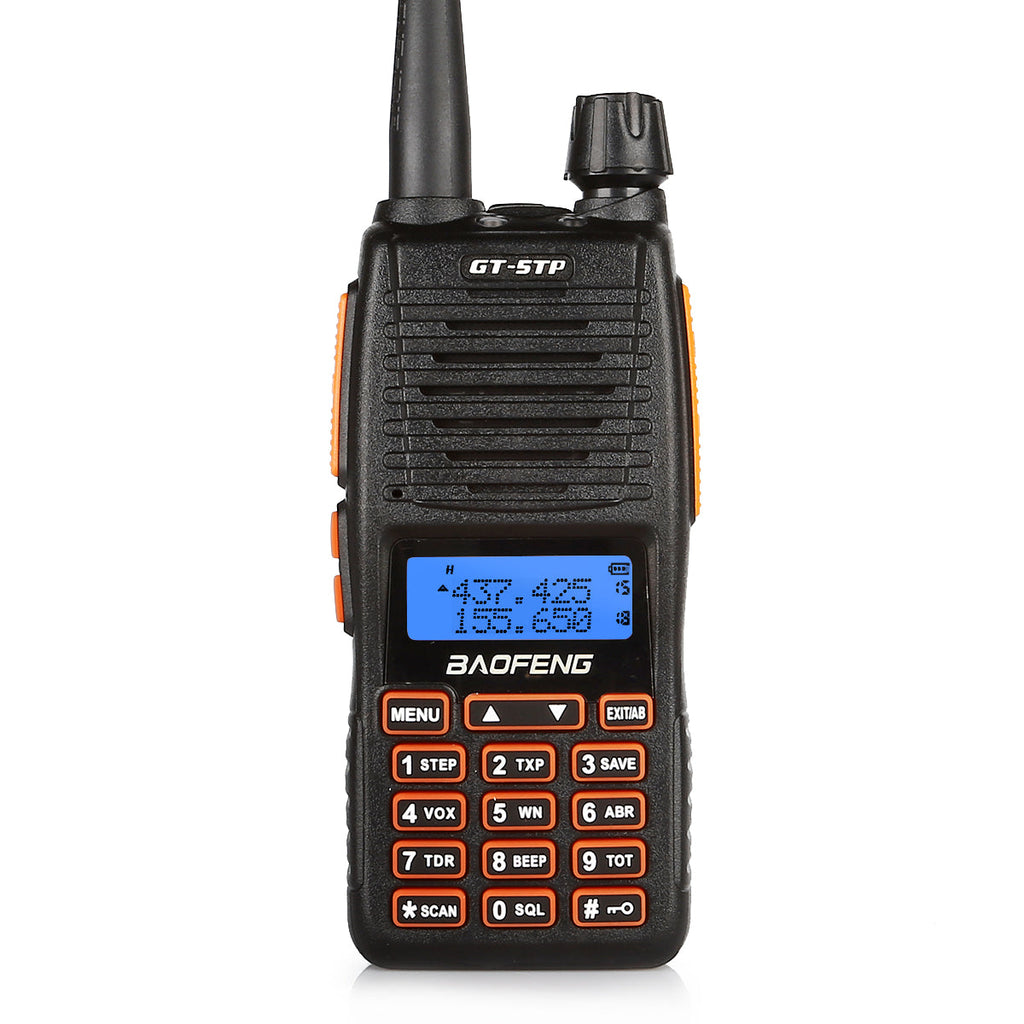

  • Front view of the GT-5TP

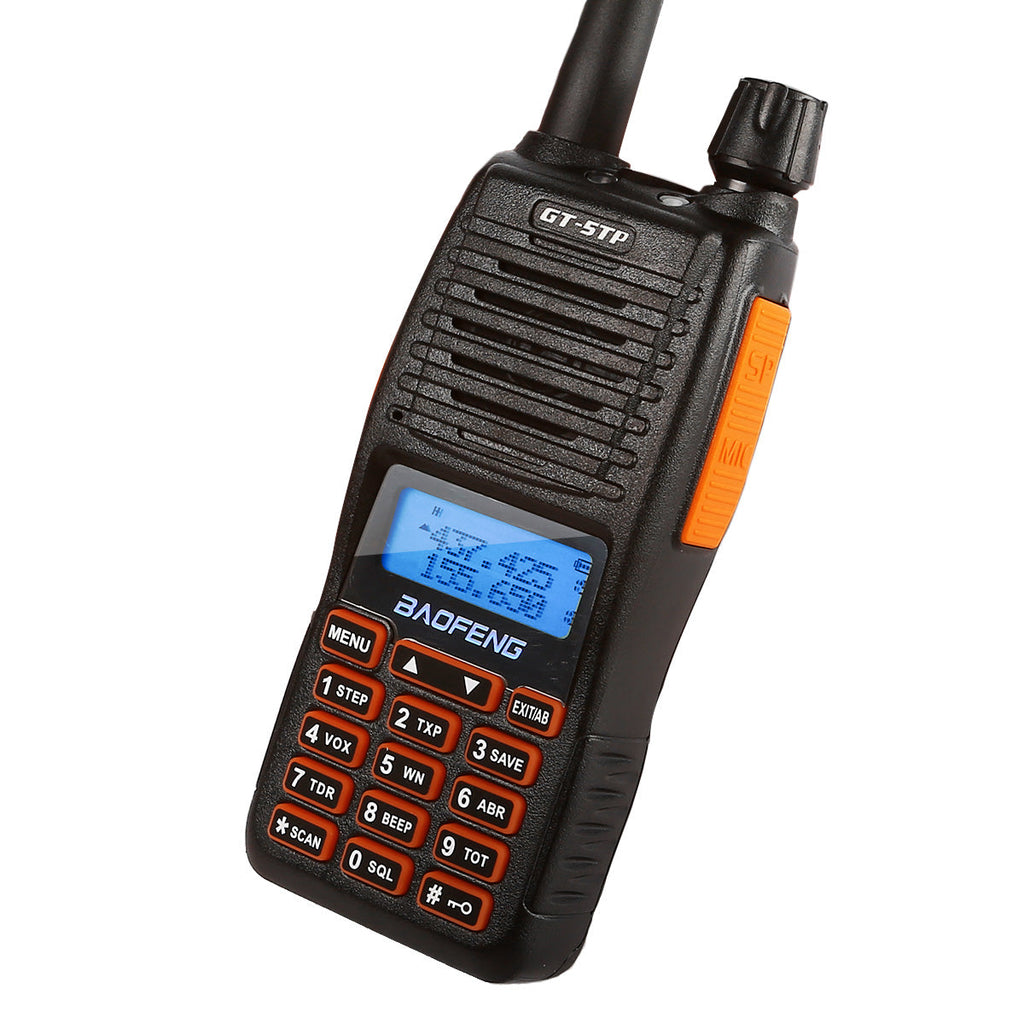

  • Side view of the GT-5TP

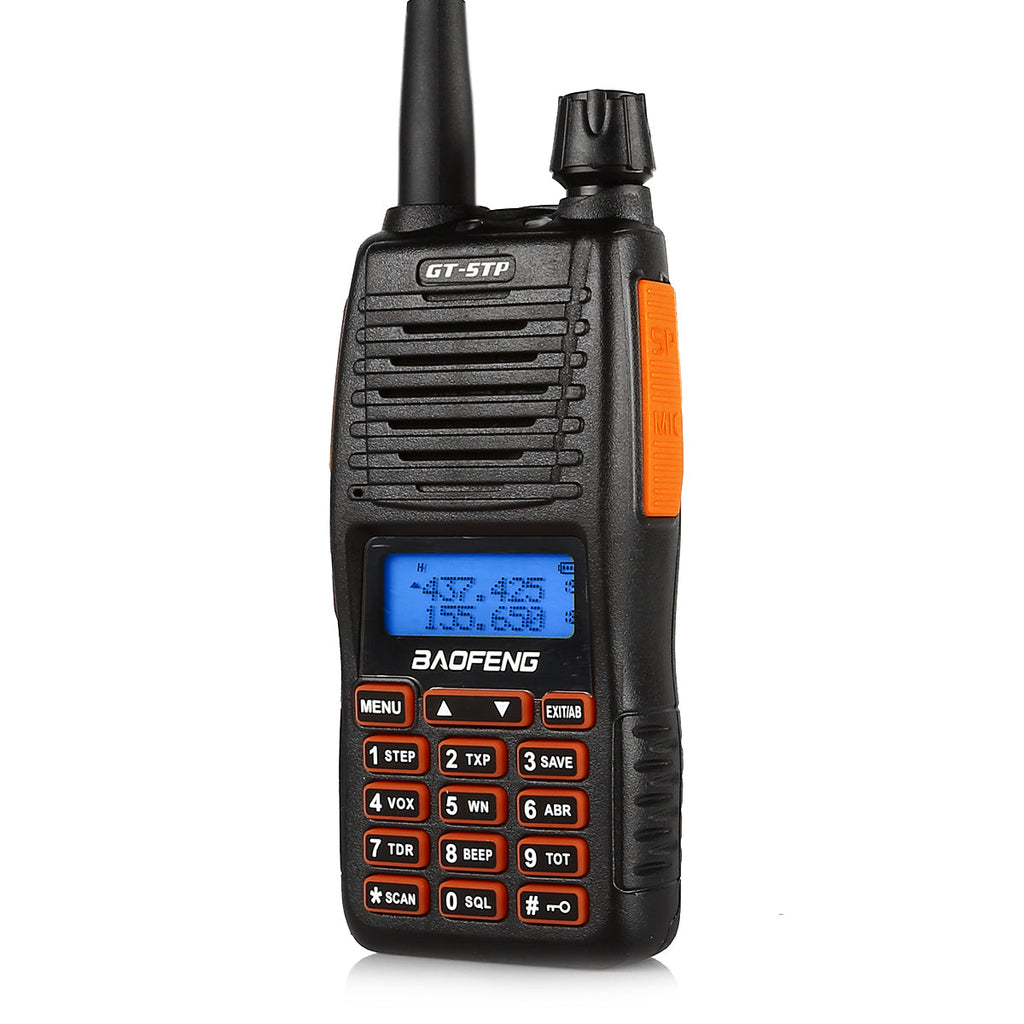

  • right view of the GT-5TP

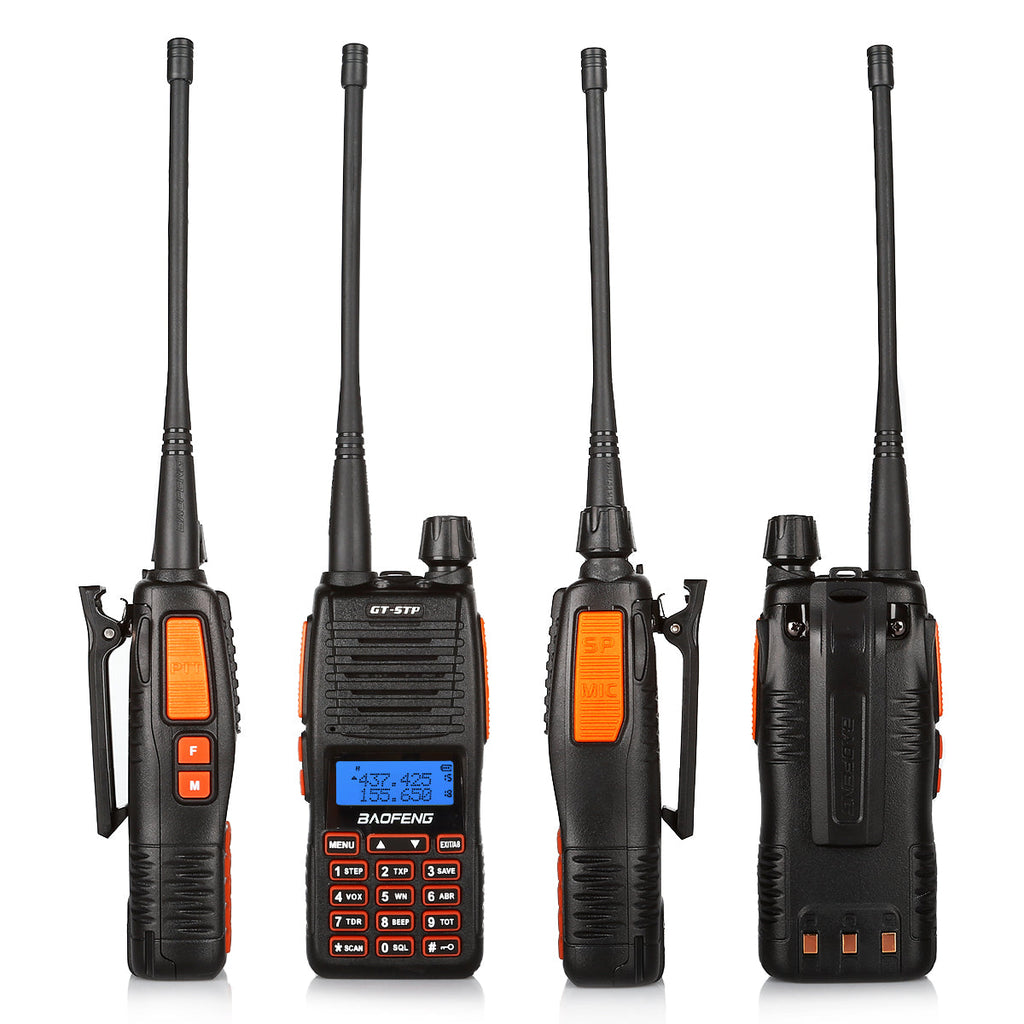

  • Multiple views of the GT-5TP

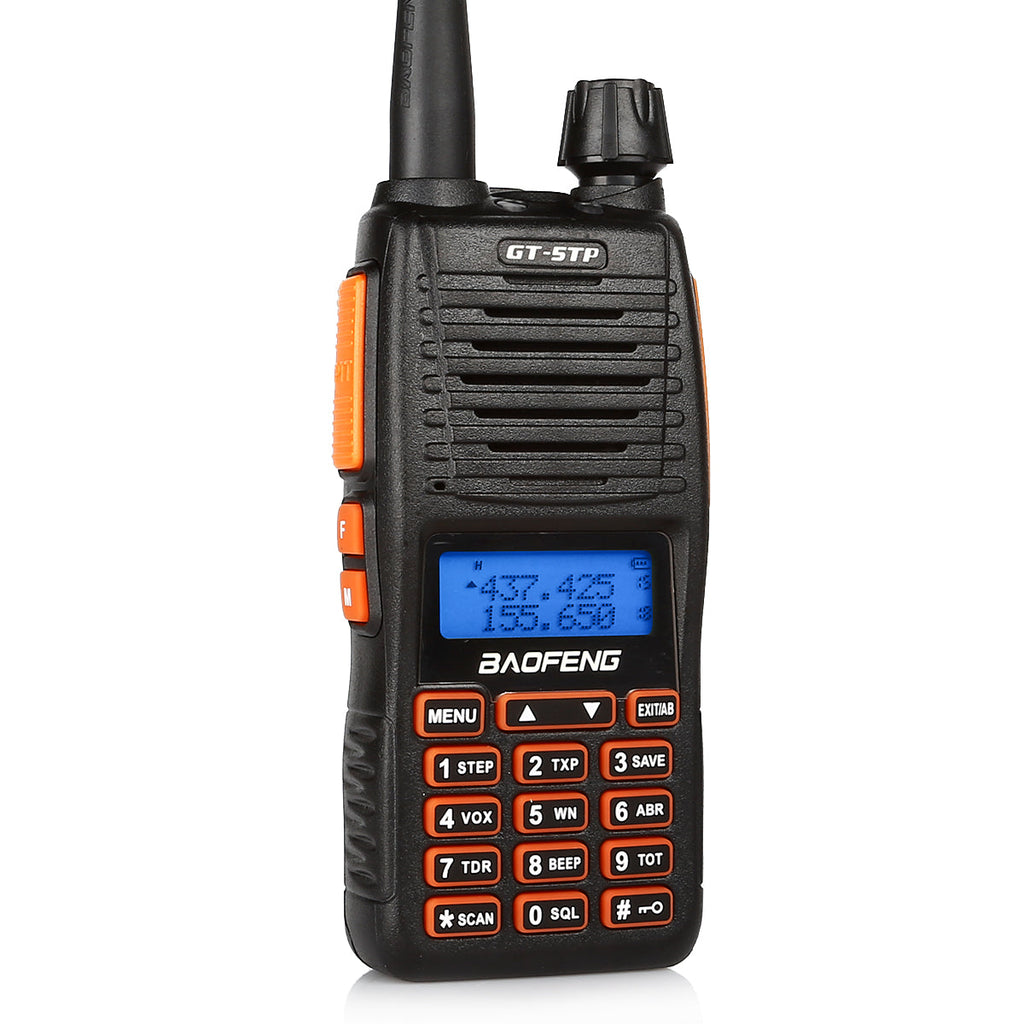

  • Side view of the GT-5TP

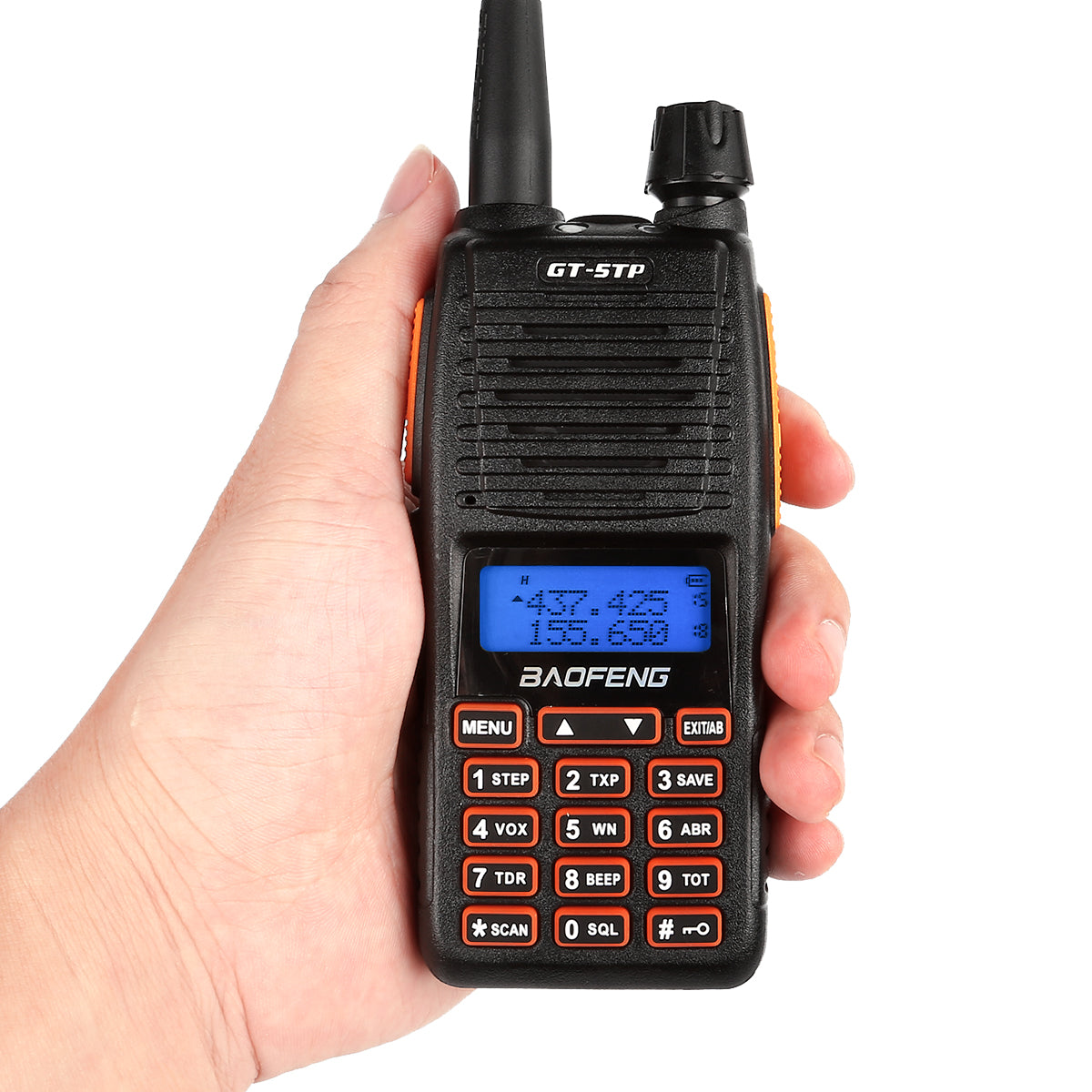

  • handheld GT-5TP

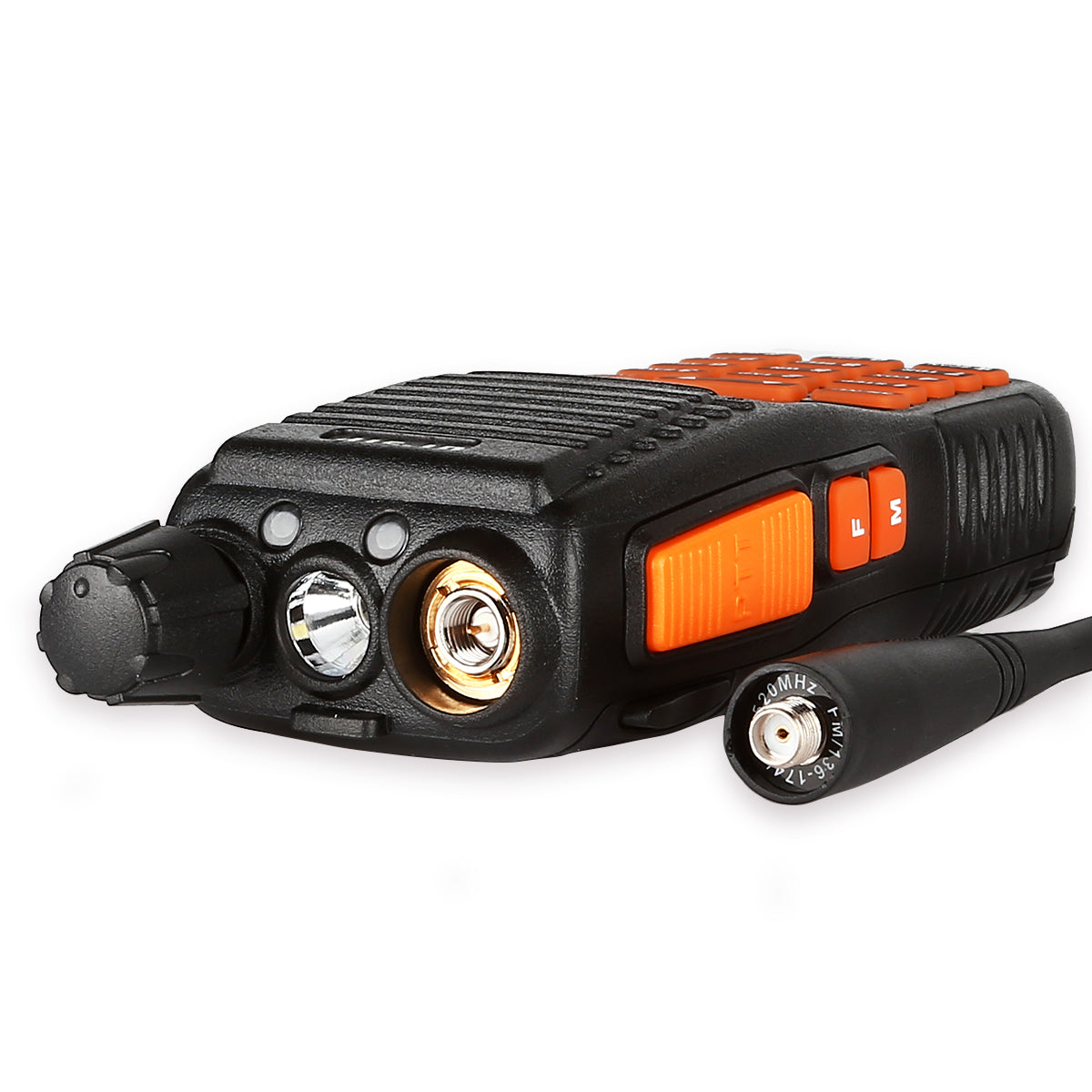

  • GT-5TP antenna port details

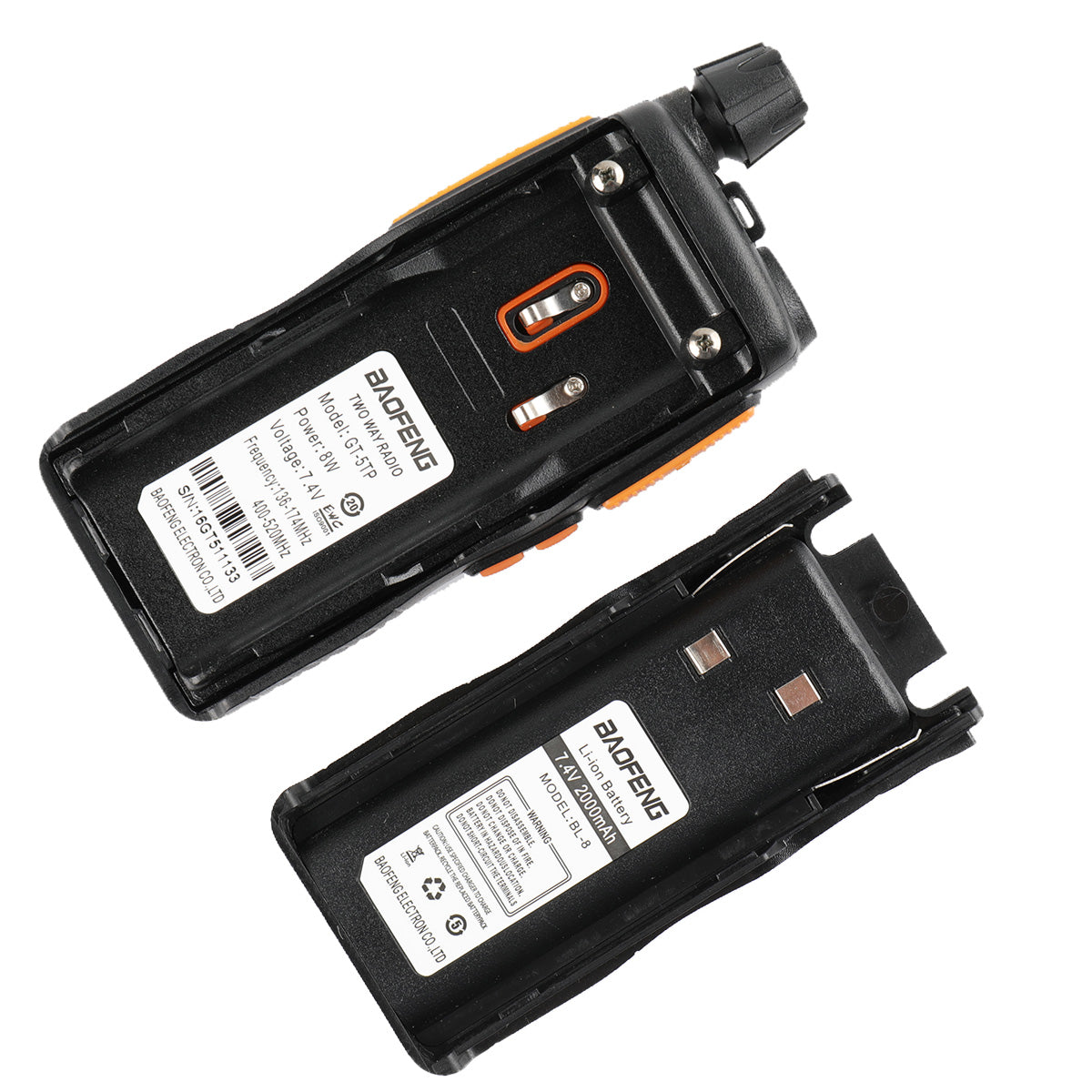

  • GT-5TP with battery

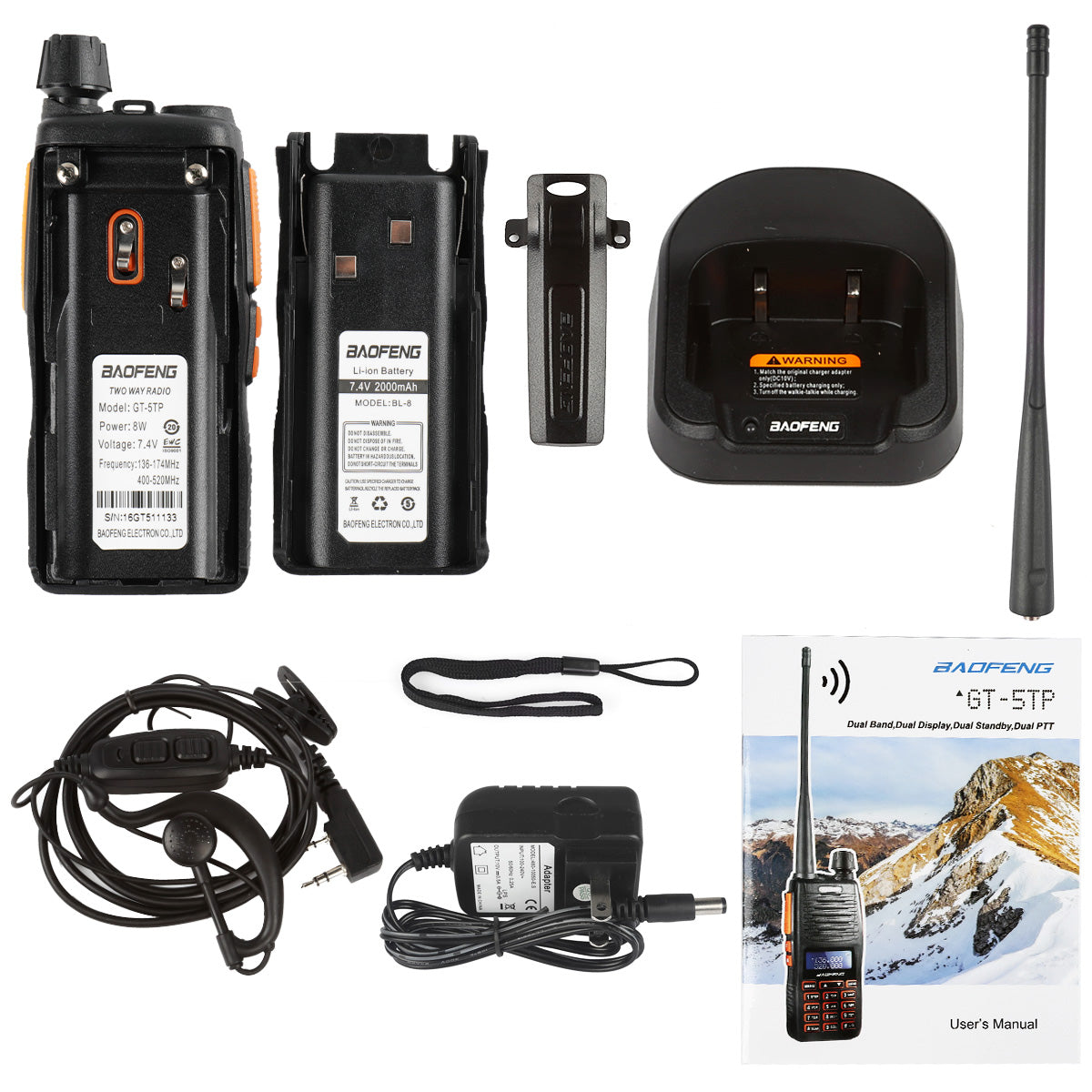

  • GT-5TP package content
  • GT-5TP 8W/4W/1W Dual Band Radio
  • Images
  • Videos
GT-5TP 8W/4W/1W Dual Band Radio
SKU: 28-120-106
Out of stock
$36.99
Power Plug

[DOWNLOAD] User Manual

[DOWNLOAD] Programming Software

[DOWNLOAD] CHIRP (Quick Programming)



▸ FCC ID: 2AJGM-UV82

▸ 8W High Power Output – Get the most out of your handheld ham radio with the Baofeng GT-5TP's 8 watts of power output for extended range and increased clarity during transmission.

▸ Tri-Color Backlit – Enjoy exceptional clarity and visibility, even in low light, with this handheld ham radio's adjustable tri-color backlit display.

▸ Dual PTT and Channel Knob – Easily access and switch between channels with the Baofeng GT-5TP's convenient channel knob and dual PTT buttons.

▸ 2000mAh Battery – Keep the conversation going with the two-way radio's powerful 2000mAh battery, capable of providing you up to 10 hours of use.

▸ VOX Function – Enjoy handsfree operations with the built-in VOX function of the portable walkie talkies, allowing you to keep both hands free while you chat.

Details
What's in the Box
Compare Chart
Review

BaoFeng GT-5TP -- Upgraded from BaoFeng GT-5 → Kernel User Interface → Now a Super Tri-Power radio!

Tri-Power Settings 8/4/1W, Tri-color background light selectable, Dual Band VHF/UHF, Dual PTT


Product Specifications:
High/ Mid/ Low Power settings: 8/4/1W
Frequency Range: VHF 144-148MHz (TX/RX); UHF: 420-450MHz(TX/RX)
Channel Memories: 128
Frequency Stability: ±2.5ppm
CTCSS/DCS deviation: 0.5±0.1kHz (Wide) / 0.3±0.1kHz (Narrow)
Mode of operation: Simple or semi-duplex
Modulation Mode: 16kF3E / 11kF3E
Maximum deviation: 5kHz (Wide) / 2.5kHz (Narrow)
Adjacent Ch. power: -65dB (Wide) / -60dB (Narrow)
Pre-emphasis characteristics: 6dB
Antenna: SMA Female
Antenna Impedance: 50
Power adapter Input: AC100-240V, 50-60Hz; Output: DC10V/500mA
Operating Voltage: DC 7.4V
Current: 1.6A(5W)
Dimension (Wx Hx D): 132x60x35mm (not included antenna)
Weight: 238g(including battery, antenna)

What's in the Box

  • 1 x BaoFeng GT-5TP
  • 1 x 7.4V 2000mAh Battery
  • 1 x 17cm Dual Band Antenna
  • 1 x Earpiece
