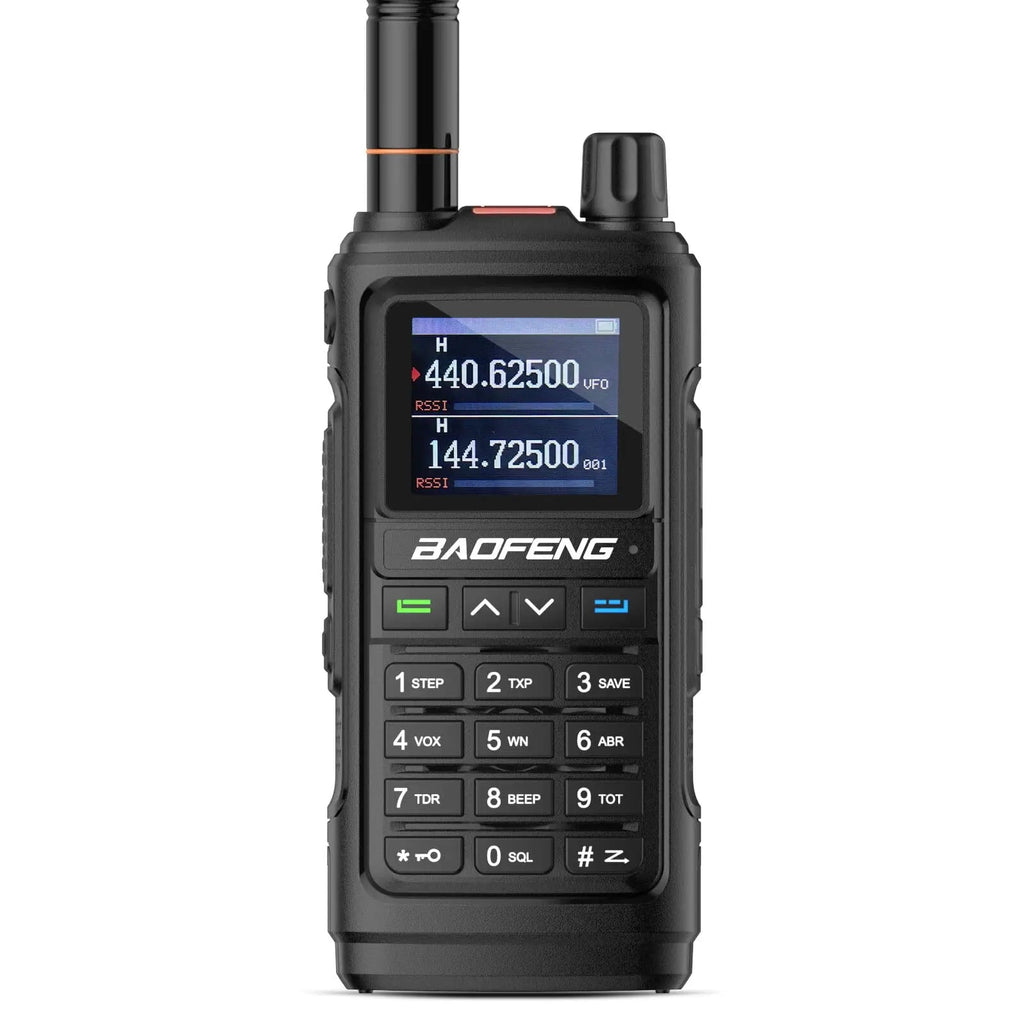

  • Front view of the UV-17R

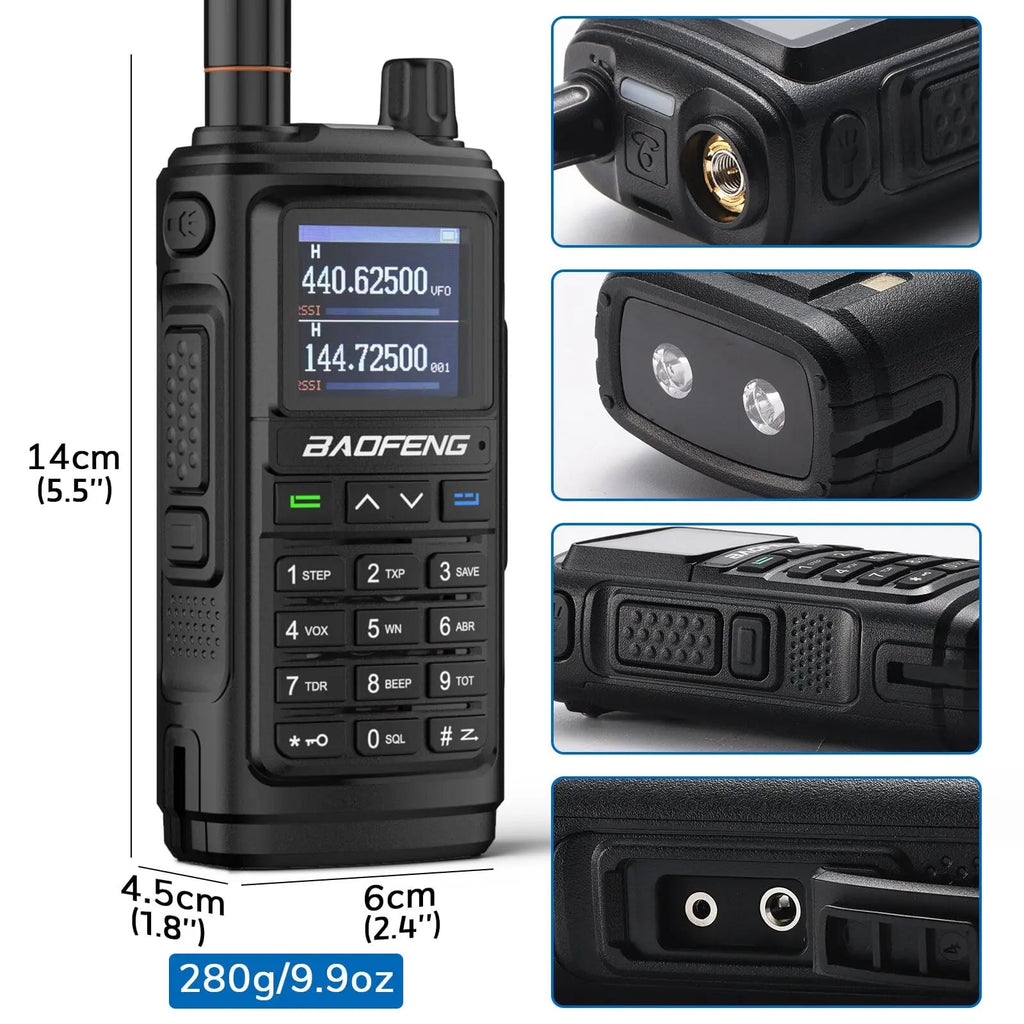

  • UV-17R size and details

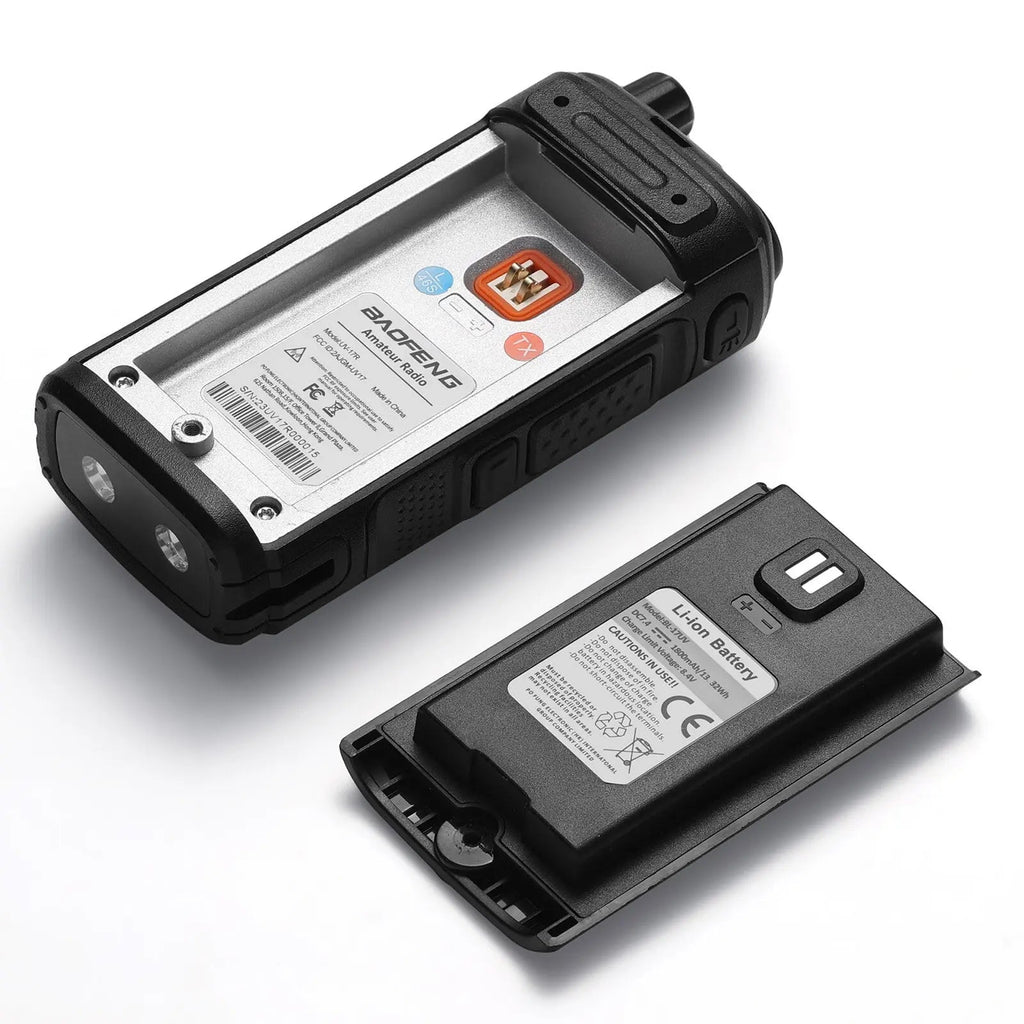

  • UV-17R with BL-17UV battery
  • UV-17R package content
  • UV-17R buttons functions descriptions
  • UV-17R total functions banner

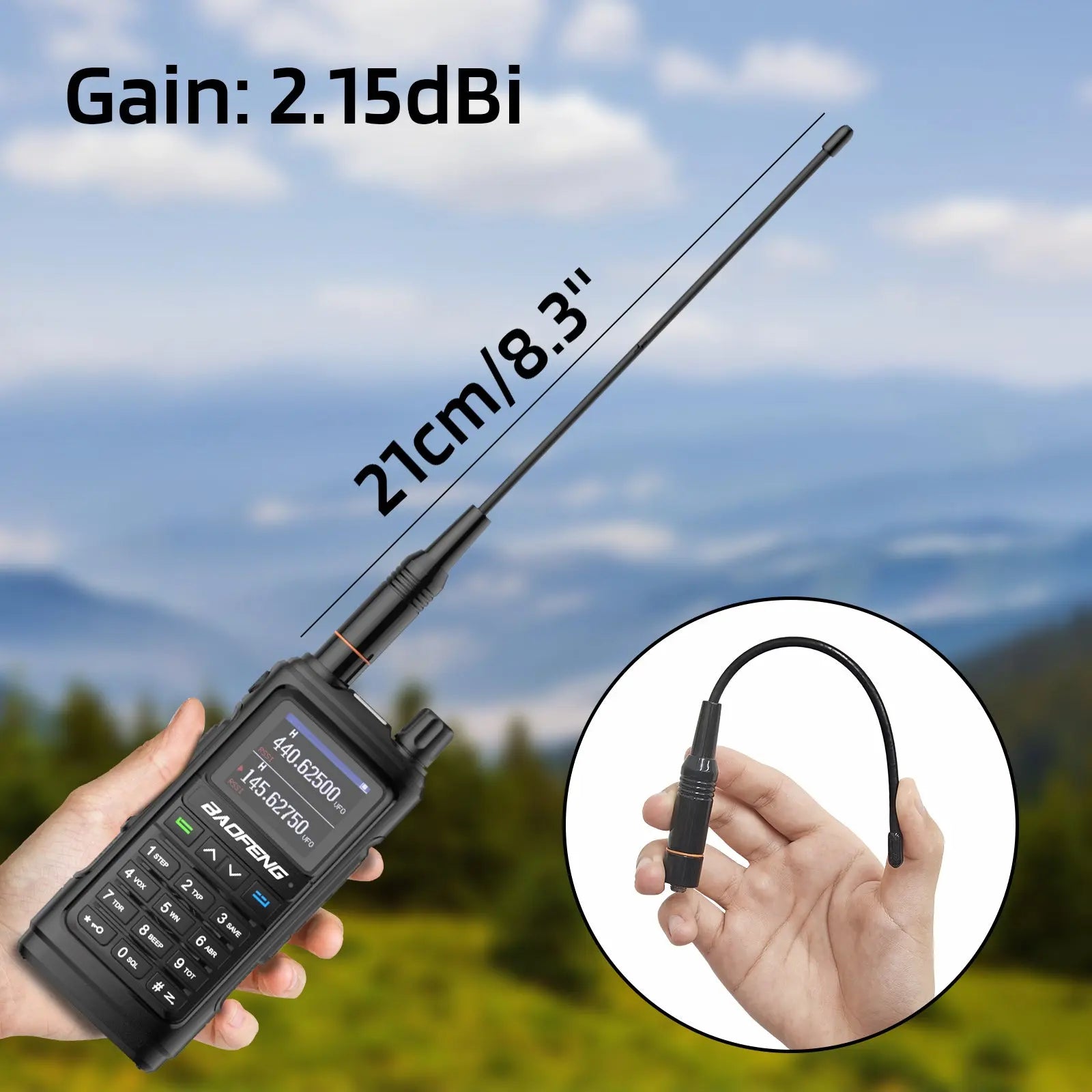

  • UV-17R with updated 8.3" antenna
  • UV-17R support IP54 waterproof

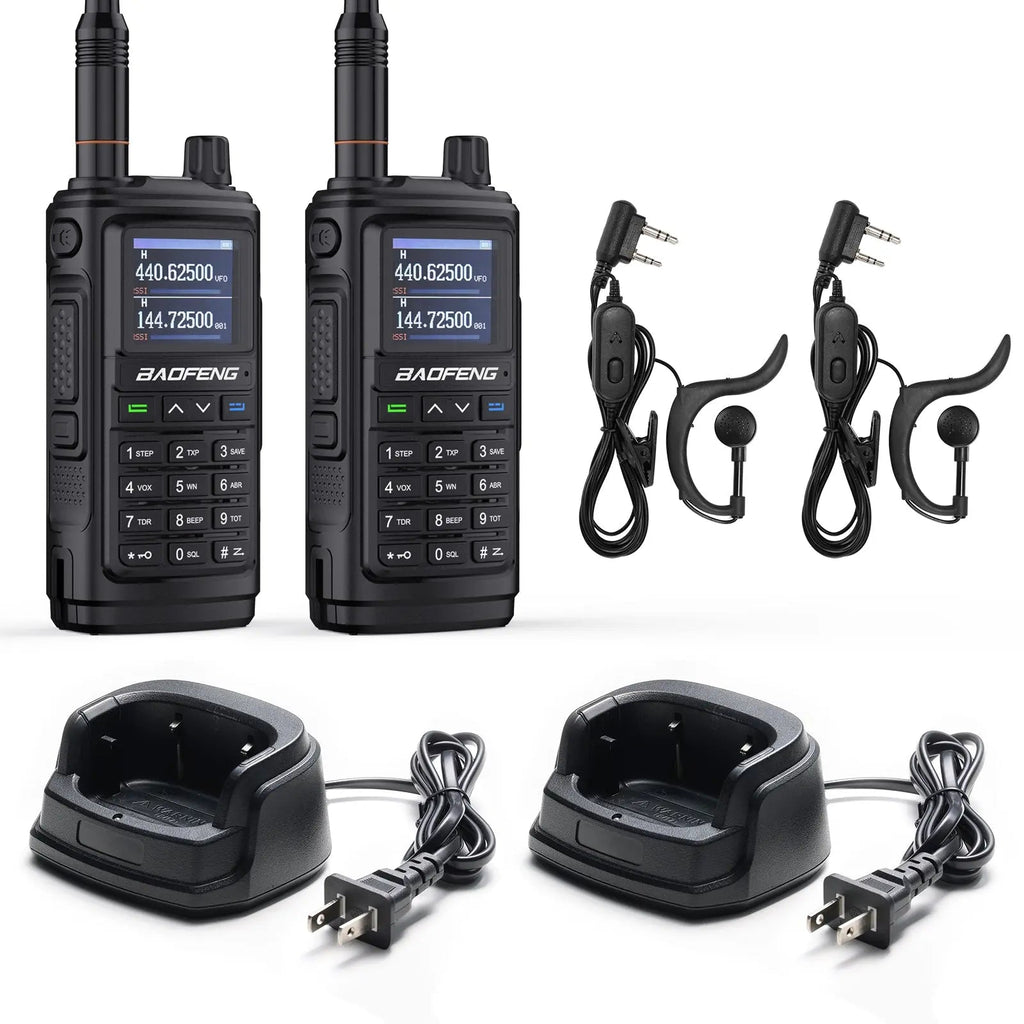

  • UV-17R 2 Pcs

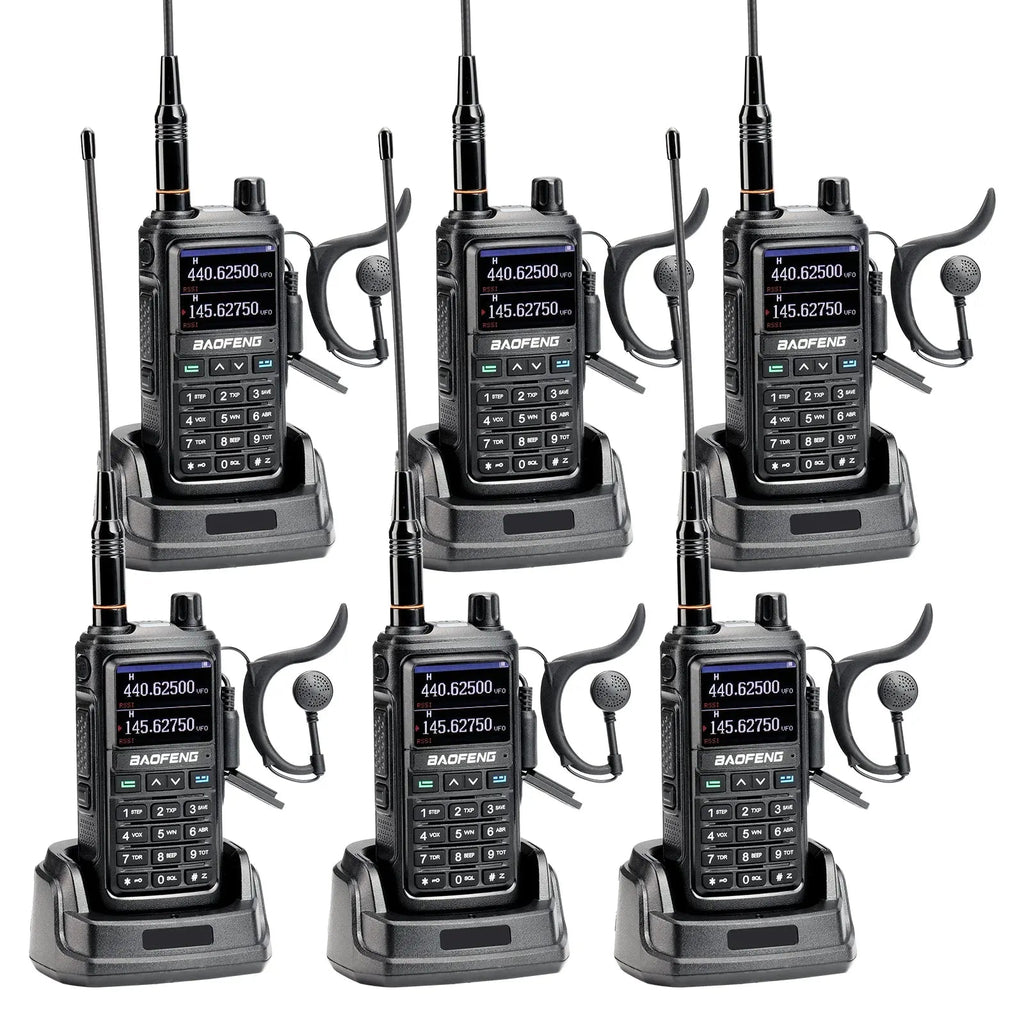

  • UV-17R 6 Pcs
  • UV-17R YouTube review (Temporarily Offine Ham Radio)
  • UV-17R 5W Dual Band Radio
  • Images
  • Videos
UV-17R 5W Dual Band Radio
SKU: 715-BA-UV17R-A
Out of stock
$19.99 $22.99
0% OFF
POWER PLUG
QUANTITY

[DOWNLOAD] User Manual and Programming Software


UHF/VHF Two-Way Radio: TX: 144-148MHz and 420-450MHz, and RX: 136-174MHz and 400-519.995MHz, as well as NOAA and FM reception. You can communicate across various frequency ranges, ensuring you stay connected in diverse environments.

Wireless Frequency Copy: The wireless frequency copy feature simplifies the process of programming your radio's frequency settings. It allows you to seamlessly clone frequency configurations from one ham radio to another nearby.

User-Friendly DTMF Customization: The UV-17R allows you to edit DTMF settings directly by pressing the '#' key. This method simplifies the process of configuring dual-tone multi-frequency signals, granting you greater control over your communication experience.

Wide and Narrow Bandwidth Options: Select between 12.5KHz and 25KHz wide band, or narrow band settings for compatibility and flexibility in various communication scenarios.

Feature-Rich Design: Equipped with a rechargeable 1800mAh battery, 999 channels for ample storage, 104 CDCSS, and 50 CTCSS codes, as well as dual watch capabilities. Additionally, a 1.77'' TFT color display, 1-9 VOX, and 0-5 squelch level settings enhance user experience. FCC ID: 2AJGM-UV17.


Details
What's in the Box
Compare Chart
Review

UV-17R banner|Total functions

useful tips about the desktop charger

wireless frequency copy function

Adjustable Screen-on Time

Dual Alarm Function

Wireless Frequency Copy

Streamline setup with wireless frequency copy for easy transfer between devices, ensuring seamless connectivity. Press "exit" to scan, "menu" to save. Since +/-2.5ppm is the accuracy of most ham radios, frequency deviation is normal when you perform wireless frequency copy with other radios.
　

Adjustable Screen-on Time

Easily customize the screen-on duration with options ranging from 5 to 20 seconds, or just keep it on, suiting your preferences and power-saving needs.
　

Dual Alarm Function

Stay prepared with UV-17R's flashlight and dual alarm. Local alarm through speaker or broadcast with siren/coded signals over the air.
　

Specification:
Frequency Range:
144-148MHz(TX&RX) , 420-450MHz(TX&RX) [US Version]
144-146MHz(TX&RX) , 430-440MHz(TX&RX) [EU Version]
FM: 78-108MHz(RX), WX: 161.650-163.275MHz(RX)
Power: 5W/2W
Channel Spacing: 25.0KHz(Wide)/12.5KHz (Narr)
Memory Channel: 999 Groups
Operation Voltage: DC 7.4 V ±10%
Transmission Current: ≤1700mA
Receive Sensitivity: 0.25μV (12dB SINAD)
Rated Audio Power Output: 1W @16 ohms
Receive Current: ≤380mA
Connection for Accessories: 2 pin Kenwood jack
Antenna Impedance: 50 Ohm

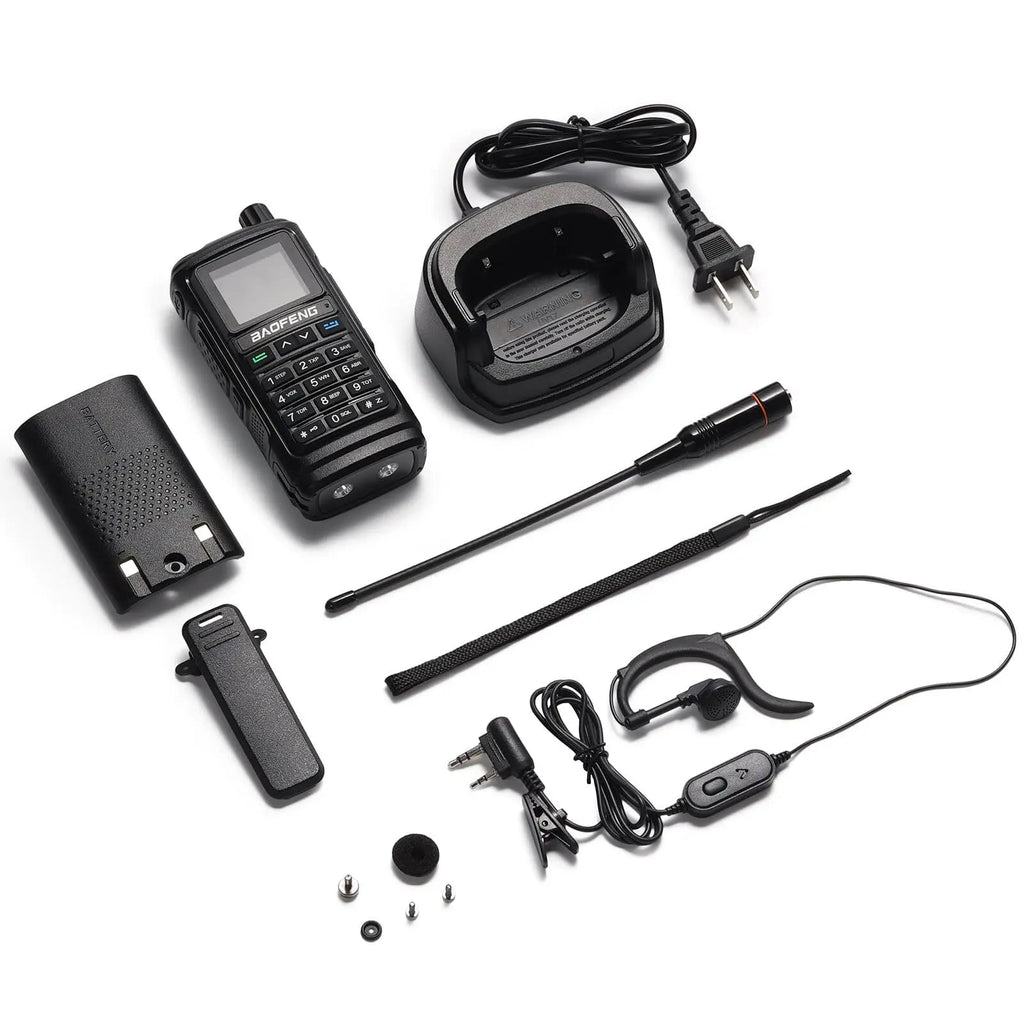

What’s in the box?
UV-17R Two way radio x 1
Li-ion Battery (with one screw) x 1
Belt Clip x 1
Lanyard x 1
Headset x 1
Desktop Charger x 1
User Manual x 1
