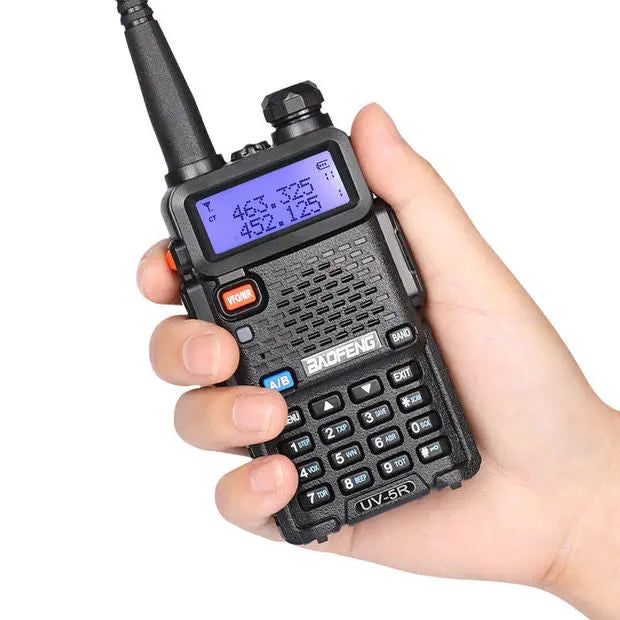

▶ The Baofeng UV-5R is a compact handheld radio transceiver providing 4 watts of power in the frequency range of 136-174 / 400-480 MHz. It is a cost-effective, versatile HT that includes a special VHF receive band from 65-108 MHz for standard FM broadcast radio. Dual watch and dual reception are fully supported.

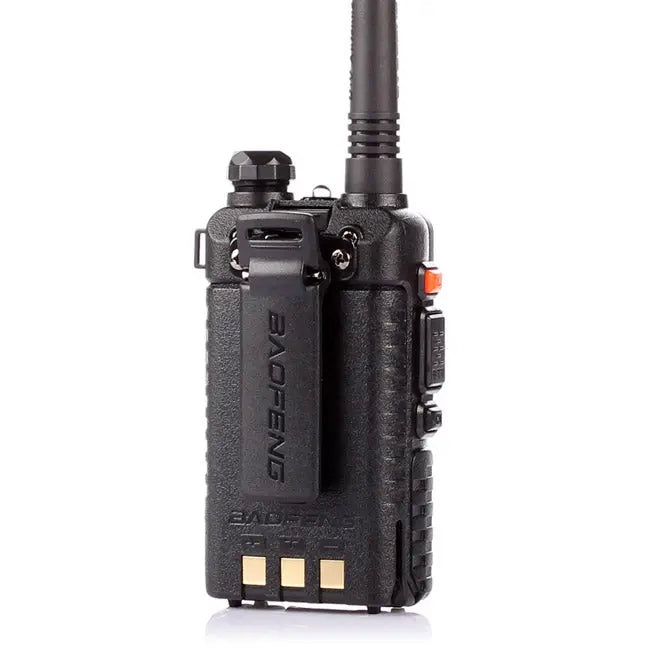

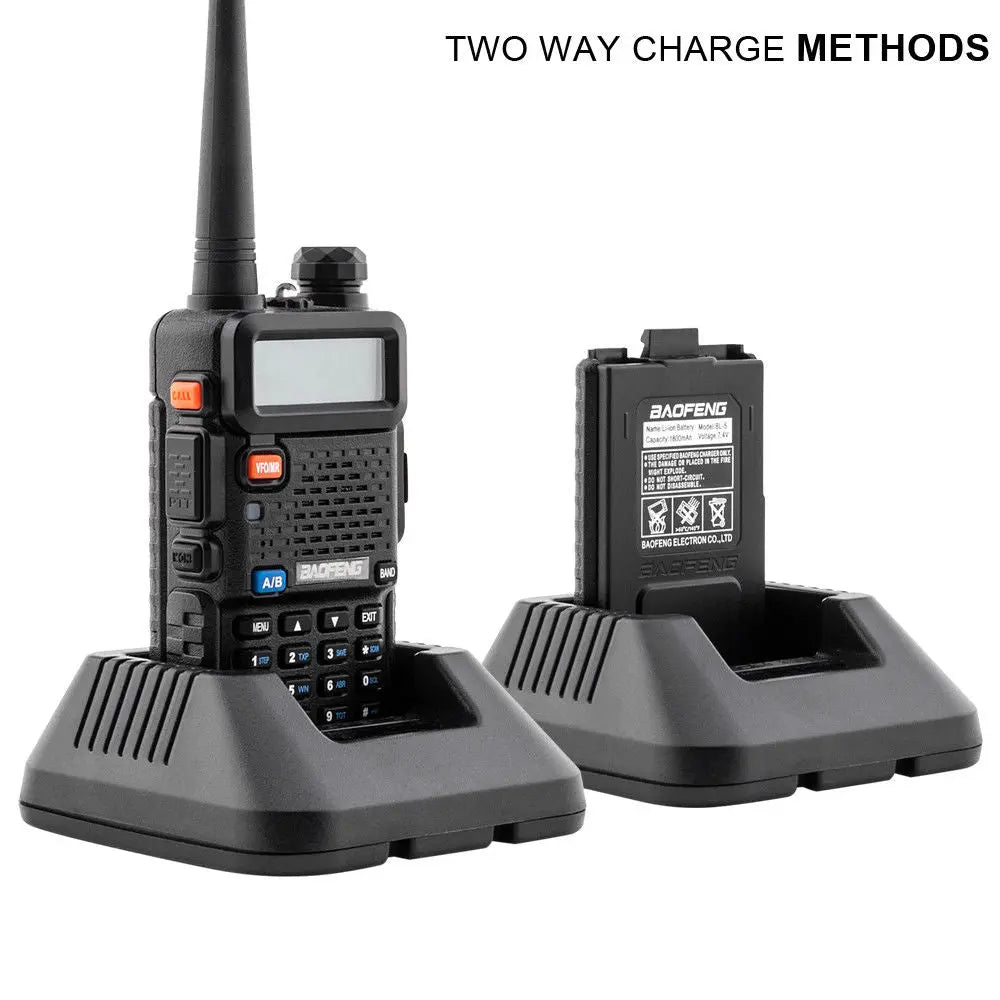

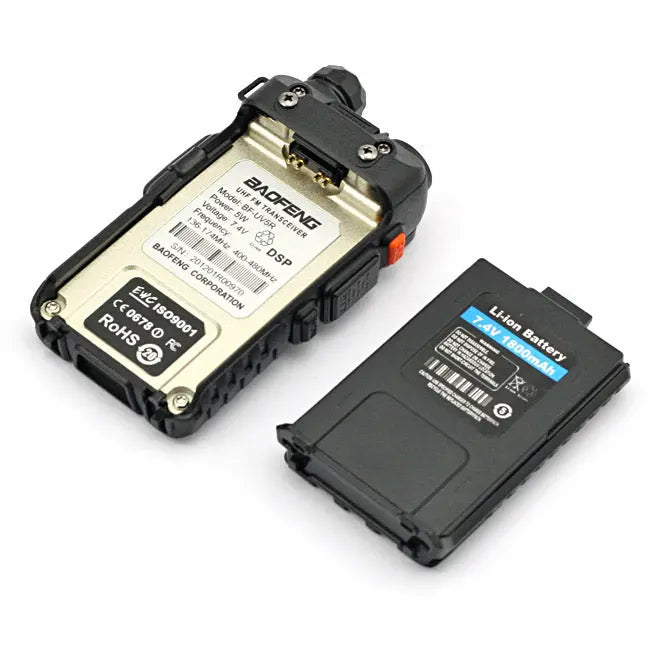

▶ Key features include selectable wide/narrow bandwidth, battery save function, VOX, DCS/CTCSS encoding, keypad lock, and a built-in flashlight. Selectable frequency steps include 2.5, 5, 6.25, 10, 12.5, and 25 kHz. Comes complete with an ANT5 SMA-J flexible antenna, BL-5 Li-ion battery (7.4V 1800 mAh), belt clip, wrist strap, AC adapter, and drop-in charging tray.

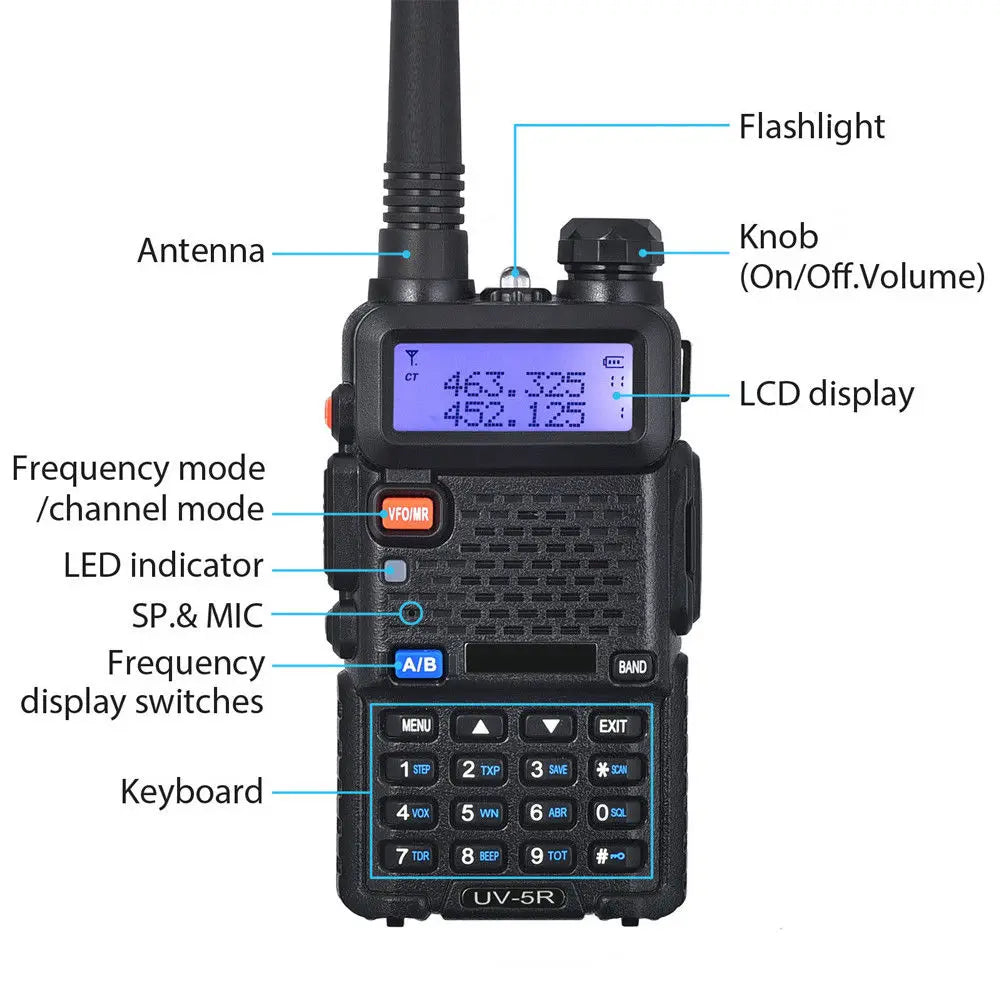

Functions:

1. Frequency Range: 136-174 MHz, 400-520 MHz (TX) | 144-148, 136-174 MHz, 400-480 MHz (RX)
2. Dual-Band Display, Dual Freq. Display, Dual-Standby
3. Output Power: 4W / 1W
4. 128 Channels, 50 CTCSS and 104 DCS
5. Built-in VOX Function
6. 1750Hz Burst Tone
7. FM Radio (65.0MHz - 108.0MHz)

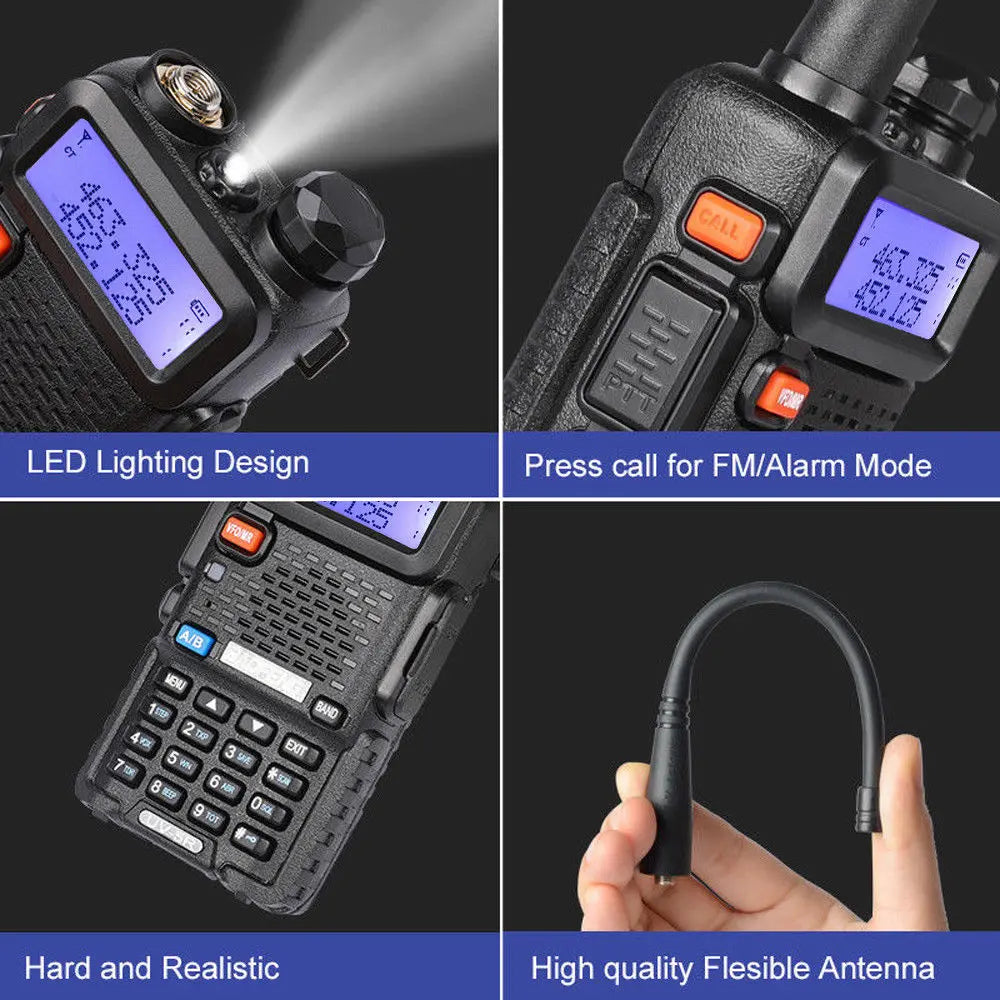

8. LED Flashlight
9. Large LCD Display
10. High / Low RF Power Switchable
11. 25KHz / 12.5KHz Switchable
12. Emergency Alert
13. Low Battery Alert
14. Battery Saver
15. Time-out Timer
16. Keypad Lock
17. Monitor Channel
18. Channel Step: 2.5/5/6.25/10/12.5/25KHz
19. ROGER SET

Specifications:

• Output: 4W / 1W
• Channel: 128
• Frequency Stability: ± 2.5ppm
• Antenna: Dual-band High Gain Antenna
• Antenna Impedance: 50Ω
• Operating Voltage: DC 7.4V
• Bandwidth: Wide / Narrow (25kHz / 12.5kHz)
• Weight: 500g (including battery & antenna)

Note:

Antenna Type: Compatible with SMA-Female Antenna

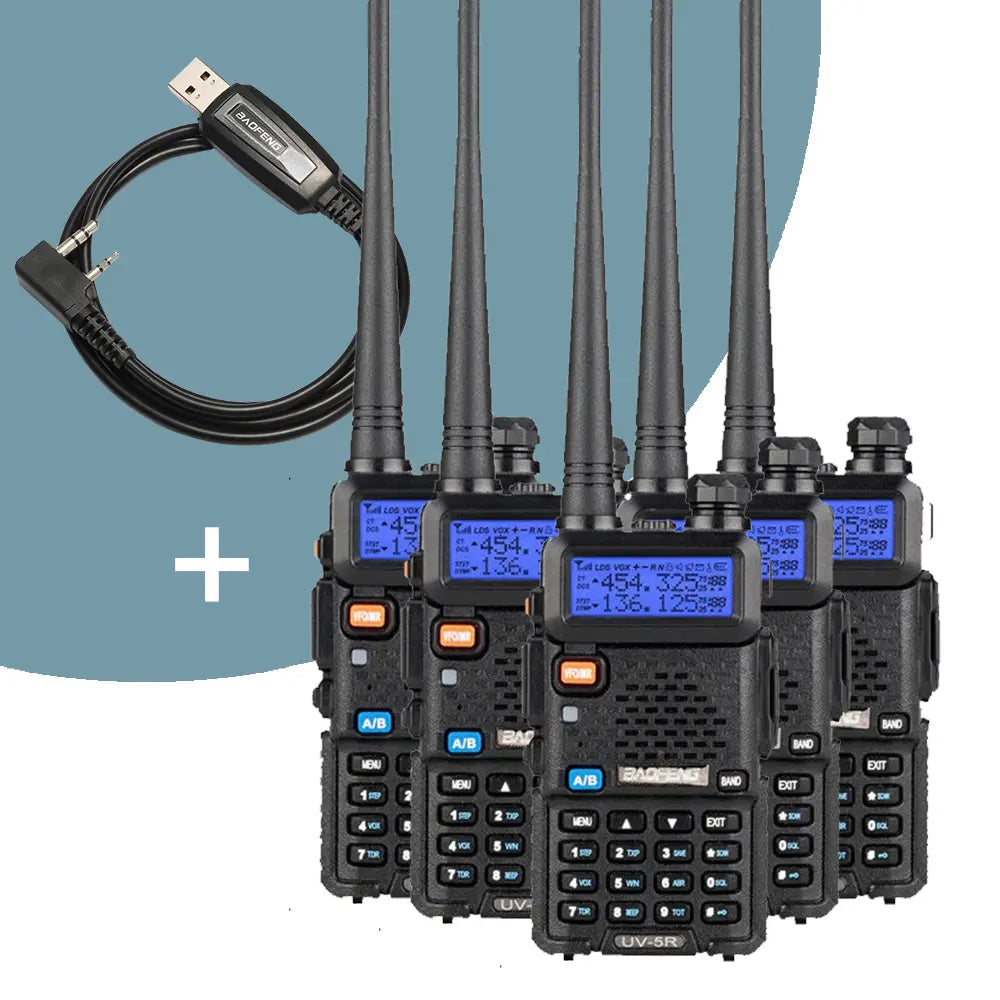

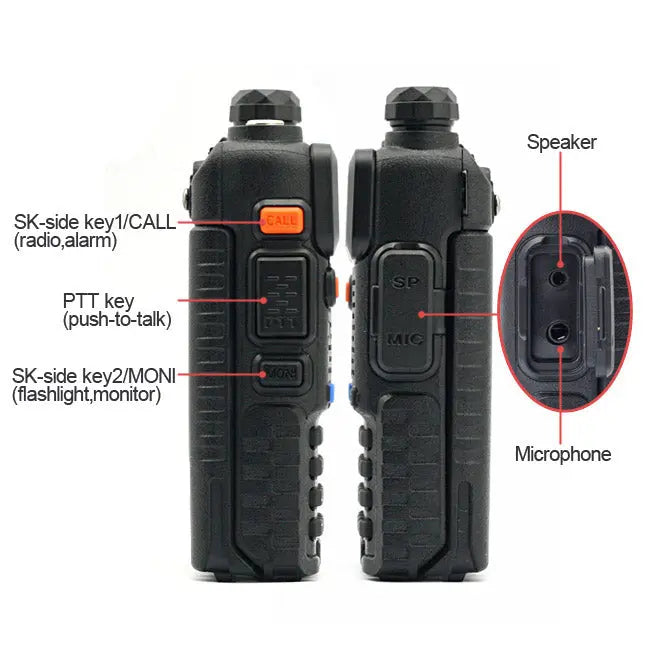

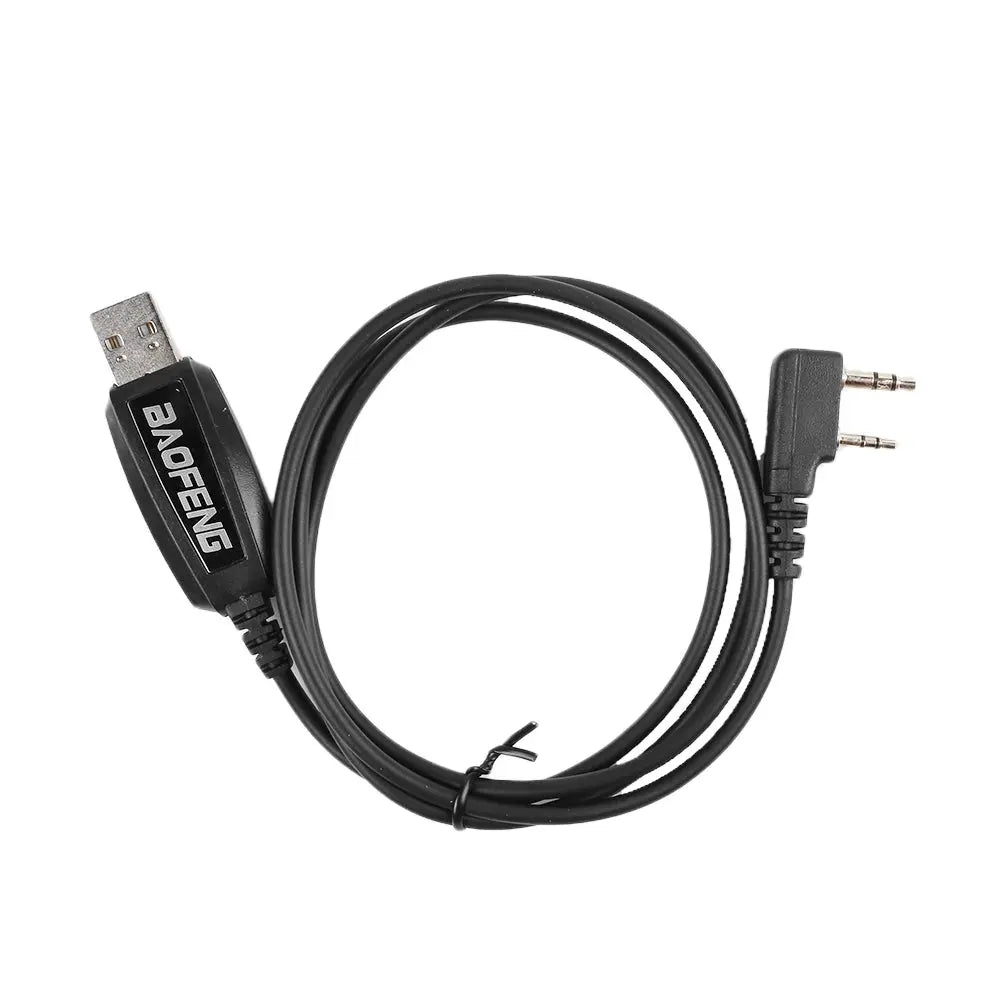

Earpiece & Programming Type: Compatible with K-plug earpiece / programming cable
