BAOFENG UV-5RE 5Watt UHF/VHF Radio

SKU: 28-020-164

Out of stock

$29.99

Quantity 1PCS 2PCS 5PCS 10PCS 20PCS

Plug US Only

FCC ID: 2AJGM-UV5R
The Baofeng UV-5RE is a compact handheld radio scanner transceiver providing 4 watts in the frequency range of 136-174/400-480 MHz. It is a compact, economical HT that includes a special VHF receive band from 65-108 MHz which includes the regular FM, broadcast band. Dual watch and dual reception are supported.

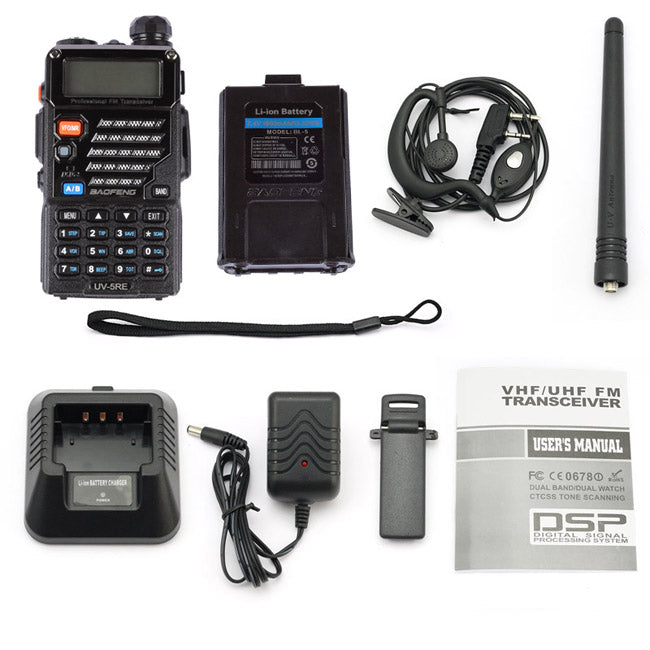

Other features include: selectable wide/narrow, battery save function, VOX, DCS/CTCSS encode, key lock, and a built-in flashlight. Selectable frequency steps include: 2.5, 5, 6.25, 10, 12.5 and 25 kHz. omes with ANT5 SMA-J flexible antenna, BL-5 Li-ion battery (7.4V 1800 mAh), belt clip, wrist strap, AC adapter, and drop-in charging tray.
Dual PTT keys; A/B band independent operation.
Upgrade the frame material. Metallic, more durable, and more fashionable.

Details

What's in the Box

Compare Chart

Review

[Specification]

Frequency Range: VHF 144-148MHz & UHF 420-450MHz

Memory Channel: Up to 128 channels

Frequency Stability: 2. 5ppm

Frequency Step: 2. 5/5/6. 25/10/12. 5/20/25kHz

Antenna Impedance: 50 Ohm

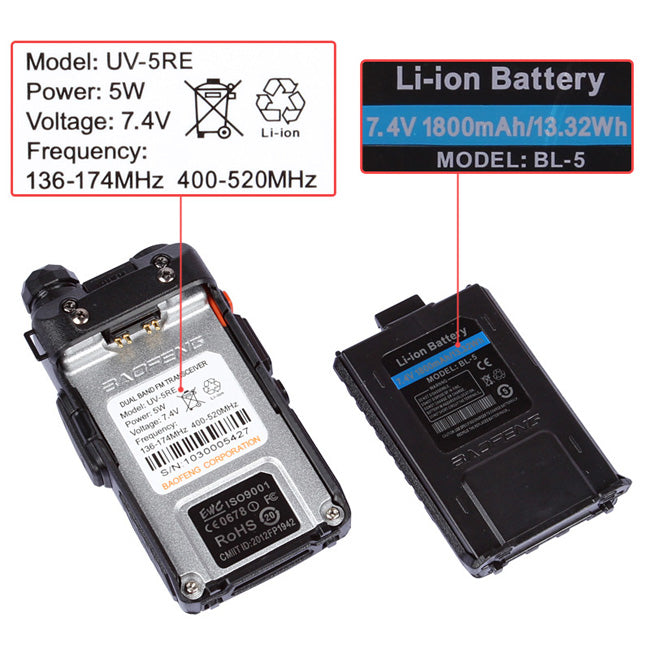

Supply Voltage: Rechargeable Lithium-Ion 7. 4V/1800mAh

Consumption in Standby: 380mA

Consumption in Transmission: ≤1. 4A

Mode of Operation： Simple or semi-duplex

Duty cycle: 03/03/54 min (Rx/Tx Standby)

Transmitter: RF power: 4W / 1W

Type of Modulation: FM

Modulation Mode: 16kF3E / 11kF3E(W/N)

Maximum Deviation: ≤5kHz / ≤2. 5kHz(W/N)

Receiver Sensitivity: 0. 2uV(at 12dB SINAD)

Intermodulation: 60dB. Audio Output: 1000mW

Adjacent Channel Selectivity: 65/60dB
